Order details
Order code
(1)
Basic type
604514
Hot air thermostat, WTHc series
(2)
Basic type extensions
2280
WTHc-2280
Temperature controller TR and temperature monitor TW with changeover contact,
safety temperature limiter STB with N/C contact, and restart lock
2240
WTHc-2240
Temperature controller TR and temperature monitor TW with changeover contact,
safety temperature limiter STB with N/C contact, restart lock, and additional signal
contact (only with extra code "574")
(3)
Design type
1
With support tube (with capillary)
2
Without support tube (with capillary)
(4)
Control / limit value range, temperature controller
a
a
Other control / limit ranges upon request
040
+20 to +80 °C
(5)
Control / limit value range, temperature controller
a
070
+70 to +90 °C
(6)
Limit value, safety temperature limiter
a
10
+100 °C
(7)
Capillery length
0
Design type 01 (with capillary)
1250
1250 mm
(only capillary without support tube)
....
(Special length, specification in mm, max. 5000 mm)
(8)

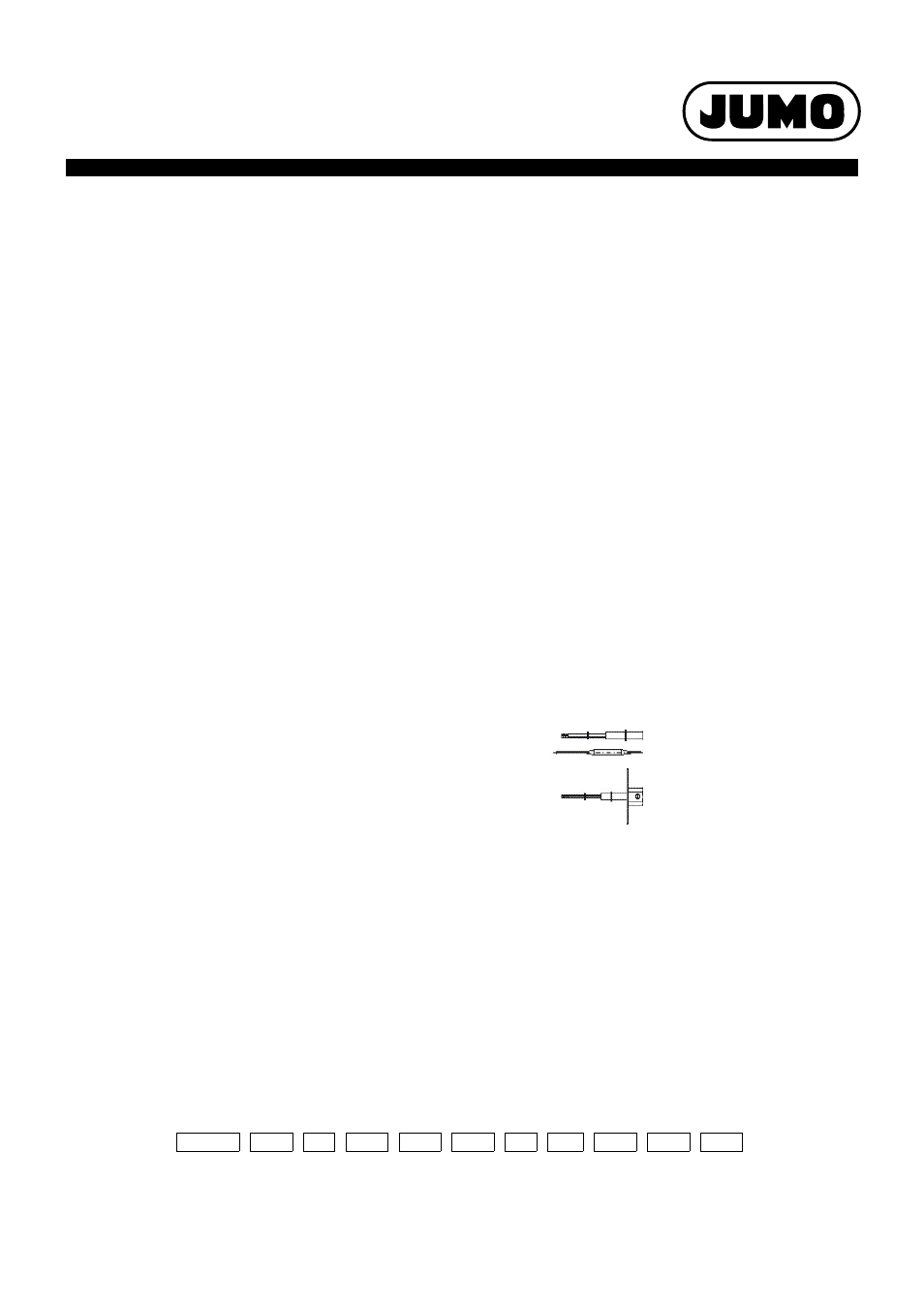

Process connection (PA)
00
Switching head mounting "711", design type 01
10
Plain cylindrical probe (only for design type 02)
26
Protection tube with flange, open
(9)
Fitting length
000
With capillary
350
350 mm (support tube with capillary)
(10)
Probe diameter
∅
4
4 mm
(11)
Extra codes
000
Without extra codes
574
Microswitch with N/C contact,
restart lock, and additional signal contacts (only for STB)
402
Protection type IP 54: dust and splash-water-proof case
711
Switching head is mountet by 2 screws through the bottem section of the case
764
Mounting flange made of CUZn
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
Order code
605414
/
-
-
-
-
-
-
-
-
/
,
...
Order example
604514
/ 2240
-
1
-
040
-
070
-
100
-
0
-
26
-
350
-
4
/ 000
a
a
List extra codes in sequence, separated by commas.
,
...
