Data Sheet 604514 Page 4/5
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
E-mail: [email protected]
Internet: www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail: [email protected]
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax: 315-437-5860
E-mail: [email protected]
Internet: www.jumousa.com

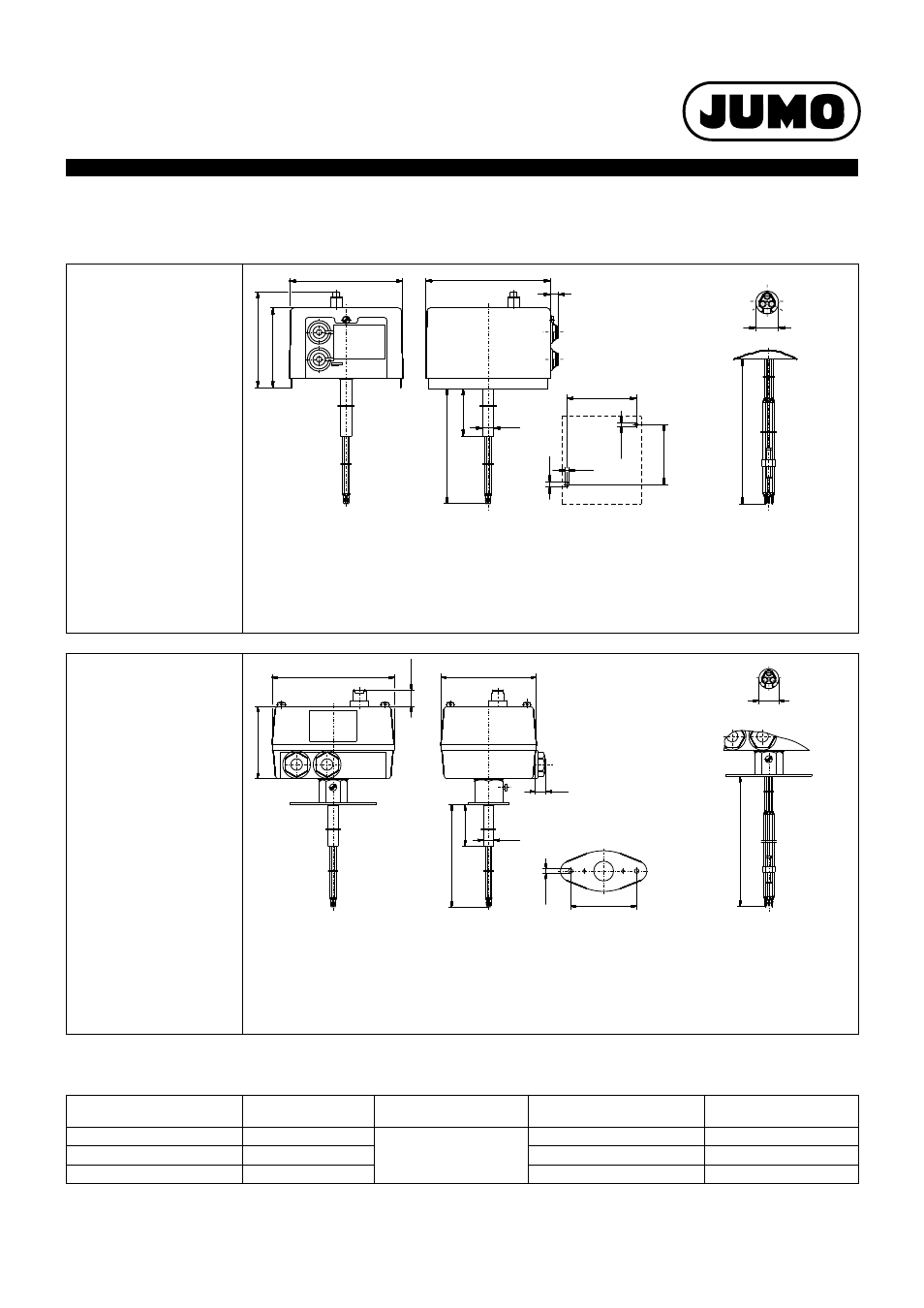

Dimensions
Stock versions
WTHc-2280
WTHc-2240/U
Protection type IP 40
Drilling plan View 10
Design "1"
with support tube,
switching head is mounted with 2
screws through the case bottom
part, extra code "711"
Design "2"
without support flange,
switching head is mounted
with 2 screws through the
case bottom part, extra code
"711" with capillary, process
connection "10"
WTHc-2280-SW
WTHc-2240/U/SW
Protection type IP 54
Drilling plan View 10
Design "1"
with support tube,
process connection "26",
mounting flange with support
tube
Design "2"
without support tube,
switching head is mounted by
using a mounting flange made
of CuZn, extra code "764"
with capillary, process con-
nection "10"
Part no. Type Control range °C Capillary including probe
mm Installation length mm
60002161 WTHc-2280 TR = +20 to +80 - - 350
60002162 WTHc-2280 TW = +70 to +90 1250 - -
60002658 WTHc-2280-SW STB = +100 fix - - 320
(Delivery within 3 working days after receipt of order)
101
71 ~
85
4.5
74
86
Ш4.5
6.5
Ш10
220
111
8
Ш15
350
+0 -40
1250
+100 -20
65
120
71
16.5
Ш4.5
94
Ш15
350
+0 -40
200 Ш10
1250
+100 -20
10
