Wiring diagrams

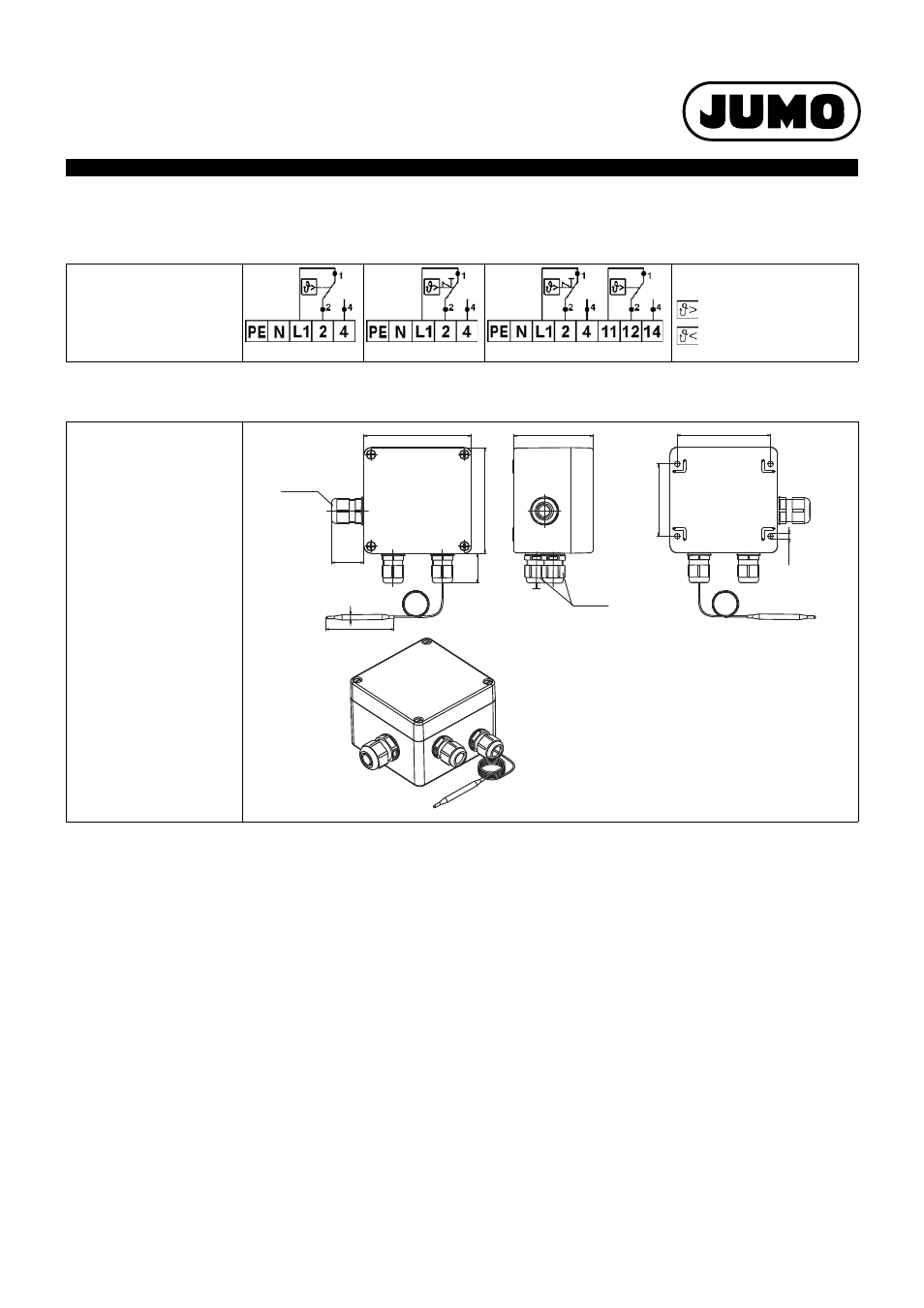

Dimensions
JUMO exTHERM-AT
= upward adjustment
= downward adjustment
TW / STW STB STB TW STW
JUMO exTHERM-AT
(Examples)
Single thermostat
122
120
34
L
37
90 106
82
6,3
Ø
d
M 25 x 1,5
M 20 x 1,5
