Data Sheet 705001 Page 6/10

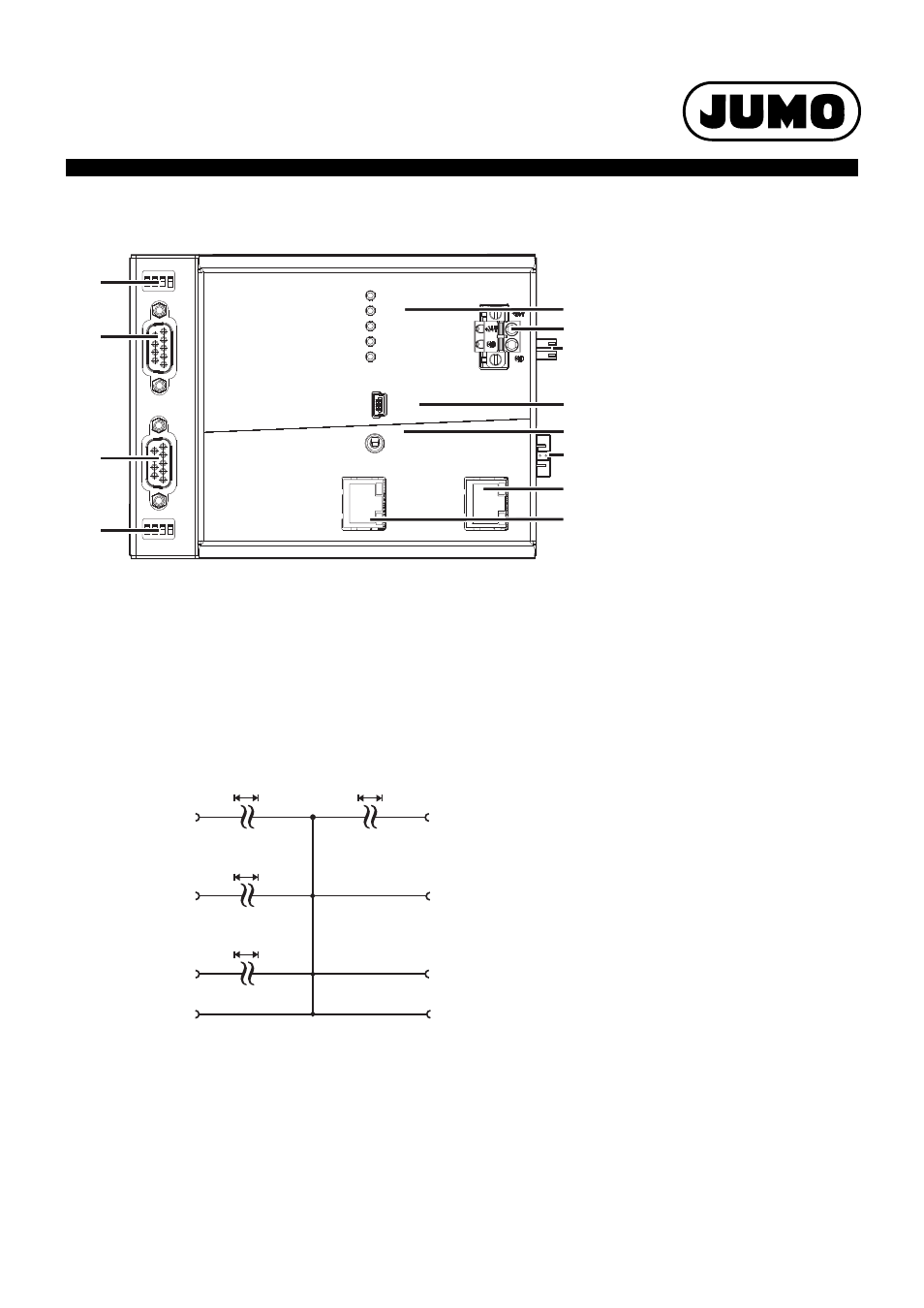

Display, operating, and connection elements
Setup
LAN Bus Out
Run
Stop
Reset
Power
Status
Bus Error
Com1
Com2
Com2
2 1 3 4
ON
2 1 3 4
ON
Com1
(1)
(2)
(3)
(4)
(11)
(5)
(7)
(8)
(10)
(6)
(9)
(12)
(1) Status displays (LED)
(2) Voltage supply In, DC 24 V
(3) Voltage supply Out, DC 24 V
(4) USB device interface (setup)
(5) Switch/push-button for Run, Stop, or
Reset
(6) Side system bus Out
(7) System bus Out
(8) LAN interface (Ethernet)
(9) Termination resistors Com2
(10) Interface Com2
(11) Interface Com1
(12) Termination resistors Com1
Electrical isolation
Interface Com1
System bus Out Side system bus Out
DC 1500 V
USB device interface
(setup)
Interface Com2
LAN
DC 1500 V
AC 30 V
DC 50 V
AC 30 V
DC 50 V
Voltage supply Out Voltage supply In
