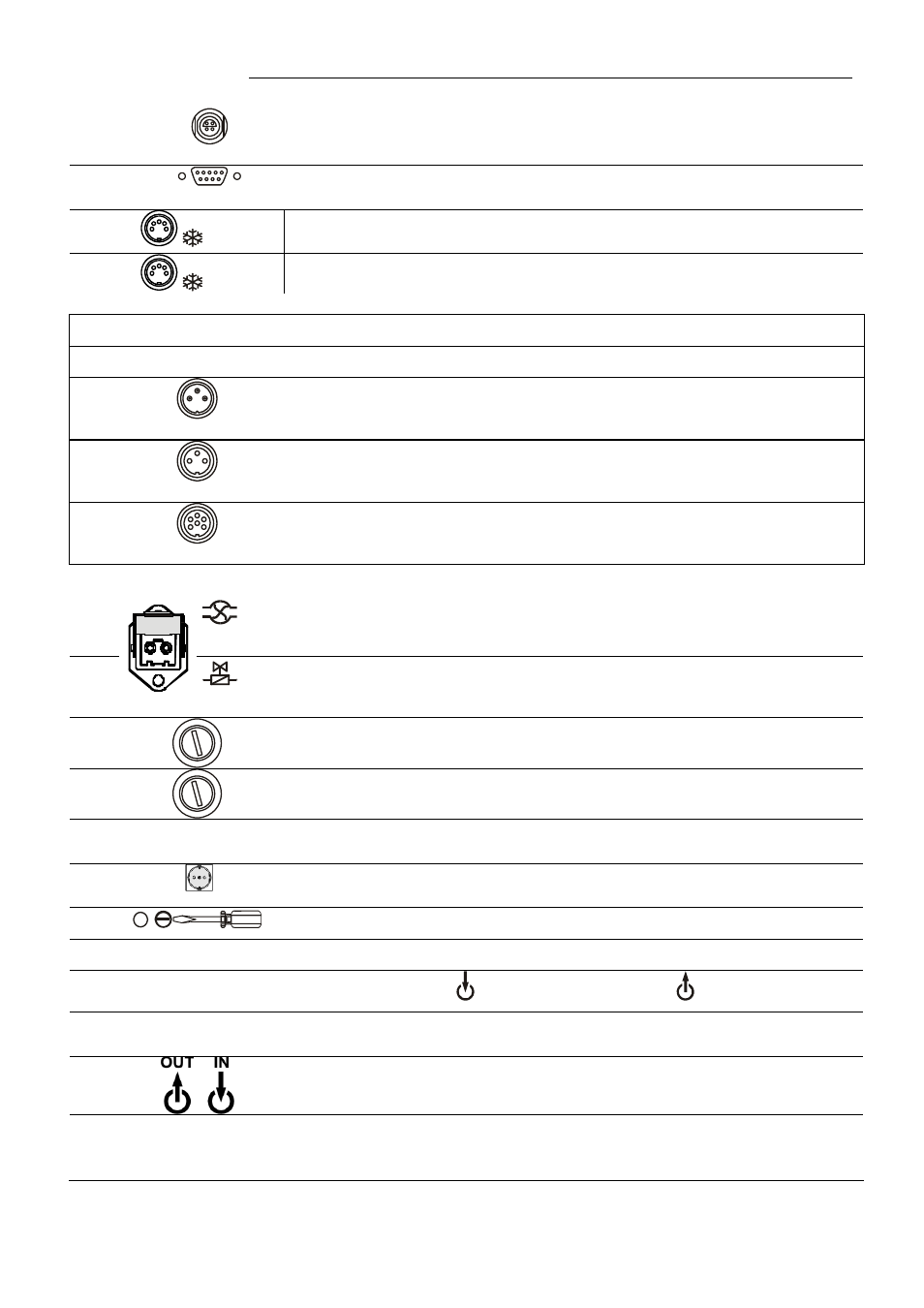

SL

25


7

ext Pt100

Socket for external measurement and control sensor

or external setpoint programming

8

SERIAL

Interface RS232 / RS485: remote control via personal computer

9
9a

Control cable of JULABO refrigerated circulator
Socket: output for alarm messages

9b

Socket:

Option: Electronic module

Order No. 8 900 100

The circulator automatically recognizes the connected electronic module.

10

ALARM

Alarm output (for external alarm signal)

11

STAND-BY

Standby input (for external emergency switch-off)

12

REG+E-PROG

Programmer input and temperature recorder output

13

Connector for supplementary pump or solenoid valve

230 V / max. 1.25 A

No control voltage in the -OFF- condition

14

Connector solenoid valve

1. No control voltage in the -OFF- condition

2. Configurable

(Refer to page 74)


15


Fuses (for connectors 13, 14), T1.25A

16

Mains fuses, T16A

17a
17b

Mains power cable with plug for circulator
Mains power cable with plug cooling machine

18

Built-in mains outlet for connection of circulator (230 V / 16 A)
Not on - FPW91-SL - 230 V/3PPE/60 Hz

19

Drain screw with drain connection

20

Venting grid, removable

21
22

Pump connections

suction pump

pressure pump

23

Castor with brake (at the front)
Castor without brake (at the back)

24

Kühlwasseranschlüsse für FW Kältethermostate

25

Built-in mains outlet for connection of HST booster heater
Not on - FPW91-SL - 230 V/3PPE/60 Hz
and Special units with bath opening
