Operating controls and functional elements

22

4.

Operating controls and functional elements

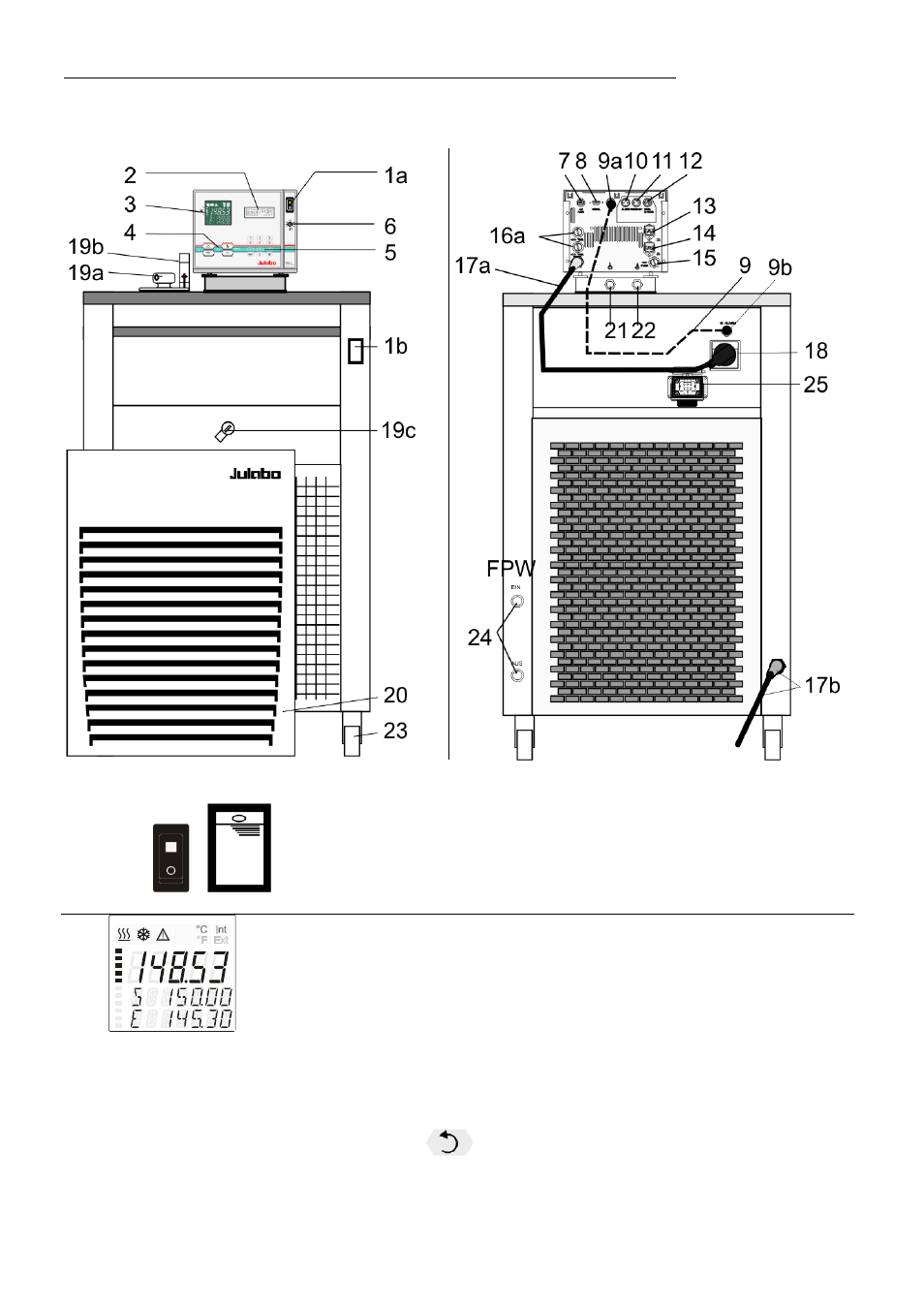

Front view

Rear view



1a

1b

Mains power switch, illuminated for circulator

Mains power switch, illuminated for cooling machine

2

VFD COMFORT-DISPLAY
Header: Control indicators
Line 1: Actual value

internal or external

The display is depending on the selected control mode in the

menu > Control < (internal or external).

Line 2: Working temp. setpoint, constantly S xxx.xx
Line 3: Actual value (E = external or I = internal)

Alternating with the display in line 1

Use the keys

to indicate further values in line 3

PI

Capacity in % - with manipulated variable set to >control<*

PS Capacity in % - with manipulated variable set to >serial<* or
