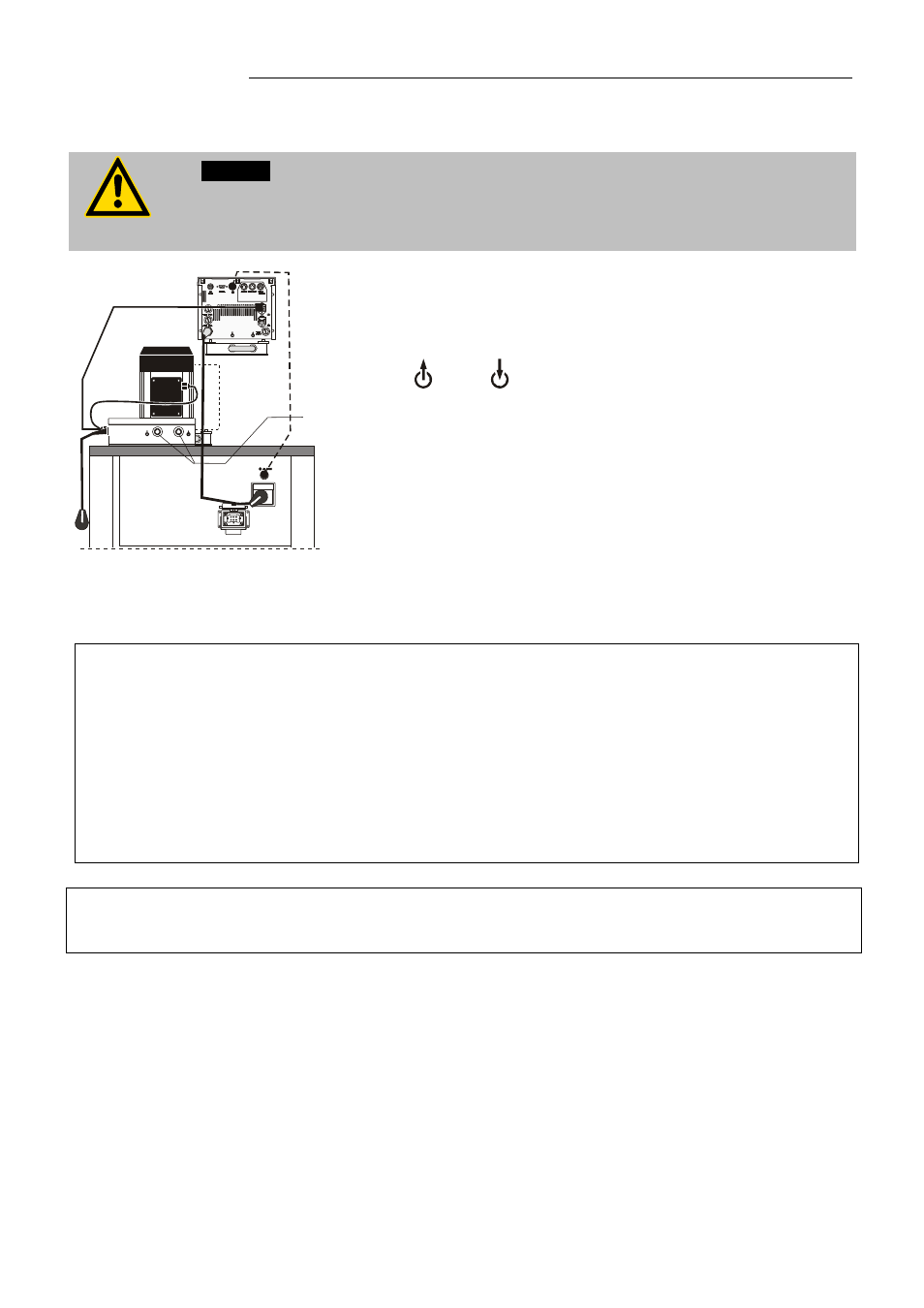

17.1. Pump connection with HSP booster pump
Caution: Securely attach all tubing to prevent slipping.
Important:
:
If an HSP booster pump is used, the pump connections (21, 22) cannot be used any
more They have to be closed tightly with union nuts with inserted blind sieves.
1 3 2
5 6 4
IN OUT
43
Pump connectors (43) M16x1:
• Unscrew the M 16 x 1 collar nuts on the pump connectors (43)
(feed , return ) with a 19 mm (3/4") wrench and remove the
sealing disks.
• Attach the tubing to the connectors of the external open system
and fasten with tube clamps to prevent slipping.
17.2. Technical specifications - HSP booster pump
Pressure, max.
Psi / bar at 0 liters 55 / 3.8 43.5 / 3.0
Discharge, max. lpm at 0 bar 36 30
with tubing connections mm ID 13.5 13.5
Mains power connection ±10 % V/ Hz 230/60 230/50
Current input (at 230 V) A 4 4
Total power consumption W 920 920
Weight kg 15.5 15.5
Cooling capacity using a HSP booster pump:
If a HSP booster pump is used, the ultra-low refrigerated circulators do not reach the specified lowest
bath temperature because the pump dissipates frictional heat of approx. 400 W to the bath fluid.
