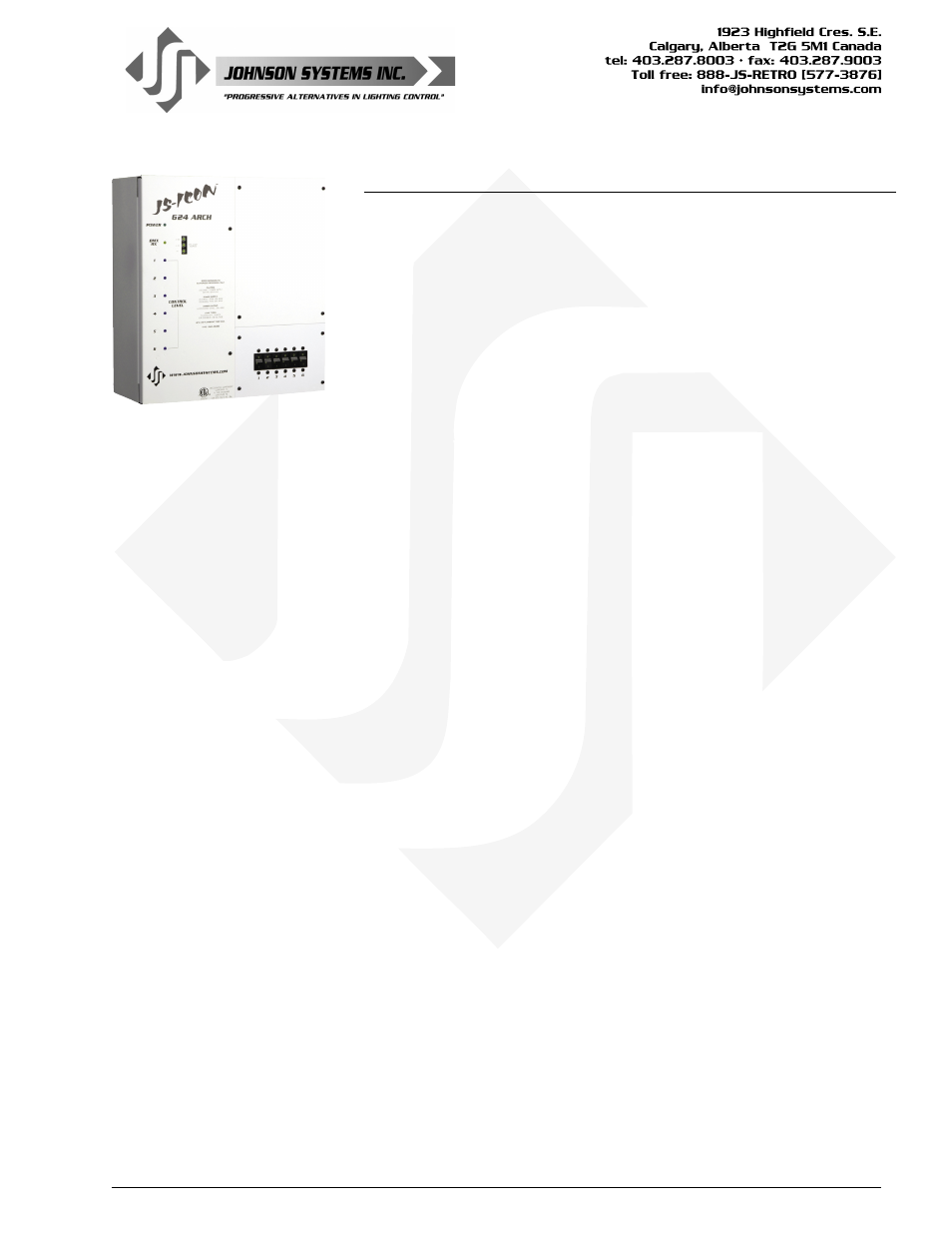

Introduction
JS-ICON ™ Architectural Dimmers represent performance and
longevity at its finest! 16-bit high resolution fades provide smooth light
control for the most demanding environment.
Suitable for virtually any application where centralized dimmers are
required, this rugged hi-density design allows for adjacent side-by-
side installation where additional dimming capacity is needed. Large
power input terminals permit feeder power up to 40 Amps at 120/208
Volt three-phase or 60 Amps at 120/240 Volt single-phase.
Premium quality magnetic load breakers permit full loading of each
circuit individually. Hinged control section access allows for ease of
data and/or analog control termination. Quiet hi-performance chokes
and “MagLev®” thermal management technology for superior cooling
that is virtually silent. All electronics are easily and remotely monitored
with intuitive status LED’s. Wireless DMX receiver optional.
• Six 2400 Watt hi-performance dimmers.
• Dims standard incandescent, quartz, and low-voltage fixtures.
• Superior 16-bit fade resolution provides unmatched performance.
• Both DMX 512 and individual analog control inputs.
• Optional wireless DMX receiver eliminates control wiring.
• Status LED’s allow easy remote setup and troubleshooting.
• Magnetic breakers for maximum circuit protection.
• Over-heat and over-current protected.
• Non-proprietary dimmer SCR’s are 200% rated.
• ‘MagLev®’ thermal management technology for superior cooling
that is virtually silent.
• Hinged SCR and data section for serviceability.
• Separate high voltage “contractor termination section”.
