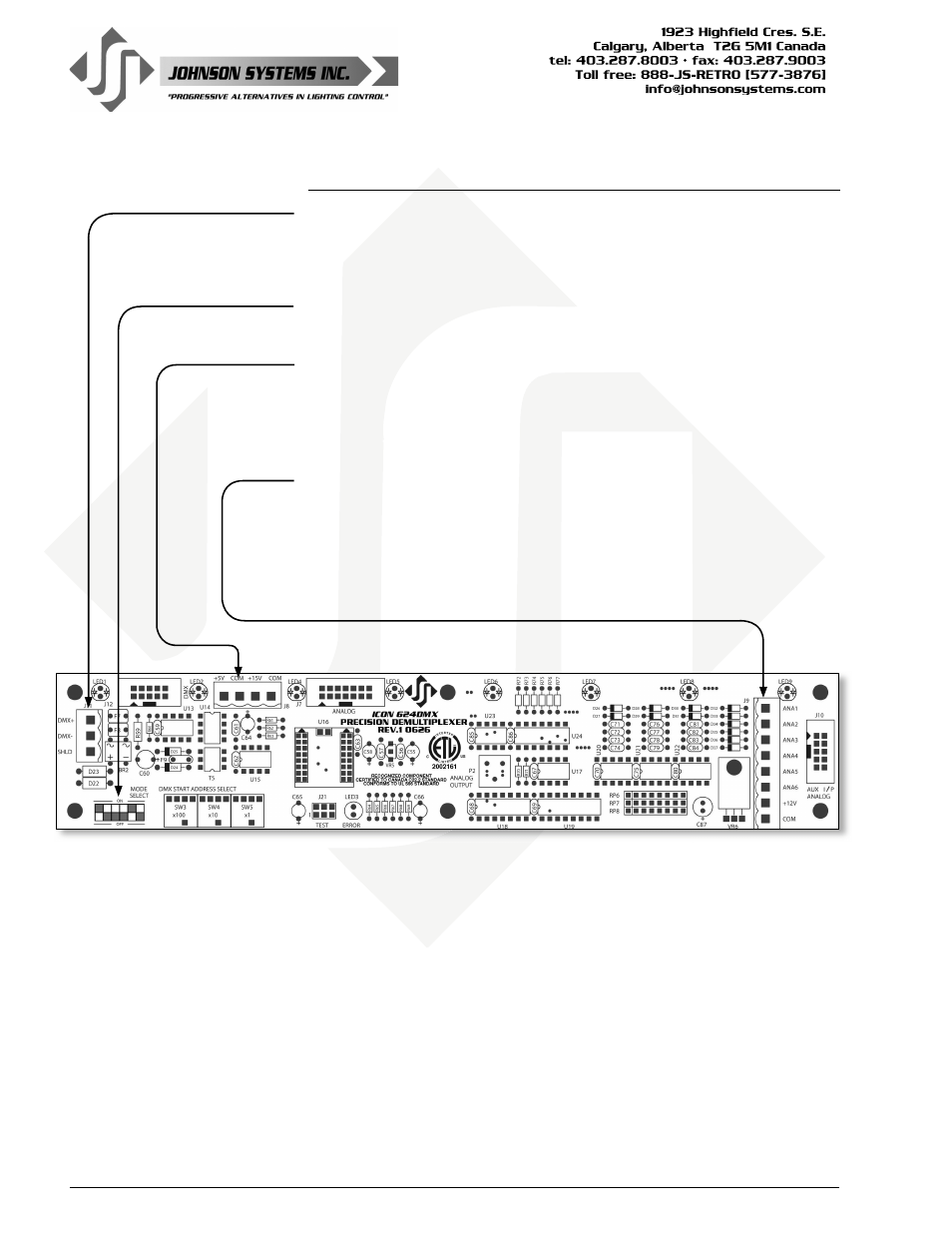

Precision Demultiplexer Printed Circuit Board
DMX INPUT/THRU Connection (J11)
This internal DMX connection may be used alternatively to the external
5-Pin XLR connectors. It is also the location used for connection of the
wireless DMX receiver option.
MODE SELECT DIP SWITCHES
Provides system confi guration options (see page 10 for details).
+5VDC and +15VDC Power Supply Output Connection (J8)
This connection supplies power for external devices. The +5VDC supply
is normally used for powering the wireless DMX receiver option, while the
+15VDC supply may be used for other external devices. External devices
should not exceed the maximum combined current draw of 200mA.
0-10VDC Analog Inputs with +12VDC Power Supply (J9)
This connection is the location to land the 0-10VDC analog inputs.
“ANA1” through “ANA6” controls dimmer 1 through dimmer 6 respectively.
This connection also provides a +12VDC power supply normally used for
powering external analog devices. External devices should not exceed the
maximum combined current draw of 200mA.
