HD-TG Operation Guide
1 www.intelix.com
HD-TG HDMI Test Generator Operation Guide
The Intelix HD-TG is an HDMI/DVI-D test generator designed to provide the ability to verify the proper operation of HDMI and
DVI-D display devices, such as monitors and projectors. The HD-TG allows any device with an HDMI input (or DVI-D with an
optional adapter cable) to be tested with various test signals. The HD-TG is designed to test embedded audio, both internally
and externally generated. In addition, the HD-TG tests HDCP functionality, allowing the user to verify proper operation of the
video, audio, and security functions of an HDMI display.
Notice:
Do not attempt to disassemble or alter the test generator housing. There are no user-serviceable parts inside the unit.
Doing so will void your warranty.

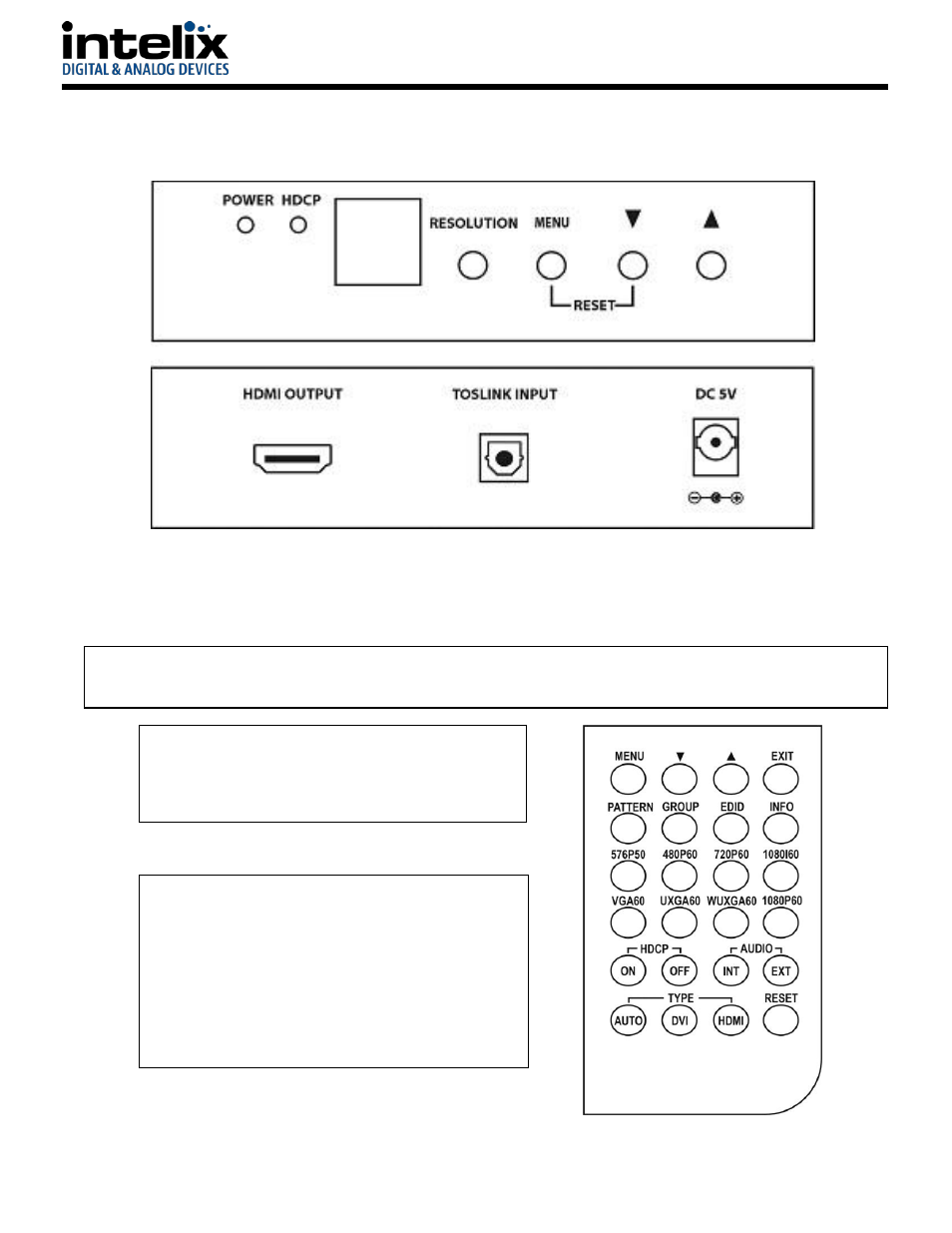

Connecting the HD-TG to a Display Device
Connect the display device’s HDMI input to the output of
the HD-TG and connect the display device’s optical audio
output (if desired) to the HD-TG’s S/PDIF toslink input.
Operating the HD-TG HDMI Test Generator
The HD-TG can be operated from the front panel or the
included IR remote. The on screen display has a menu
that allows the operator to select the various test signals
and functions of the HD-TG. The IR remote has the same
functions as the front panel, plus direct access to many
functions in the menu. A line drawing of the remote can
be seen on the right. See page 2 for an explanation of
how to operate the HD-TG using the front panel controls.
