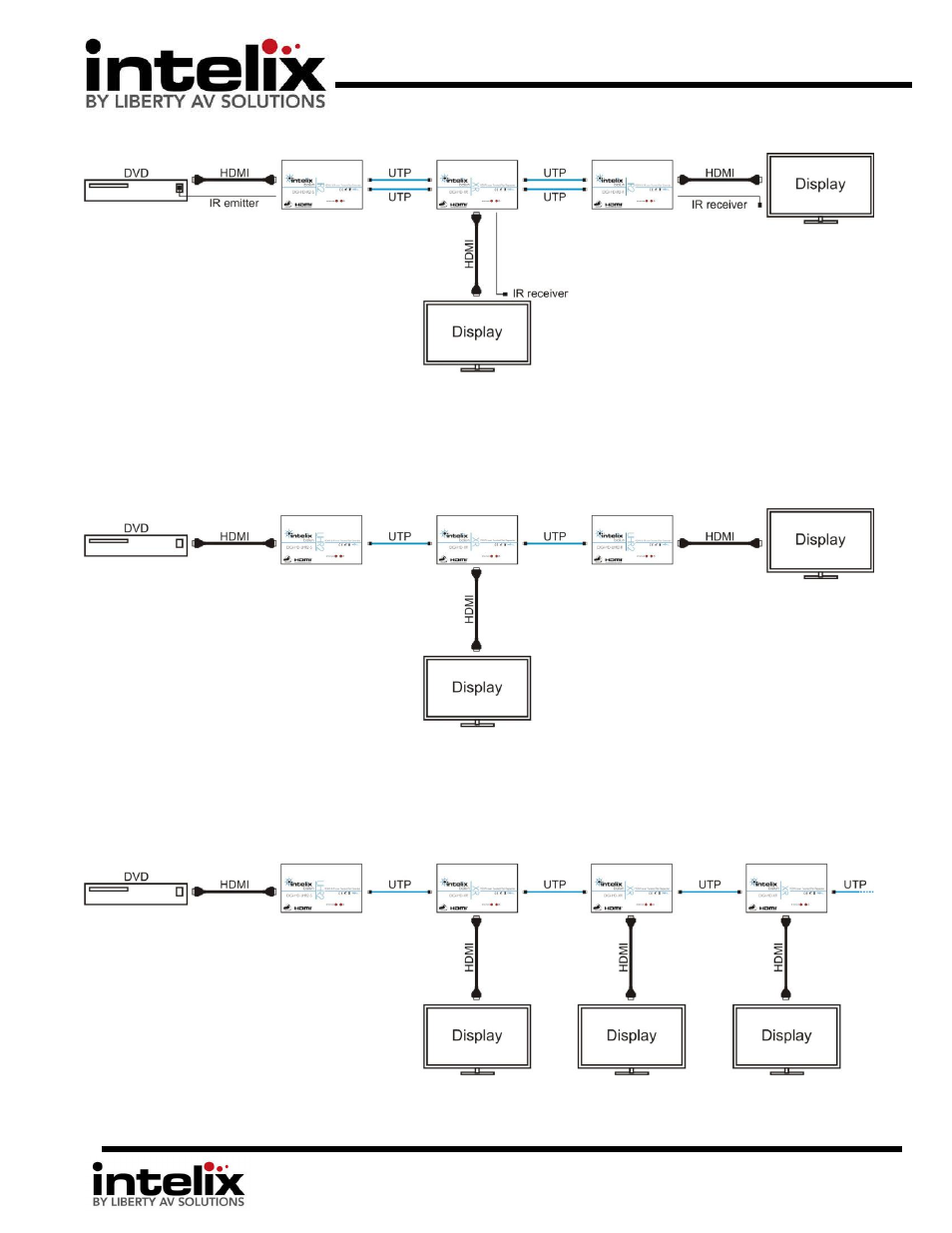

APPLICATION DIAGRAMS
Multiple DIGI-HD-XR units may be connected
for extended distances and additional
destinations.
The DIGI-HD-XR extends HDMI distribution
distances for DIGI-HD-UHR2 extenders.
The DIGI-HD-XR extends HDMI and IR
distribution distances for DIGI-HD-IR2
extenders.
