25
EN
INFICON - Operating Instructions EXTRIMA

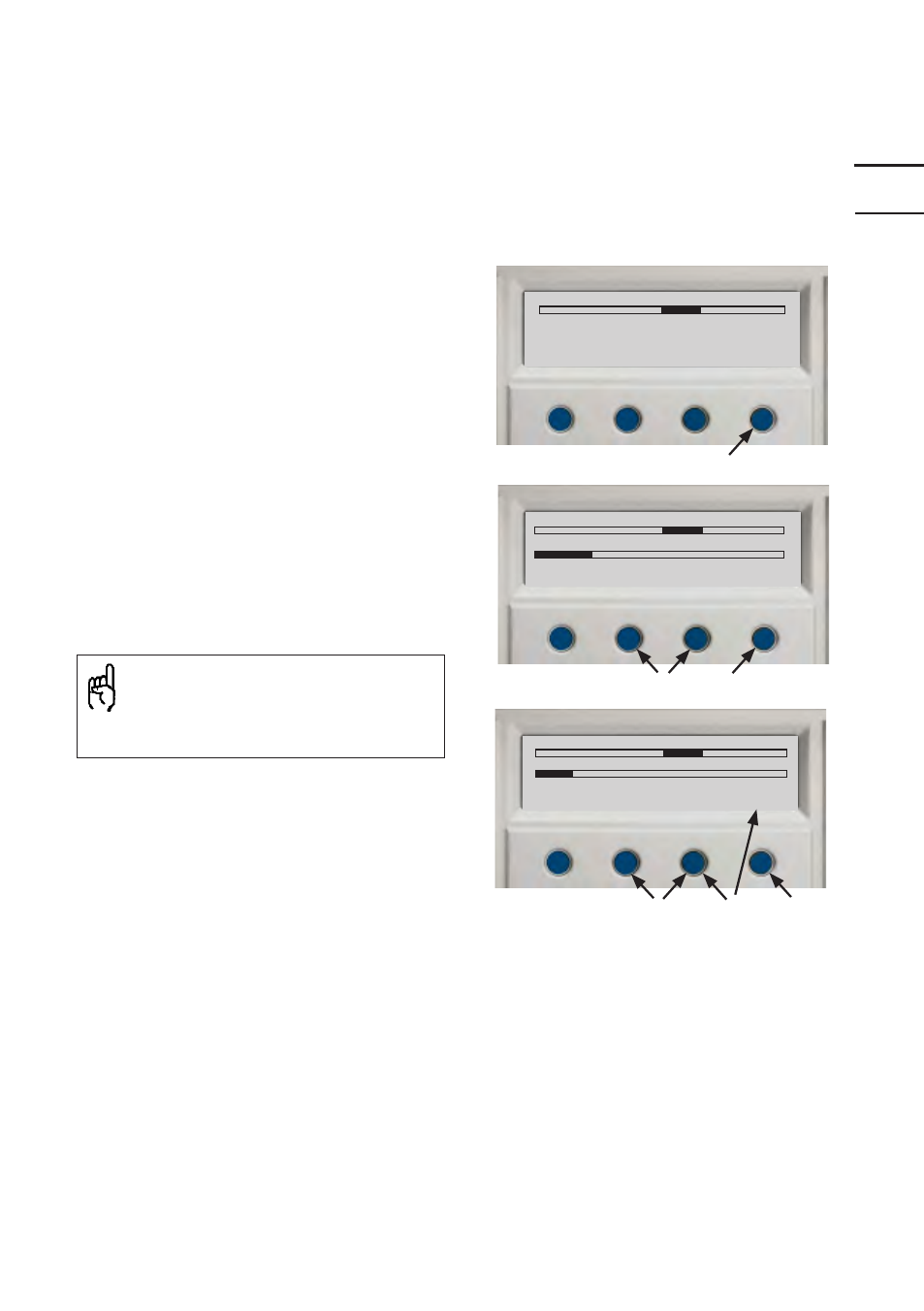

Analysis Mode Settings
Select the main menu Analysis Mode
Settings as described in ”Change Test
Mode” on p. 19.
1. Press Enter.
2. Select:
Leak Alarm Level
Leak Rate Unit
Min Presentation Time
Leak Alarm Indications or
Lowest Frequency
by pressing < and > until you reach
the wanted mode.
3. Press Enter.
4. Adjust the desired parameter using
the + and – buttons or < and > de-
pending on submenu.
5. Save the changed alfanumerical
value (e.g. Leak Alarm Level) by
pressing > to the far right of the set
value. Save will then appear on the
bottom of the screen.
6. Press Save or Enter to save the set
value. The setting scale will flash to
confirm the setting.
NOTE: Press Undo or Esc to de-
lete the setting and revert to the
previous value.
2 3
4 5 6
1
Analysis Mode Settings
Esc < > Enter
Analysis Mode Settings
Leak Alarm Level
Analysis Mode Settings
Leak Alarm Level
Undo + – Save
Set Leak Alarm Level
1 .00E+01
1.00E+01
Esc < > Enter
