To Recall
Panel Operations
VFD Display
1.
To recall saved data, press the Recall key. It will ask for the Recall
Group number.
Recall Group
0
2.
Input the Group number (0-100) you previously saved your
parameters to and press Enter key to recall.
Recall Group
9
Module Controlling Link
There is an 8-pin terminal and current monitoring connector on every module’s rear panel.

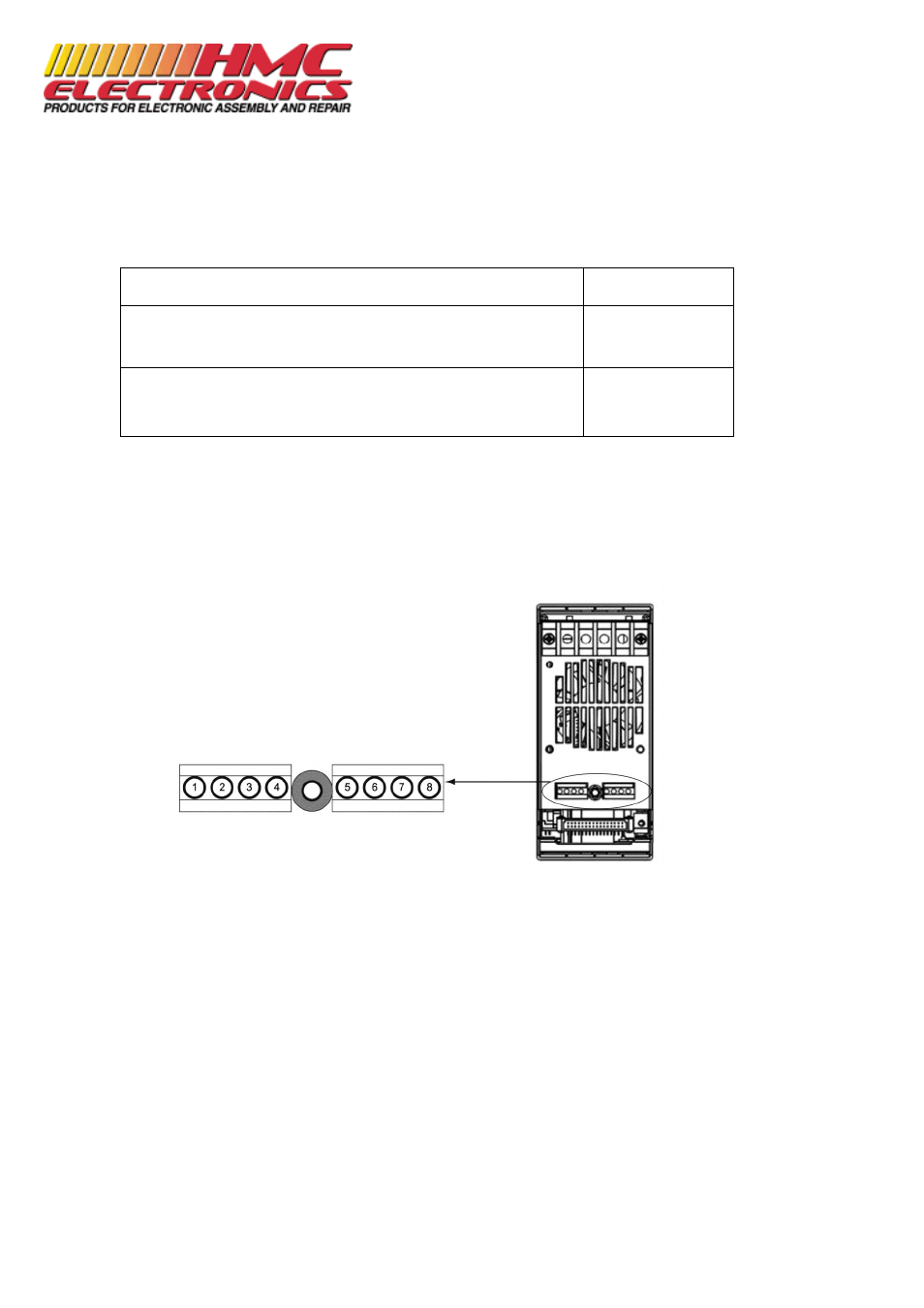

Figure 31 - Terminals on Single-Channel Module Rear Panel
