Mainframe 8-pin Control Connector
The mainframe’s 8-pin control terminal on the rear panel is shown below. This is used for external
trigger and ON/OFF control connections.

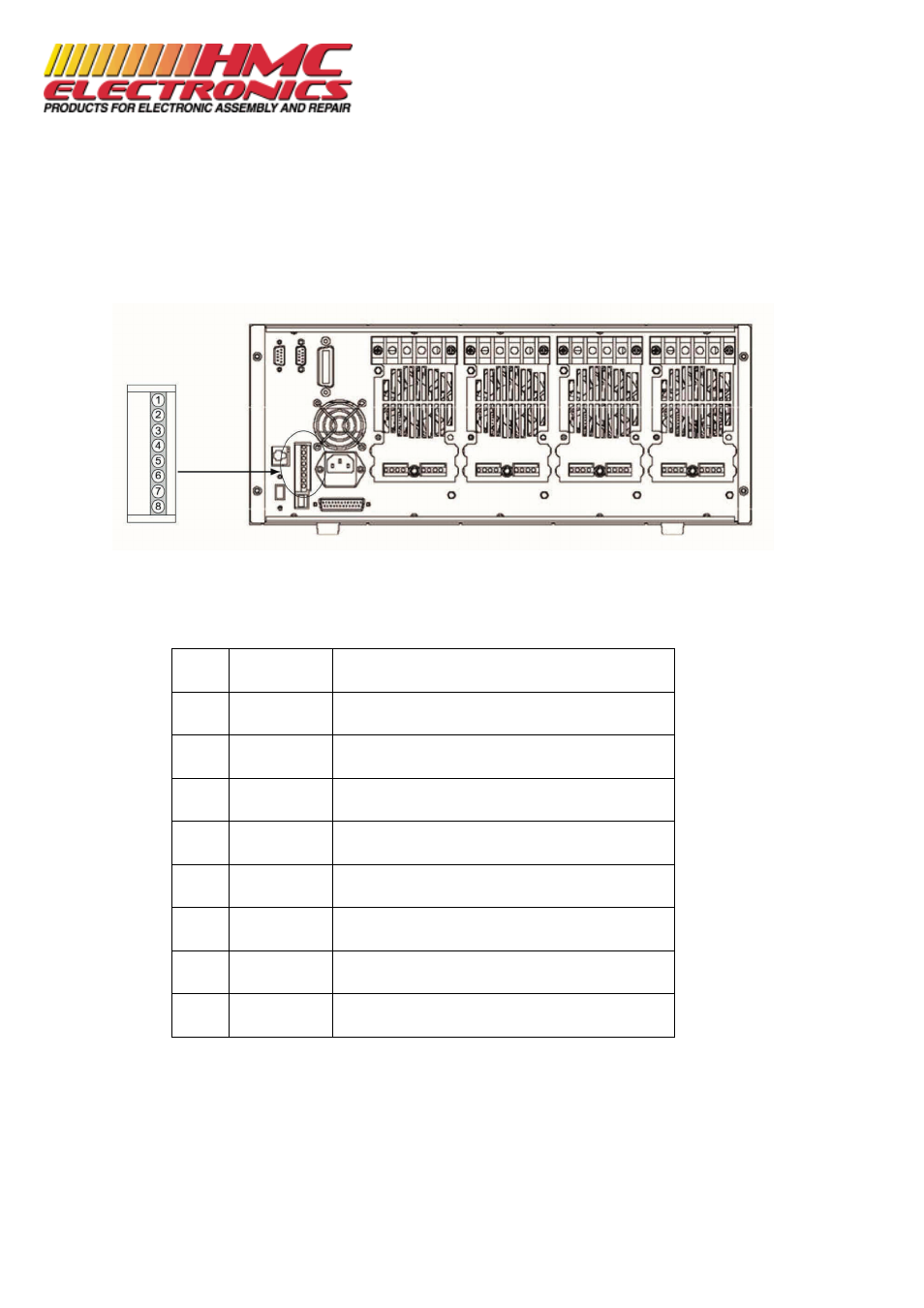

Figure 14 – Mainframe Rear Panel 8-pin Control Connector
Table 2 - Control Connector Pinout
Pin
Signal
Description
1
Trigger IN
Trigger Signal Input
2
Trigger OUT
Trigger Signal Output
3
ON/OFF IN
Synchronization ON/OFF Control Signal Input
4
ON/OFF OUT
Synchronization ON/OFF Signal Output
5
NC
No Connection
6
NC
No Connection
7
GND
Ground
8
GND
Ground
