Rear Panel

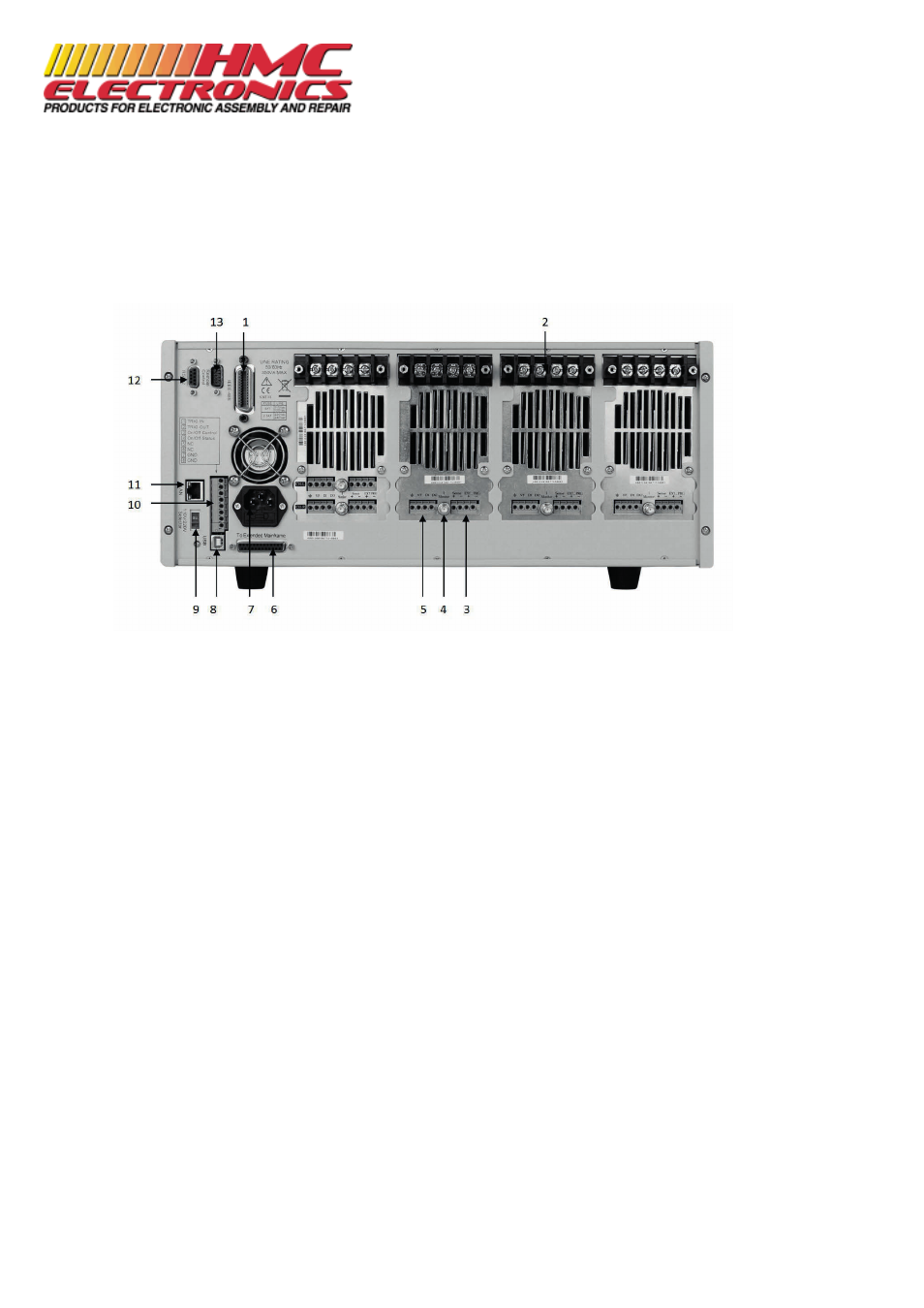

Figure 2 - MDL Series Rear Panel
1)
GPIB interface
2)
Input terminal of module
3)
Remote measurement and external input control terminal
4)
Current monitoring output
5)
Digital I/O and VF output terminal
6)
Extended module interface
7)
AC Power input socket
8)
USB interface
9)
Line voltage selection switch (110V/220V)
10)
Trigger I/O and load on/off terminals
11)
LAN interface
12)
RS-232 interface
13)
Not used – for factory use only
