GLASS-SET -RC (CONTROL) 15-300-006-22
components
A 15-300-001-11
condenser, T auto (R) *
B 15-300-002-31
vacuum fitting
C 15-300-002-58
distributor, includes valve (control)
C1 15-300-002-57
valve GL25/165
E 15-300-002-29
vapor tube, ground
F 15-300-003-17
evaporator flask, 20 l
G 15-300-002-59
distributor, includes valve
G1 15-300-002-56
valve GL25/125 lg.
H 15-300-004-11
collecting flask, 10 l, features bottom drain
H1 15-300-002-56
valve GL25/125 lg.
I
15-300-002-54
inlet pipe
I1 04-03-01-06-02
hose, PTFE 6.5x0.5
N 11-300-003-25
GL25 coupling kit
O 15-300-002-45
valve GL18
P 11-300-005-22
nipple for GL14
Q 23-09-03-01-27
coupling ring GL14
R 23-30-01-02-64
nipple for GL18
S 23-09-03-01-23
coupling ring GL18
T 23-09-03-01-24
screwed cap GL18
U 11-300-002-94
threaded joint KS 64, coated
V 11-300-002-95
flask clamp for S40/S41
W 23-30-01-01-09
sandwich gasket 50 / 69 / 3
X 23-30-01-03-31
spacer sleeve
Use this list when checking your shipment for completeness.
* (w. connecting stud for T1 temp. sensor used in T auto vacuum control mode)

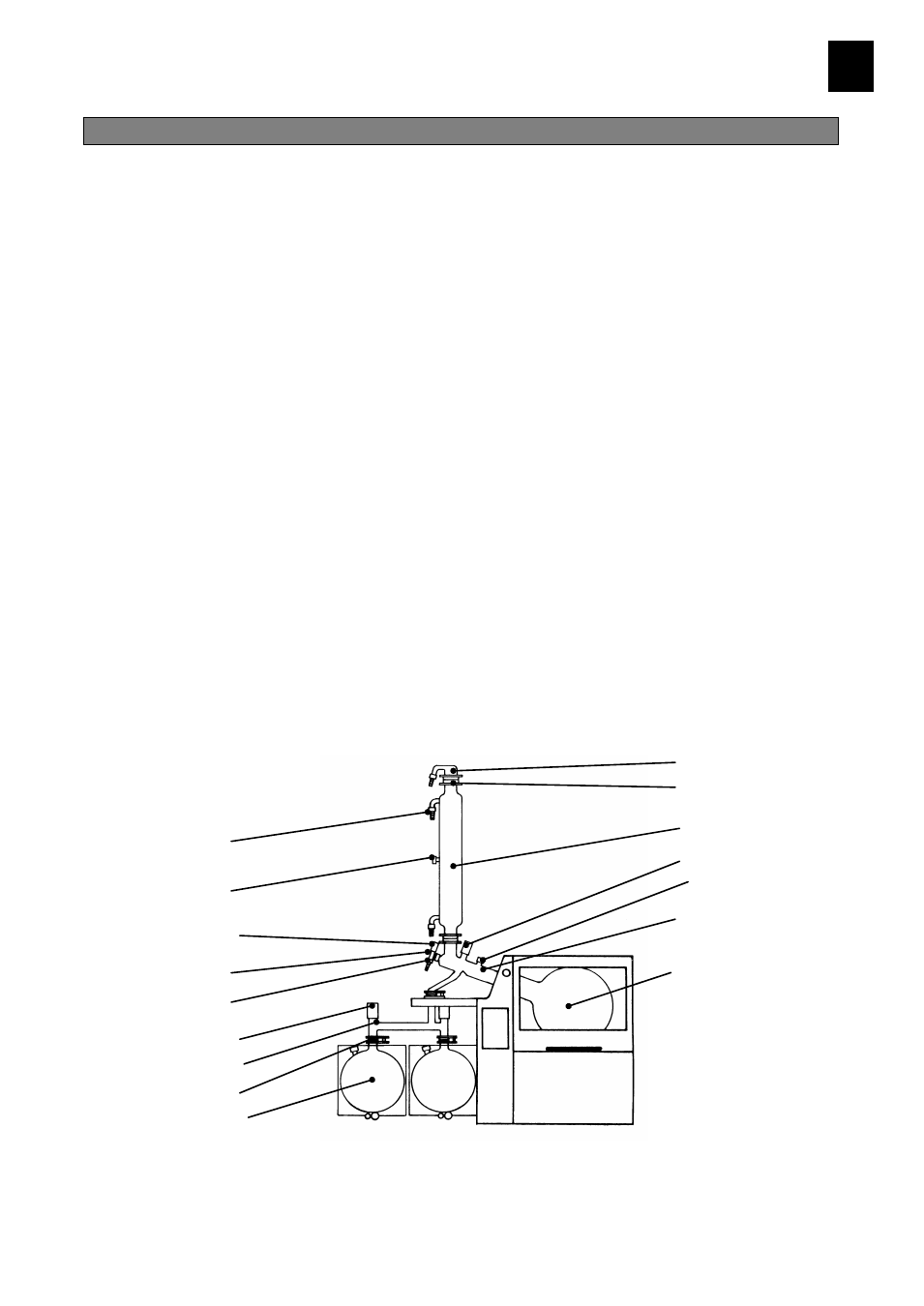

G
B
C, E, W
C1
F
G1
H, H1
I, I1, N, X
O
P, Q
R, S
T, T1
