SET-UP CHAPTER 1

Carefully unpack all parts, inspect for missing parts by packing list.

1. Set-up

The LABOROTA 20 eco with its transportation rods

(4) is bolted to the pallet. Remove these screws and
carry the unit to its place of installation (CAUTION: 2
persons needed; in this configuration, unit’s weight is
about 100 kg).

Place the LABOROTA 20 eco on a stable level

stand. In ready-to-

go configuration, unit’s weight will

be about 140 kg ! Ideal stand height above ground is
60 cm, this enables easy access to all controls. We
recommend the optional LABOROTA 20 eco base
(P/N 591-23300-00 (1)).

Remove transportation rods (4) and keep for later

use.

Through-holes for carrying rods are plugged with

caps (5).

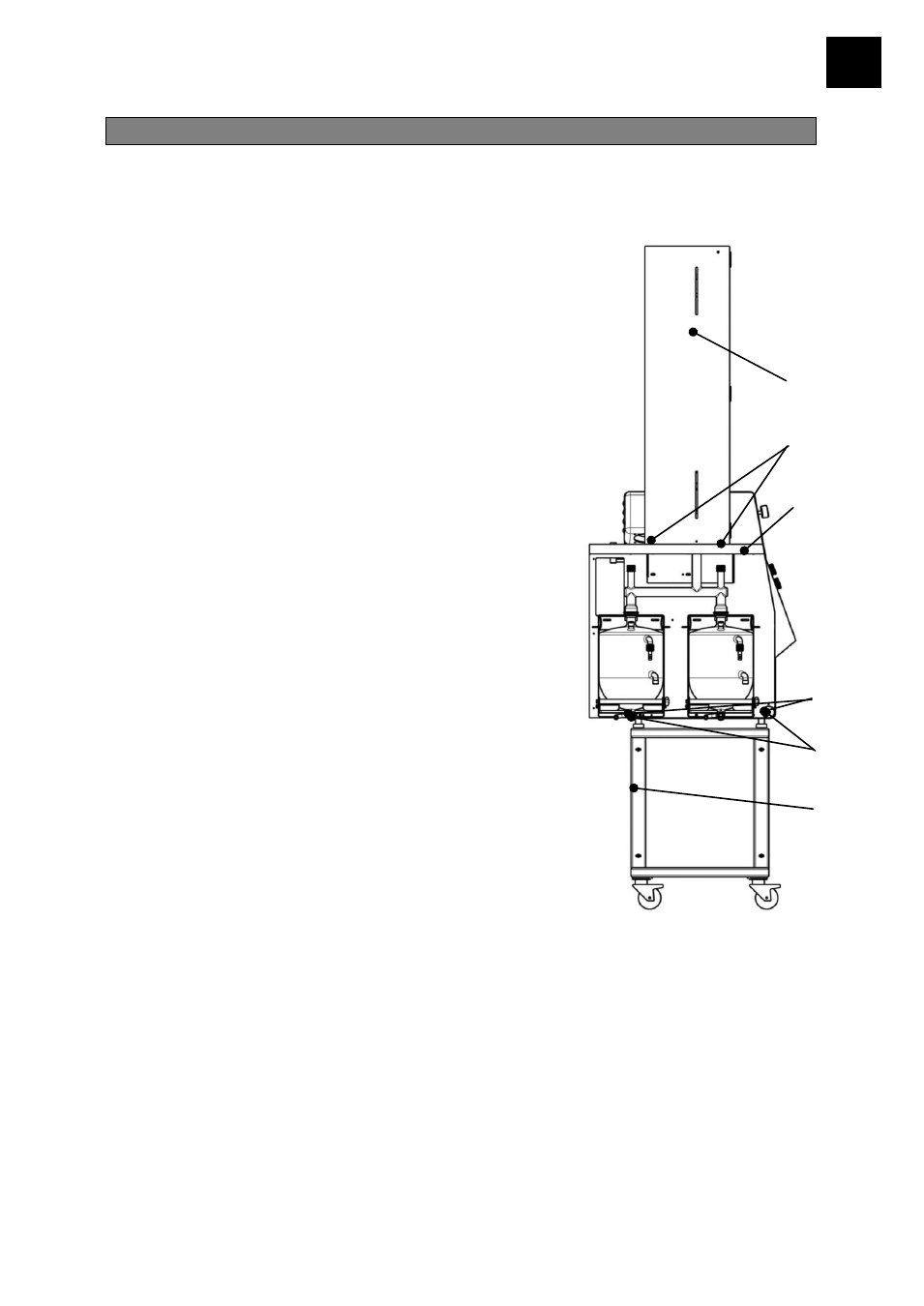

Install protective cabinet (6) on table (7), opening

pointing towards operator. Use screws (8) pre-
installed in attaching holes.

6


8


7

4


5
