GMP #27761
Page 6 of 8

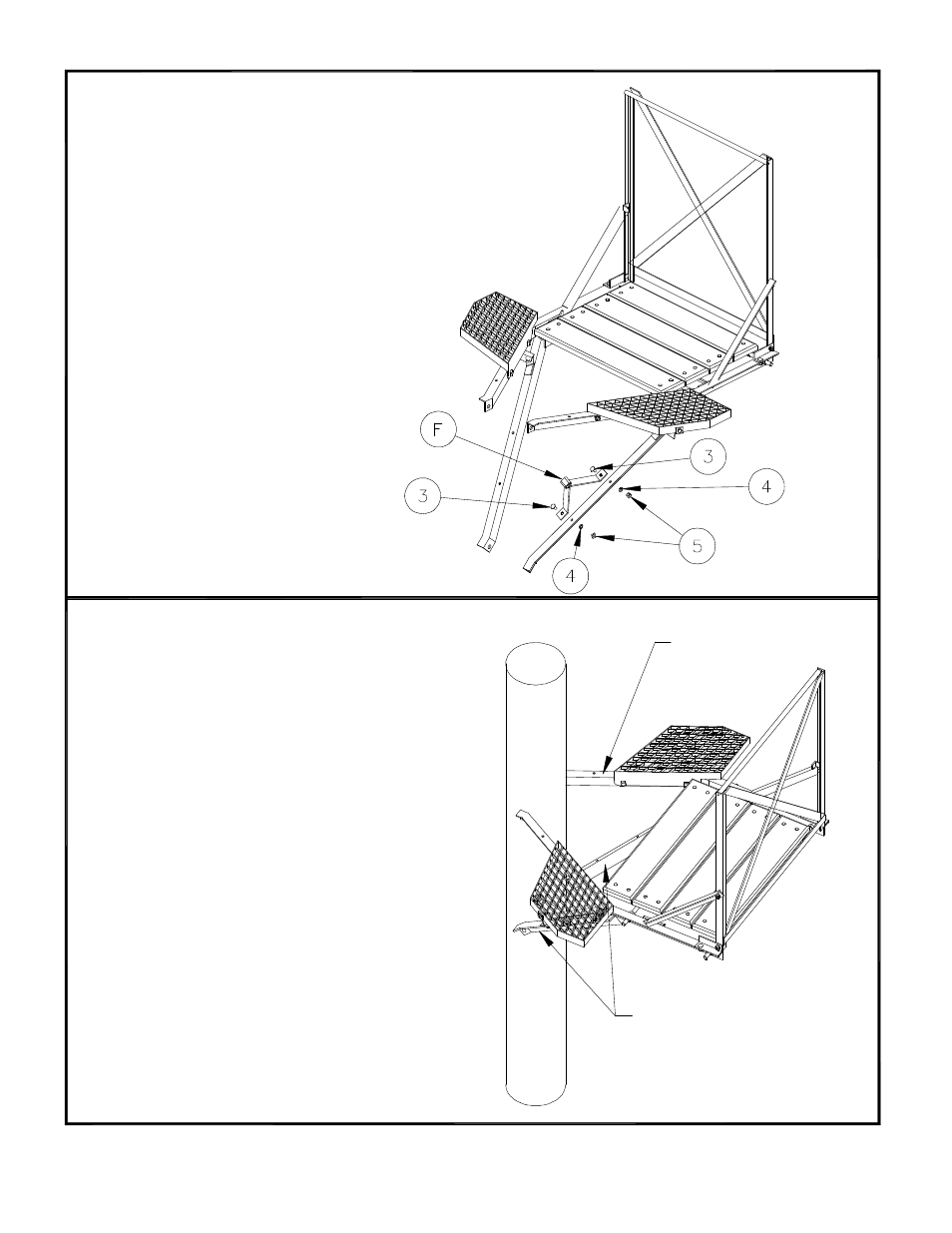

ATTACH THE STEP, ITEM F, TO THE
SLOPED BRACE DETERMINED TO BE
THE ENTRANCE SIDE OF THE
BALCONY BASED ON LOCAL OR
CORPORATE SAFETY PROCEDURES
USING THE HARDWARE INDICATED
AND HAND TIGHTEN.
RAISE THE BALCONY TO THE PROPER HEIGHT,
ALIGNED WITH THE CROSS-CONNECT
TERMINAL AND ATTACH THE BALCONY
SUPPORT BRACKETS TO THE POLE USING
APPROVED PROCEDURES AND HARDWARE
ALLOWING 6 INCHES CLEARANCE BELOW THE
BOTTOM EDGE OF THE CROSS-CONNECT
TERMINAL AND THE BRACKETS.
POSITION THE BALCONY TO A LEVEL
HORIZONTAL POSITION AND ATTACH THE
BOTTOM SUPPORT BRACKETS TO THE POLE
USING APPROVED PROCEDURES AND
HARDWARE.
STEP 6
STEP 7 BALCONY SUPPORT
BRACKETS
BOTTOM SUPPORT
BRACKETS BOTTOM SUPPORT
BRACKETS
