Part # 1009067 Rev13 (12/04/09) Page 5

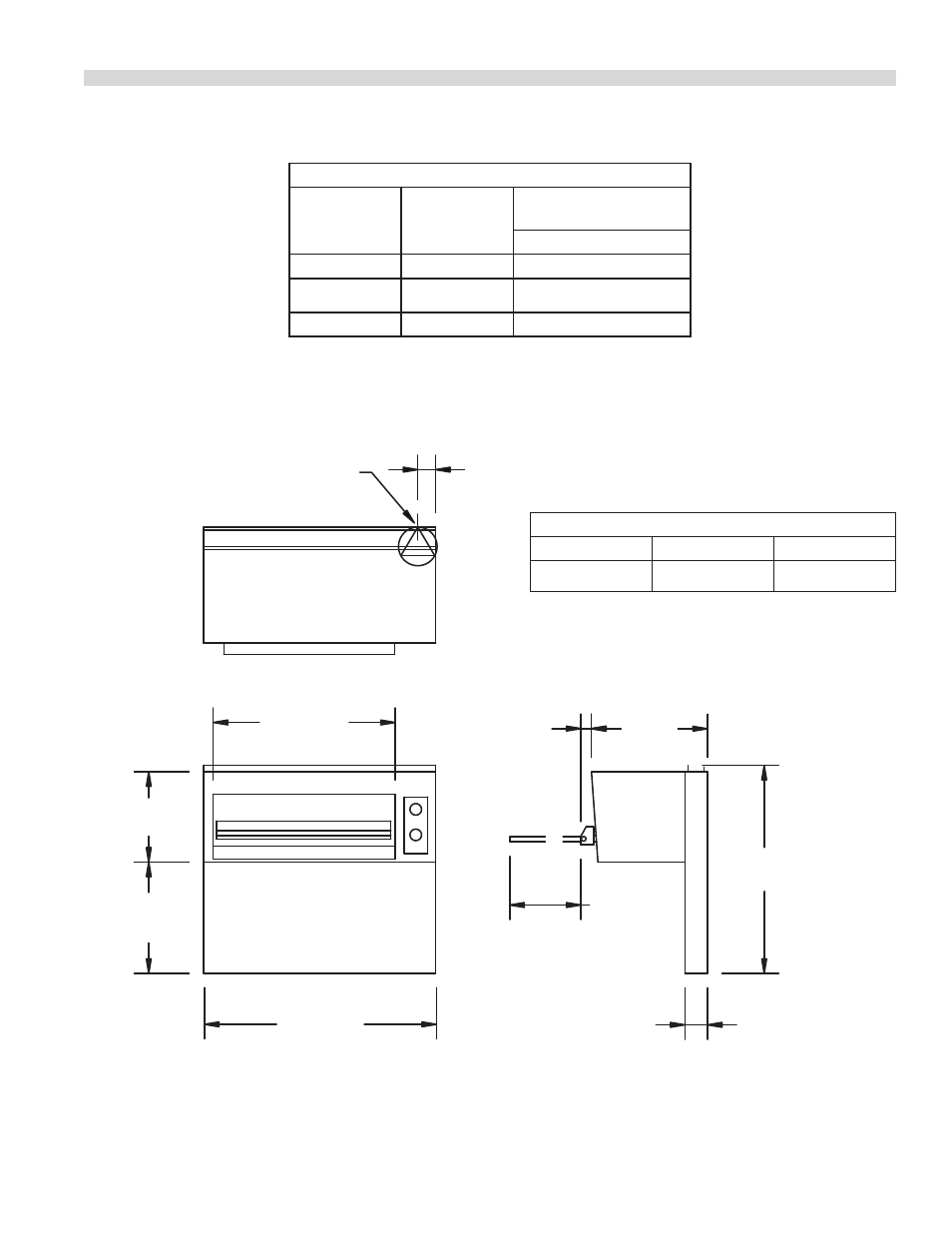

DIMENSIONS AND SPECIFICATIONS, ER36 BROILER
REAR
ELECTRICAL
2-3/4"
[70mm]
28-1/4"
[718mm]
14"
[356mm]
17-1/4"
[413mm]
36"
[914mm]
1-5/8"
[41mm]
18"
[757mm]
11-1/32"
[280mm]
32-1/4"
[819mm]
3-1/2"
[89mm]
ELECTRICAL LOADING CHART: MODEL ER36
VOLTAGE TOTAL kW
NOMINAL AMPERES
PER LINE
SINGLE PHASE
208 7.00 33.7
240 7.00 29.2
460 5.51 12.0
NOTE: When ER36 models are wired independently from the range, they are only available as single phase. Refer to wiring
diagrams for detailed range mount electrical data.
COMBUSTIBLE WALL CLEARANCES
Left Side Right Side Back
6” (152mm) 4-1/2” (114mm) 1/2” (13mm)
