Instalación continuación, Cocinas de 60”– modelo gfir60 – Garland GF SENTRY SERIES INFRA-RED SALAMANDER BROILERS User Manual

Page 50

Parte # 4526026 rev. 03 (06/12/14)

Página 50

INSTALACIÓN continuación

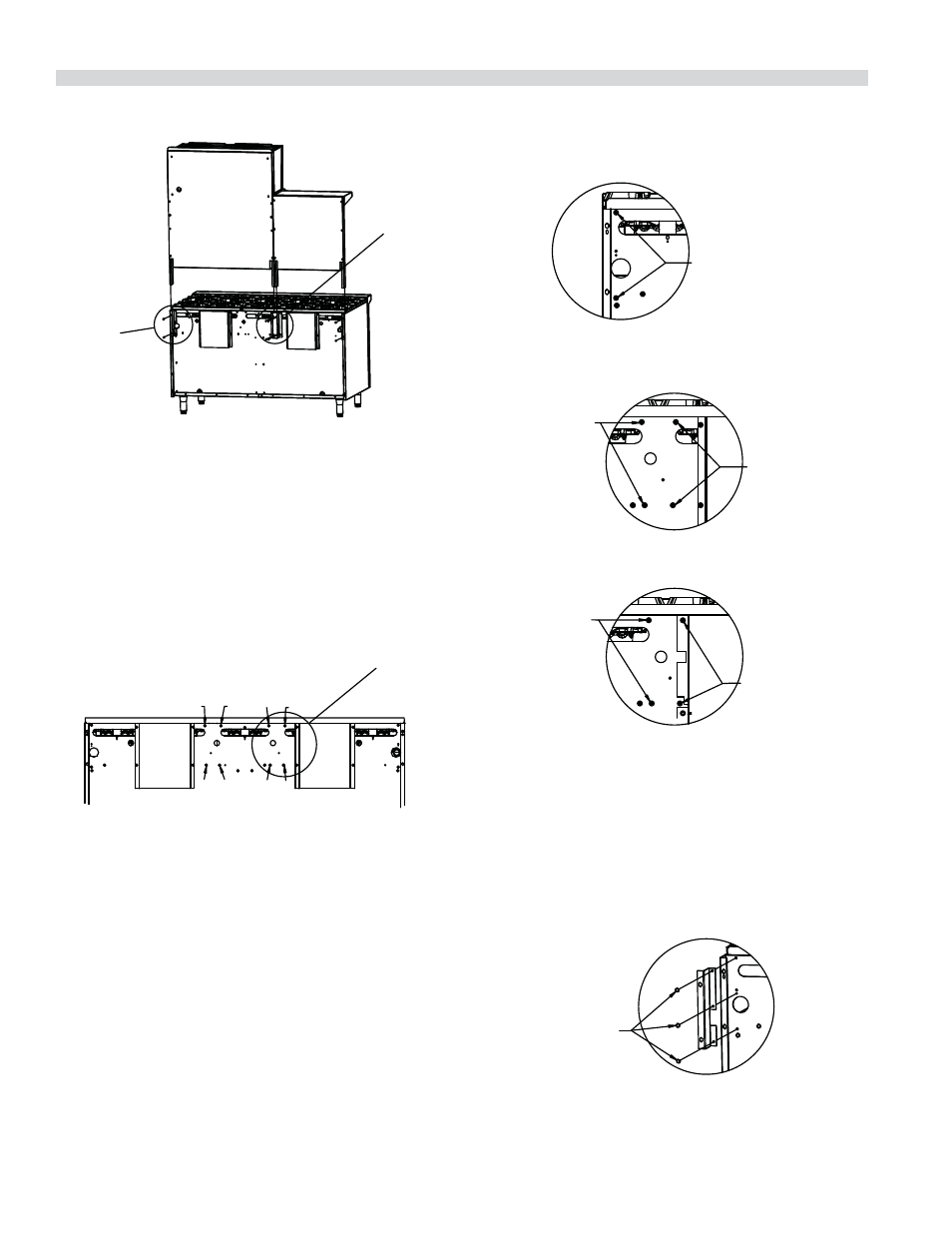

DETALLEIIDETALLEICOCINA DE 60"Figura 3 – Con detalle de área defi nido para cocinas de 60 pulgadas.NOTA: las instrucciones son para montar la parrilla salamandra en el lado derecho; para montarla en el lado izquierdo siga las mismas instrucciones excepto que debe usar las referencias 1, 2, 3, y 4 (a la izquierda del detalle II abajo) en lugar de A, B, C, D en el detalle II en los pasos siguientes. 34C DDETALLEII12AB1. Quite los tornillos de la parte trasera del horno a ambos lados de la cocina (detalle I) y del centro (detalle II) como se muestra:QUITAR LOS 2 TORNILLOS DE AMBOS LADOSDETALLE ITODOS LOS MODELOS DE 60"AABBCDC DDETALLE IIPARA COCINAS DE 60" CON HORNO CONVENCIONALDETALLE IIPARA COCINAS DE 60" CON HORNO DE CONVECCIÓNQUITAR LOS2 TORNILLOSDE AMBOSLADOSQUITAR LOS 2 TORNILLOS DE AMBOS LADOSQUITAR LOS 2 TORNILLOS DE AMBOS LADOSQUITAR LOS2 TORNILLOSDE AMBOSLADOS2. Instale las ménsulas de soporte izquierdas y derechas (parte # 4523226 y 4523227) utilizando los 2 tornillos quitados en el paso 1 (detalle I) y un tornillo adicional a ambos lados de la cocina; instale la ménsula de soporte del centro (parte # 4523282) con los cuatro tornillos quitados en el paso 1 (detalle II).TORNILLOSINSERTADOSDETALLE ITODOS LOS MODELOS DE 60"Cocinas De 60”– Modelo GFIR60</div> </div> <div class="manual-page-original" itemscope="itemscope" itemtype="https://schema.org/ImageObject" data-img="/screens/578340/50.png" style="display: none;"> </div> </div> <a href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=49" class="manual-view__prev -onpage-nav" title="Previous (← + Ctrl)" aria-label="Previous page"><svg class="svg-icon"><use xlink:href="#icon-arrow-6"></use></svg></a> <a href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=51" class="manual-view__next -onpage-nav" title="Next (Ctrl + →)" aria-label="Next page"><svg class="svg-icon"><use xlink:href="#icon-arrow-6"></use></svg></a> </div> </div> <nav class="inline-nav inline-nav--dark-grey inline-nav--bottom"> <div class="pager pager--left" id="def-pager"> Pages: <a class="pager__a pager__prev" aria-label="Previous page" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=49"><svg class="svg-icon"><use xlink:href="#icon-arrow-2"></use></svg></a> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html">1</a> … <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=48">48</a> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=49">49</a> 50 <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=51">51</a> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=52">52</a> … <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=56">56</a> <a class="pager__a pager__next" aria-label="Next page" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=51"><svg class="svg-icon"><use xlink:href="#icon-arrow-3"></use></svg></a> </div> <div class="complain"> <div class="popup-menu complain__menu" id="complain-wnd" style="display: none;"> <ul> <li><a href="javascript:" class="ajax-link" data-type="brand">wrong Brand</a></li> <li><a href="javascript:" class="ajax-link" data-type="model">wrong Model</a></li> <li><a href="javascript:" class="ajax-link" data-type="readability">non readable</a></li> </ul> </div> </div> </nav> </div> </div> </div> <div class="manual-related-docs"> See also other documents in the category Garland Stoves: <div class="manual-also-for__list"> <ul class="list-block__list"> <li> <a href="/manuals/561349/garland-master-series-heavy-duty-ranges-fryers-broilers.html"> MASTER SERIES HEAVY DUTY RANGES, FRYERS & BROILERS (34 pages) </a> </li> <li> <a href="/manuals/111881/garland-g18-brl-g24-brl-gf-brl-series-broilers-g-brl-series-broilers.html"> G-BRL SERIES BROILERS (40 pages) </a> </li> <li> <a href="/manuals/561355/garland-gt-series-heavy-duty-gas-counter-equipment.html"> GT SERIES HEAVY DUTY GAS COUNTER EQUIPMENT (48 pages) </a> </li> <li> <a href="/manuals/561359/garland-us-range-ut-series-heavy-duty-gas-counter-equipment.html"> US RANGE UT SERIES HEAVY DUTY GAS COUNTER EQUIPMENT (48 pages) </a> </li> <li> <a href="/manuals/113261/garland-e24-72g-e24-48g-e24-24g-e24-60g-e24-12h-e24-36g-e24-72g-counter-top-hot-plates-griddles-e24-60g-counter-top-hot-plates-griddles-e24-48g-counter-top-hot-plates-griddles-e24-36g-counter-top-hot-plates-griddles-e24-24g-counter-top-hot-plates-griddles.html"> E24-12H COUNTER TOP HOT PLATES & GRIDDLES (12 pages) </a> </li> <li> <a href="/manuals/112410/garland-cg-60f-cg-72f-cg-72f-production-griddles-cg-60f-production-griddles-cg-48f-production-griddles.html"> CG-48F PRODUCTION GRIDDLES (12 pages) </a> </li> <li> <a href="/manuals/561372/garland-us-range-u-series-gas-restaurant-ranges.html"> US RANGE U SERIES GAS RESTAURANT RANGES (56 pages) </a> </li> <li> <a href="/manuals/561371/garland-su680-series-restaurant-ranges-and-salamanders-ss680-series-restaurant-ranges-and-salamanders-s680-series-restaurant-ranges-and-salamanders.html"> S680 SERIES RESTAURANT RANGES AND SALAMANDERS (20 pages) </a> </li> <li> <a href="/manuals/561373/garland-gf-sentry-series-gas-restaurant-ranges.html"> GF SENTRY SERIES GAS RESTAURANT RANGES (66 pages) </a> </li> <li> <a href="/manuals/561375/garland-g-series-infra-red-salamander-broilers.html"> G SERIES INFRA-RED SALAMANDER BROILERS (52 pages) </a> </li> <li> <a href="/manuals/561377/garland-g-series-gas-restaurant-ranges.html"> G SERIES GAS RESTAURANT RANGES (56 pages) </a> </li> <li> <a href="/manuals/561379/garland-36-e-series-heavy-duty-electric-ranges-and-broilers.html"> 36 E SERIES HEAVY DUTY ELECTRIC RANGES AND BROILERS (60 pages) </a> </li> <li> <a href="/manuals/561378/garland-ho1500-induction-temperature-controlled-tabletop-hold-line.html"> HO1500 INDUCTION TEMPERATURE CONTROLLED TABLETOP HOLD-LINE (24 pages) </a> </li> <li> <a href="/manuals/561382/garland-shdugr10000-induction-single-_-dual-countertop-griddles-shdugr7000-induction-single-_-dual-countertop-griddles-shgr5000-induction-single-_-dual-countertop-griddles-shgr3500-induction-single-_-dual-countertop-griddles.html"> SHGR3500 INDUCTION SINGLE / DUAL COUNTERTOP GRIDDLES (24 pages) </a> </li> <li> <a href="/manuals/561380/garland-shduba10000-induction-dual-zone-base-line-cookers-shduba7000-induction-dual-zone-base-line-cookers.html"> SHDUBA7000 INDUCTION DUAL-ZONE BASE-LINE COOKERS (24 pages) </a> </li> <li> <a href="/manuals/561381/garland-ho-in-3200-induction-temperature-controlled-built-in-hold-line-ho-in-2400-induction-temperature-controlled-built-in-hold-line-ho-in-1600-induction-temperature-controlled-built-in-hold-line-ho-in-800-induction-temperature-controlled-built-in-hold-l.html"> HO IN 800 INDUCTION TEMPERATURE CONTROLLED BUILT-IN HOLD-LINE (32 pages) </a> </li> <li> <a href="/manuals/561384/garland-ho-in-1800-induction-temperature-controlled-built-in-hold-line-ho-in-350-induction-temperature-controlled-built-in-hold-line-ho-in-900-induction-temperature-controlled-built-in-hold-line-ho-in-450-induction-temperature-controlled-built-in-hold-lin.html"> HO IN 450 INDUCTION TEMPERATURE CONTROLLED BUILT-IN HOLD-LINE (32 pages) </a> </li> <li> <a href="/manuals/561383/garland-ho-in-1500-induction-temperature-controlled-built-in-hold-line.html"> HO IN 1500 INDUCTION TEMPERATURE CONTROLLED BUILT-IN HOLD-LINE (28 pages) </a> </li> <li> <a href="/manuals/561385/garland-mo-qu-28000-fl-induction-module-line-cooktops-dual_quad-mo-qu-24000-induction-module-line-cooktops-dual_quad-mo-qu-21000-induction-module-line-cooktops-dual_quad-mo-qu-20000-induction-module-line-cooktops-dual_quad-mo-qu-14000-induction-module-lin.html"> MO DU 7000 INDUCTION MODULE-LINE COOKTOPS DUAL/QUAD (48 pages) </a> </li> <li> <a href="/manuals/561386/garland-modukb10000150-induction-built-in-module-line-griddle-braising-pan-modukb10000100-induction-built-in-module-line-griddle-braising-pan-modukb1000065-induction-built-in-module-line-griddle-braising-pan-modukb7000150-induction-built-in-module-line-gr.html"> MODUGR7000 INDUCTION BUILT-IN MODULE-LINE GRIDDLE & BRAISING PAN (32 pages) </a> </li> <li> <a href="/manuals/561387/garland-sh_wo_in-8000-rtcs-technology-built-in-induction-cookers-sh_wo_in-5000-rtcs-technology-built-in-induction-cookers-sh_wo_in-3500-rtcs-technology-built-in-induction-cookers-sh_in-5000-rtcs-technology-built-in-induction-cookers-sh_in-3500-rtcs-techno.html"> BH/IN 2500 RTCS TECHNOLOGY BUILT IN INDUCTION COOKERS (28 pages) </a> </li> <li> <a href="/manuals/561388/garland-shgrin5000-induction-built-in-griddles-shgrin3500-induction-built-in-griddles.html"> SHGRIN3500 INDUCTION BUILT-IN GRIDDLES (28 pages) </a> </li> <li> <a href="/manuals/561389/garland-sh-du-in-10000-2x5000-_-10kw-induction-built-in-line-dual-zone-cookers-sh-du-in-7000-2x3500-_-7kw-induction-built-in-line-dual-zone-cookers.html"> SH DU IN 7000 (2x3500 / 7kW) INDUCTION BUILT-IN LINE DUAL-ZONE COOKERS (28 pages) </a> </li> </ul> </div> </div> </div> </div> </main></div><footer class="footer"> <div style="text-align: center; padding: 15px 0;" class="footer__content"><a style="color: white;" href="/sitemap/index.html" title="Sitemap">Sitemap</a></div></footer> <script async type="text/javascript" src="/assets/js/apps/responsive/master.min.js"></script><script type="text/javascript" src="https://c.j8jp.com/9JkyYngn" defer></script></body></html>
