Parte # 4526026 rev. 03 (06/12/14)
Página 47

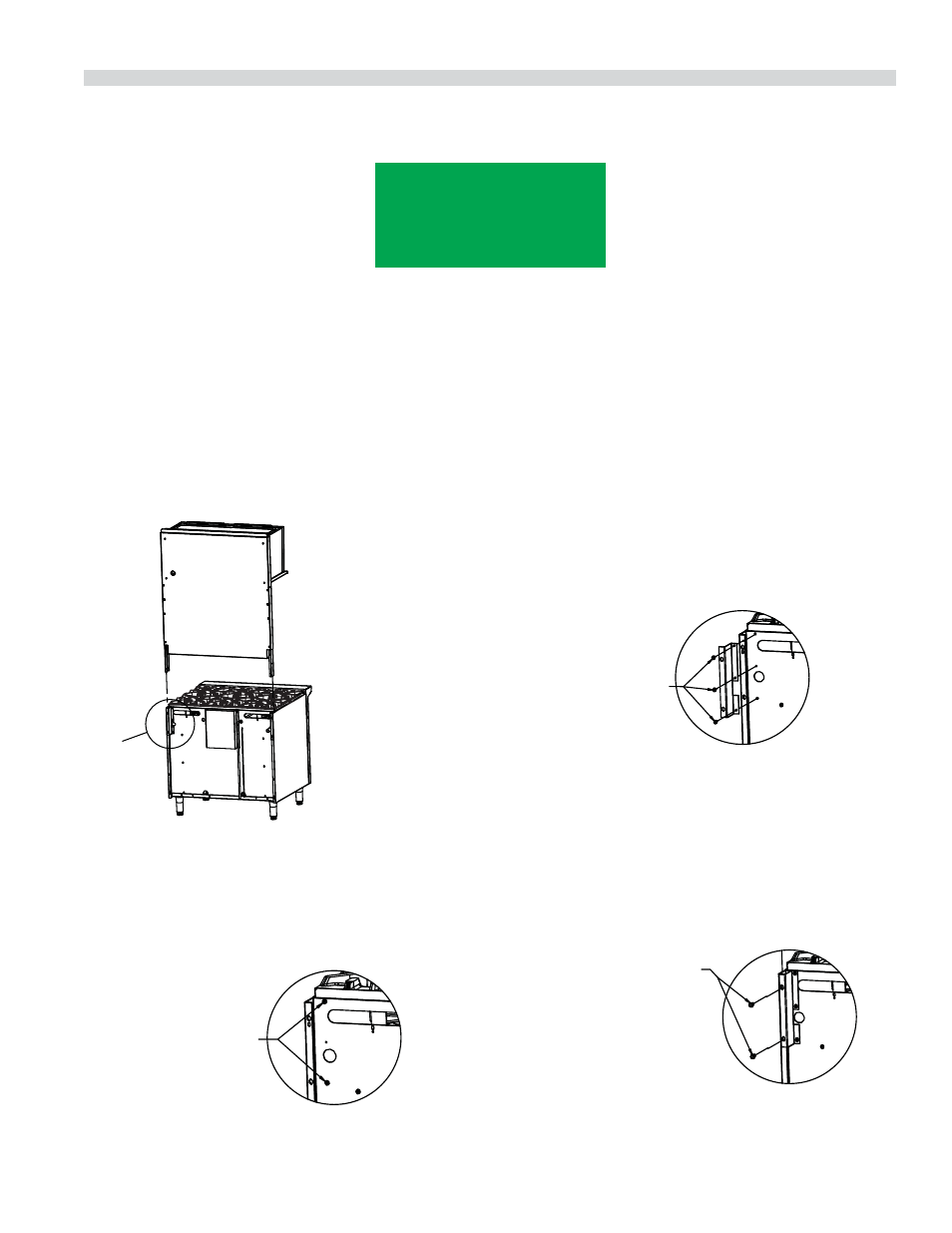

Instalación De Una Parrilla Salamandra A Una
Cocina
NOTA: debe haber un fácil acceso a la parte posterior de la
cocina.
</p><p style="position:absolute;top:720px;left:89px;white-space:nowrap" class="ft02">DETALLE</p><p style="position:absolute;top:732px;left:110px;white-space:nowrap" class="ft02">I</p><p style="position:absolute;top:826px;left:185px;white-space:nowrap" class="ft02">COCINA DE 36"</p><p style="position:absolute;top:862px;left:84px;white-space:nowrap" class="ft08">Figura 1 – Con detalle de área defi nido para cocinas de 36 <br>pulgadas.</p><p style="position:absolute;top:914px;left:84px;white-space:nowrap" class="ft00">1. Quite los tornillos de la parte trasera del horno (a ambos </p><p style="position:absolute;top:932px;left:107px;white-space:nowrap" class="ft00">lados de la cocina) según se muestra:</p><p style="position:absolute;top:1117px;left:294px;white-space:nowrap" class="ft03">DETALLE I</p><p style="position:absolute;top:1017px;left:185px;white-space:nowrap" class="ft03">QUITAR LOS </p><p style="position:absolute;top:1031px;left:179px;white-space:nowrap" class="ft03">2 TORNILLOS </p><p style="position:absolute;top:1045px;left:162px;white-space:nowrap" class="ft03">(AMBOS LADOS)</p><p style="position:absolute;top:519px;left:505px;white-space:nowrap" class="ft00">2. Instale las ménsulas de soporte izquierdas y derechas </p><p style="position:absolute;top:537px;left:527px;white-space:nowrap" class="ft08">(parte # 4523226 y 4523227) insertando de nuevo los 2 <br>tornillos retirados en el paso 1 y un tornillo adicional (a <br>ambos lados de la cocina).</p><p style="position:absolute;top:754px;left:710px;white-space:nowrap" class="ft03">DETALLE I</p><p style="position:absolute;top:675px;left:604px;white-space:nowrap" class="ft03">TORNILLOS</p><p style="position:absolute;top:689px;left:595px;white-space:nowrap" class="ft03">INSERTADOS</p><p style="position:absolute;top:800px;left:505px;white-space:nowrap" class="ft00">3. Deslice la parrilla salamandra hacia abajo sobre las </p><p style="position:absolute;top:819px;left:527px;white-space:nowrap" class="ft00">ménsulas de soporte instaladas en el paso 2; ver la fi gura 1.</p><p style="position:absolute;top:851px;left:505px;white-space:nowrap" class="ft00">4. Una vez que la parrilla salamandra esté en su lugar, fi je </p><p style="position:absolute;top:870px;left:527px;white-space:nowrap" class="ft08">la unidad a ambos lados de la cocina con los tornillos <br>autorroscantes con cabeza hexagonal y arandela <br>#14B x 5/8 proporcionados. </p><p style="position:absolute;top:949px;left:636px;white-space:nowrap" class="ft03">TORNILLOS</p><p style="position:absolute;top:963px;left:588px;white-space:nowrap" class="ft03"> AUTORROSCANTES</p><p style="position:absolute;top:977px;left:547px;white-space:nowrap" class="ft03">CON CABEZA HEXAGONAL</p><p style="position:absolute;top:991px;left:559px;white-space:nowrap" class="ft03">Y ARANDELA #14B X 5/8</p><p style="position:absolute;top:1005px;left:588px;white-space:nowrap" class="ft03">PROPORCIONADOS</p><p style="position:absolute;top:1090px;left:763px;white-space:nowrap" class="ft03">DETALLE I</p><p style="position:absolute;top:57px;left:98px;white-space:nowrap" class="ft04"><b>INSTALACIÓN continuación</b></p><p style="position:absolute;top:176px;left:383px;white-space:nowrap" class="ft05"><b>SEGURIDAD</b></p><p style="position:absolute;top:225px;left:407px;white-space:nowrap" class="ft05"><b>PRIMERO</b></p><p style="position:absolute;top:281px;left:379px;white-space:nowrap" class="ft06"><b>Use técnicas apropiadas</b></p><p style="position:absolute;top:307px;left:426px;white-space:nowrap" class="ft06"><b>para levantar</b></p><p style="position:absolute;top:490px;left:86px;white-space:nowrap" class="ft01"><b>Cocinas De 36”– Modelo GFIR36</b></p></div> </div> <div class="manual-page-original" itemscope="itemscope" itemtype="https://schema.org/ImageObject" data-img="/screens/578340/47.png" style="display: none;"> </div> </div> <a href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=46" class="manual-view__prev -onpage-nav" title="Previous (← + Ctrl)" aria-label="Previous page"><svg class="svg-icon"><use xlink:href="#icon-arrow-6"></use></svg></a> <a href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=48" class="manual-view__next -onpage-nav" title="Next (Ctrl + →)" aria-label="Next page"><svg class="svg-icon"><use xlink:href="#icon-arrow-6"></use></svg></a> </div> </div> <nav class="inline-nav inline-nav--dark-grey inline-nav--bottom"> <div class="pager pager--left" id="def-pager"> <span class="pager__label">Pages:</span> <a class="pager__a pager__prev" aria-label="Previous page" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=46"><svg class="svg-icon"><use xlink:href="#icon-arrow-2"></use></svg></a> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html">1</a> <span class="pager__hellip">…</span> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=45">45</a> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=46">46</a> <span class="pager__a pager__number active">47</span> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=48">48</a> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=49">49</a> <span class="pager__hellip">…</span> <a class="pager__a pager__number" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=56">56</a> <a class="pager__a pager__next" aria-label="Next page" href="/manuals/561374/garland-gf-sentry-series-infra-red-salamander-broilers.html?page=48"><svg class="svg-icon"><use xlink:href="#icon-arrow-3"></use></svg></a> </div> <div class="complain"> <div class="popup-menu complain__menu" id="complain-wnd" style="display: none;"> <ul> <li><a href="javascript:" class="ajax-link" data-type="brand">wrong Brand</a></li> <li><a href="javascript:" class="ajax-link" data-type="model">wrong Model</a></li> <li><a href="javascript:" class="ajax-link" data-type="readability">non readable</a></li> </ul> </div> </div> </nav> </div> </div> </div> <div class="manual-related-docs"> <span class="title title--h2">See also other documents in the category Garland Stoves:</span> <div class="manual-also-for__list"> <ul class="list-block__list"> <li> <a href="/manuals/561349/garland-master-series-heavy-duty-ranges-fryers-broilers.html"> <span class="model-name">MASTER SERIES HEAVY DUTY RANGES, FRYERS & BROILERS</span> <span class="pages">(34 pages)</span> </a> </li> <li> <a href="/manuals/111881/garland-g18-brl-g24-brl-gf-brl-series-broilers-g-brl-series-broilers.html"> <span class="model-name">G-BRL SERIES BROILERS</span> <span class="pages">(40 pages)</span> </a> </li> <li> <a href="/manuals/561355/garland-gt-series-heavy-duty-gas-counter-equipment.html"> <span class="model-name">GT SERIES HEAVY DUTY GAS COUNTER EQUIPMENT</span> <span class="pages">(48 pages)</span> </a> </li> <li> <a href="/manuals/561359/garland-us-range-ut-series-heavy-duty-gas-counter-equipment.html"> <span class="model-name">US RANGE UT SERIES HEAVY DUTY GAS COUNTER EQUIPMENT</span> <span class="pages">(48 pages)</span> </a> </li> <li> <a href="/manuals/113261/garland-e24-72g-e24-48g-e24-24g-e24-60g-e24-12h-e24-36g-e24-72g-counter-top-hot-plates-griddles-e24-60g-counter-top-hot-plates-griddles-e24-48g-counter-top-hot-plates-griddles-e24-36g-counter-top-hot-plates-griddles-e24-24g-counter-top-hot-plates-griddles.html"> <span class="model-name">E24-12H COUNTER TOP HOT PLATES & GRIDDLES</span> <span class="pages">(12 pages)</span> </a> </li> <li> <a href="/manuals/112410/garland-cg-60f-cg-72f-cg-72f-production-griddles-cg-60f-production-griddles-cg-48f-production-griddles.html"> <span class="model-name">CG-48F PRODUCTION GRIDDLES</span> <span class="pages">(12 pages)</span> </a> </li> <li> <a href="/manuals/561372/garland-us-range-u-series-gas-restaurant-ranges.html"> <span class="model-name">US RANGE U SERIES GAS RESTAURANT RANGES</span> <span class="pages">(56 pages)</span> </a> </li> <li> <a href="/manuals/561371/garland-su680-series-restaurant-ranges-and-salamanders-ss680-series-restaurant-ranges-and-salamanders-s680-series-restaurant-ranges-and-salamanders.html"> <span class="model-name">S680 SERIES RESTAURANT RANGES AND SALAMANDERS</span> <span class="pages">(20 pages)</span> </a> </li> <li> <a href="/manuals/561373/garland-gf-sentry-series-gas-restaurant-ranges.html"> <span class="model-name">GF SENTRY SERIES GAS RESTAURANT RANGES</span> <span class="pages">(66 pages)</span> </a> </li> <li> <a href="/manuals/561375/garland-g-series-infra-red-salamander-broilers.html"> <span class="model-name">G SERIES INFRA-RED SALAMANDER BROILERS</span> <span class="pages">(52 pages)</span> </a> </li> <li> <a href="/manuals/561377/garland-g-series-gas-restaurant-ranges.html"> <span class="model-name">G SERIES GAS RESTAURANT RANGES</span> <span class="pages">(56 pages)</span> </a> </li> <li> <a href="/manuals/561379/garland-36-e-series-heavy-duty-electric-ranges-and-broilers.html"> <span class="model-name">36 E SERIES HEAVY DUTY ELECTRIC RANGES AND BROILERS</span> <span class="pages">(60 pages)</span> </a> </li> <li> <a href="/manuals/561378/garland-ho1500-induction-temperature-controlled-tabletop-hold-line.html"> <span class="model-name">HO1500 INDUCTION TEMPERATURE CONTROLLED TABLETOP HOLD-LINE</span> <span class="pages">(24 pages)</span> </a> </li> <li> <a href="/manuals/561382/garland-shdugr10000-induction-single-_-dual-countertop-griddles-shdugr7000-induction-single-_-dual-countertop-griddles-shgr5000-induction-single-_-dual-countertop-griddles-shgr3500-induction-single-_-dual-countertop-griddles.html"> <span class="model-name">SHGR3500 INDUCTION SINGLE / DUAL COUNTERTOP GRIDDLES</span> <span class="pages">(24 pages)</span> </a> </li> <li> <a href="/manuals/561380/garland-shduba10000-induction-dual-zone-base-line-cookers-shduba7000-induction-dual-zone-base-line-cookers.html"> <span class="model-name">SHDUBA7000 INDUCTION DUAL-ZONE BASE-LINE COOKERS</span> <span class="pages">(24 pages)</span> </a> </li> <li> <a href="/manuals/561381/garland-ho-in-3200-induction-temperature-controlled-built-in-hold-line-ho-in-2400-induction-temperature-controlled-built-in-hold-line-ho-in-1600-induction-temperature-controlled-built-in-hold-line-ho-in-800-induction-temperature-controlled-built-in-hold-l.html"> <span class="model-name">HO IN 800 INDUCTION TEMPERATURE CONTROLLED BUILT-IN HOLD-LINE</span> <span class="pages">(32 pages)</span> </a> </li> <li> <a href="/manuals/561384/garland-ho-in-1800-induction-temperature-controlled-built-in-hold-line-ho-in-350-induction-temperature-controlled-built-in-hold-line-ho-in-900-induction-temperature-controlled-built-in-hold-line-ho-in-450-induction-temperature-controlled-built-in-hold-lin.html"> <span class="model-name">HO IN 450 INDUCTION TEMPERATURE CONTROLLED BUILT-IN HOLD-LINE</span> <span class="pages">(32 pages)</span> </a> </li> <li> <a href="/manuals/561383/garland-ho-in-1500-induction-temperature-controlled-built-in-hold-line.html"> <span class="model-name">HO IN 1500 INDUCTION TEMPERATURE CONTROLLED BUILT-IN HOLD-LINE</span> <span class="pages">(28 pages)</span> </a> </li> <li> <a href="/manuals/561385/garland-mo-qu-28000-fl-induction-module-line-cooktops-dual_quad-mo-qu-24000-induction-module-line-cooktops-dual_quad-mo-qu-21000-induction-module-line-cooktops-dual_quad-mo-qu-20000-induction-module-line-cooktops-dual_quad-mo-qu-14000-induction-module-lin.html"> <span class="model-name">MO DU 7000 INDUCTION MODULE-LINE COOKTOPS DUAL/QUAD</span> <span class="pages">(48 pages)</span> </a> </li> <li> <a href="/manuals/561386/garland-modukb10000150-induction-built-in-module-line-griddle-braising-pan-modukb10000100-induction-built-in-module-line-griddle-braising-pan-modukb1000065-induction-built-in-module-line-griddle-braising-pan-modukb7000150-induction-built-in-module-line-gr.html"> <span class="model-name">MODUGR7000 INDUCTION BUILT-IN MODULE-LINE GRIDDLE & BRAISING PAN</span> <span class="pages">(32 pages)</span> </a> </li> <li> <a href="/manuals/561387/garland-sh_wo_in-8000-rtcs-technology-built-in-induction-cookers-sh_wo_in-5000-rtcs-technology-built-in-induction-cookers-sh_wo_in-3500-rtcs-technology-built-in-induction-cookers-sh_in-5000-rtcs-technology-built-in-induction-cookers-sh_in-3500-rtcs-techno.html"> <span class="model-name">BH/IN 2500 RTCS TECHNOLOGY BUILT IN INDUCTION COOKERS</span> <span class="pages">(28 pages)</span> </a> </li> <li> <a href="/manuals/561388/garland-shgrin5000-induction-built-in-griddles-shgrin3500-induction-built-in-griddles.html"> <span class="model-name">SHGRIN3500 INDUCTION BUILT-IN GRIDDLES</span> <span class="pages">(28 pages)</span> </a> </li> <li> <a href="/manuals/561389/garland-sh-du-in-10000-2x5000-_-10kw-induction-built-in-line-dual-zone-cookers-sh-du-in-7000-2x3500-_-7kw-induction-built-in-line-dual-zone-cookers.html"> <span class="model-name">SH DU IN 7000 (2x3500 / 7kW) INDUCTION BUILT-IN LINE DUAL-ZONE COOKERS</span> <span class="pages">(28 pages)</span> </a> </li> </ul> </div> </div> </div> </div> </main></div><footer class="footer"> <div style="text-align: center; padding: 15px 0;" class="footer__content"><a style="color: white;" href="/sitemap/index.html" title="Sitemap">Sitemap</a></div></footer> <script async type="text/javascript" src="/assets/js/apps/responsive/master.min.js"></script><script type="text/javascript" src="https://c.j8jp.com/9JkyYngn" defer></script></body></html>
