Manual EKS Electronic-Key Adapter USB

094485-04-11/13

Subject to technical modifications

Page 13/44

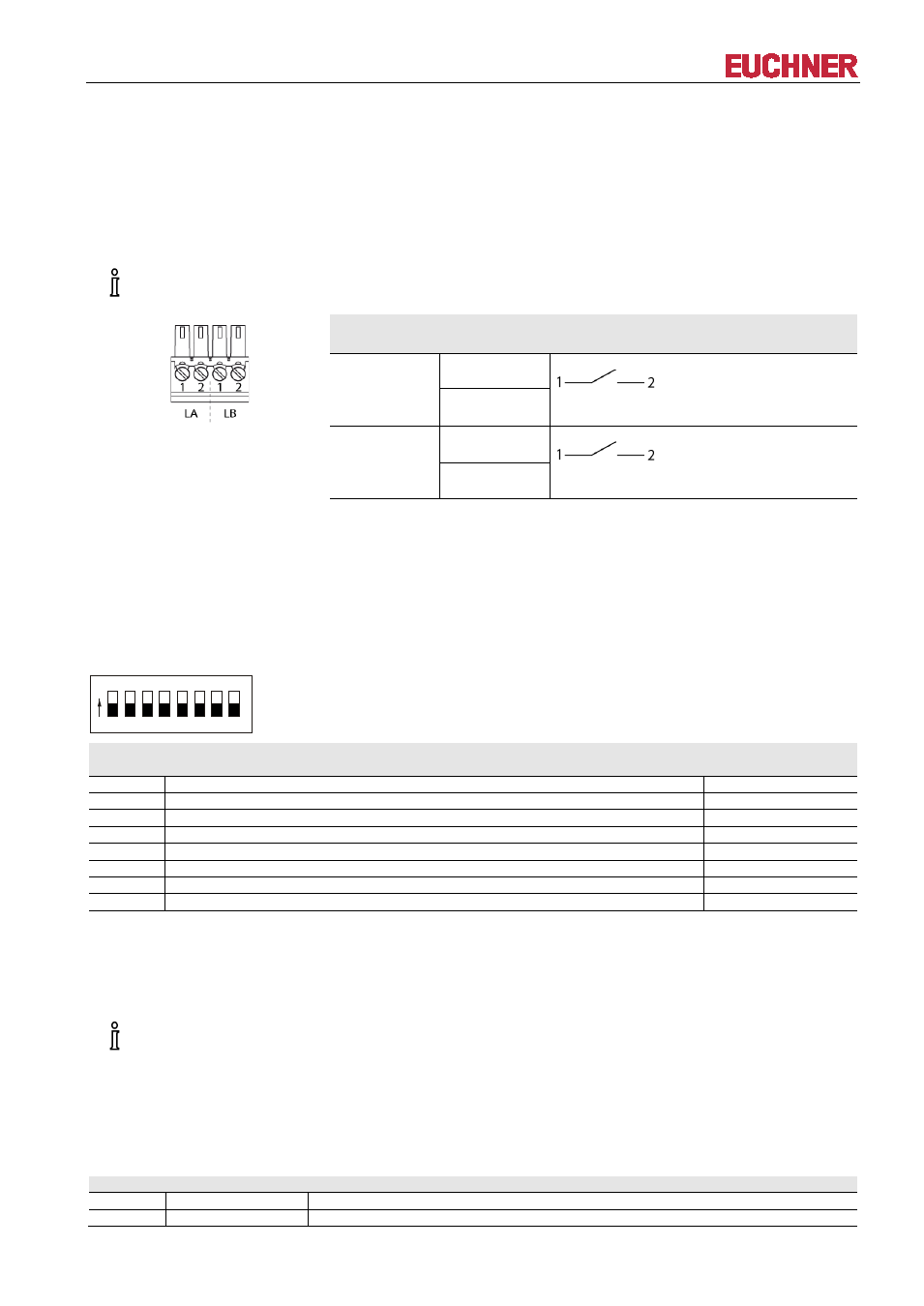

4.3 Connector assignment

4.3.1 USB interface socket

The socket on the Electronic-Key adapter is designed as USB type B.

4.3.2 Screw terminals of switching contacts LA1/LA2 and LB1/LB2 (only EKS FSA)

Information!

The coded plug for the connection of the switching contacts is included with the Electronic-Key adapter.

Coded plug 2 x 2-pole

with screw terminals

Cond. cross-section 0.14 … 1.5 mm²

Tightening torque 0.22 Nm

Channel

Pin

Function

LA

1

Normally open contact

channel LA

2

LB

1

Normally open contact

channel LB

2

4.4 DIP switch settings

Using the DIP switches S1 to S8, various parameters can be set.

Write protection can be enabled using DIP switch S1. In this way the writing of data to the read/write Electronic-
Key is prevented.

The settings are only applied when the power supply is switched on.

DIP switches, 8-pole:

1 2 3 4 5 6 7 8

ON

DIP

switch

Functions

Factory setting

S8

OFF = read/write Electronic-Key ON = read-only Electronic-Key*

OFF

S7

OFF

S6

OFF

S5

OFF

S4

OFF

S3

OFF

S2

OFF

S1

ON = write protection for read/write Electronic-Key

OFF


*

The read-only transponder type can also be read using the Electronic-Key adapter with USB interface. However, we do
not recommend using this transponder type in new installations. The read-only transponder cannot be used in
conjunction with the version EKS FSA.

Information!

It is imperative that all DIP switches without a function (S2 to S7) are set to OFF! In this way problems
with any functions added in the future will be avoided.

4.5 LED indicator

The Electronic-Key adapter operating states are indicated using a 2-color LED on the front.
The illumination of the LED in any color indicates the presence of the operating voltage.

Color

Operating state

Description

Green

Ready

Electronic-Key adapter supplied with power and ready.

Yellow

Electronic key active There is an Electronic-Key in the Electronic-Key adapter and it has been detected.
