4 Technical data

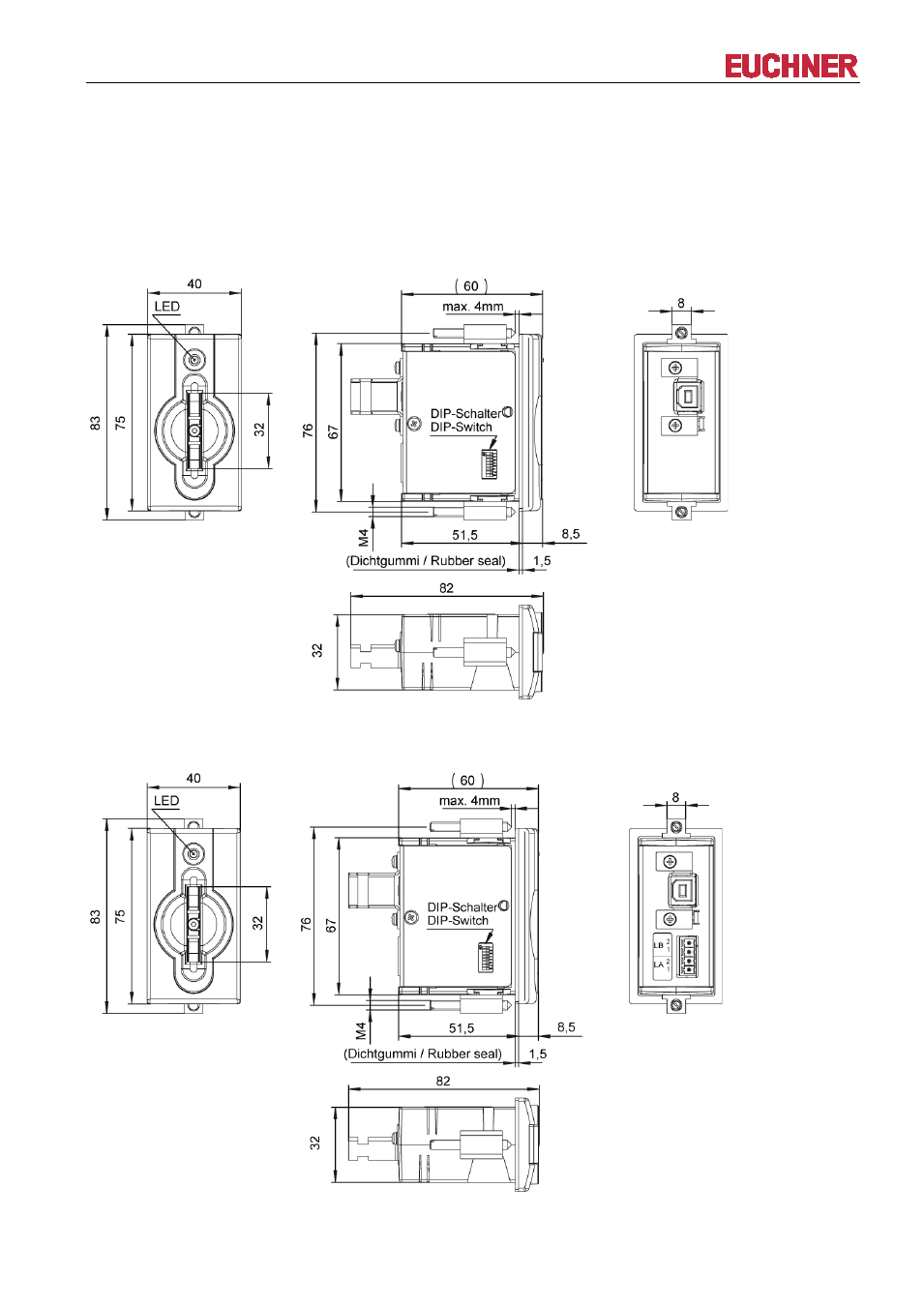

4.1 Dimension drawing of Electronic-Key adapter

For installation in a control panel you must provide a cut-out 33 mm x 68 mm according to DIN 43700.

4.1.1 Version EKS-A-IUX-G01-ST01 with USB interface

4.1.2 Version EKS-A-IUXA-G01-ST01/04 (EKS FSA) with USB interface
