Operating Instructions Safety Switches CES-AR-C.2-CH
29
Technical data for actuator CES-A-BDN-06
Parameter
Value
Unit
min.
typ.
max.
Housing material
Macromelt PA-based plastic
Dimensions
26 x ∅ 6
mm
Weight
0.005
kg
Ambient temperature
- 40
-
+ 70
°C
Degree of protection acc. to EN
IEC 60529
IP 67 / IP 69K
1)
Installation position
Active face opposite read head
Power supply
Inductive via read head
1) With flush installation

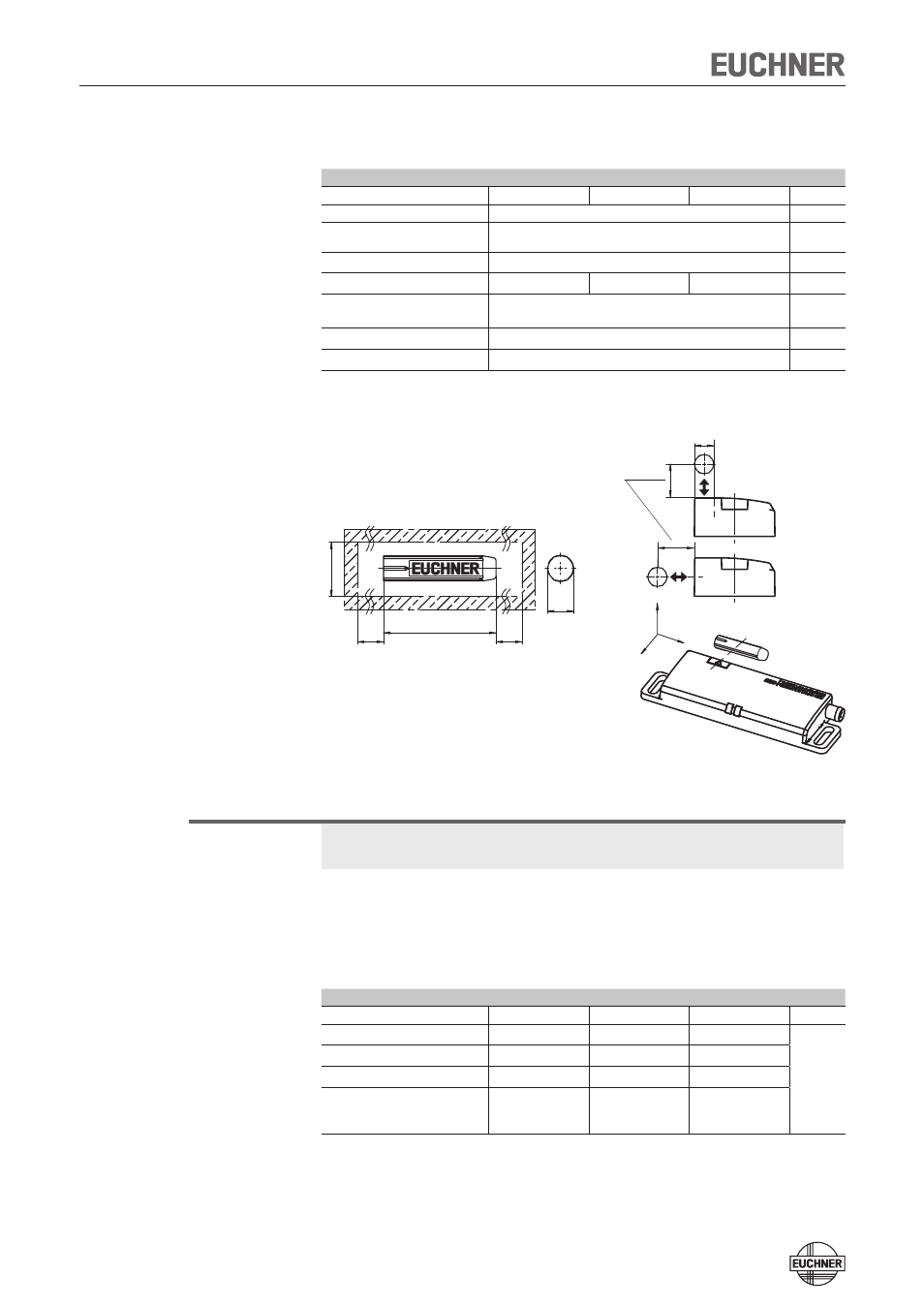

Dimension drawing
Caution!
Do not mount at temperatures below 0 °C.
The actuator can be damaged during mounting.
Switching distances
Operating distance for center offset m = 0
(only in combination with actuator CES-A-BDN-...)
Parameter
Value
Unit
min.
typ.
max.
Switch-on distance
-
19
-
mm
Assured switch-on distance s
ao
1)
14
-
-
Switching hysteresis
1)
-
2
-
Assured switch-off distance s
ar
- in x/z direction
- in y direction
-
-
-
-
40
60
Installation options
26
0
+0,5
Ø
30
* min.
30 *
30 *
6,1
0
+0,1
z
y
x
6
* metal-free zone
Operating distance
