Operating Instructions Safety Switches CES-AR-C.2-CH
16
Warning!
In case of an error, loss of the safety function through incorrect connection.
Ì To ensure safety, both safety outputs (OA and OB) must always be evaluated.
Single-channel use of the safety outputs leads to a loss of the category in
accordance with EN ISO 13849-1.
CES-AR-C #1
IB
1
UB
2 OA
3 OB
4
Plug connector (8-pin)
OUT
5
IA
6
0V
7
RST
8
WH BN GN YE GY PK BU RD
GND
DC 24 V
-K1
-K2
-M1 -M2
M M
A1
A2
A1
A2
13
14
13
14

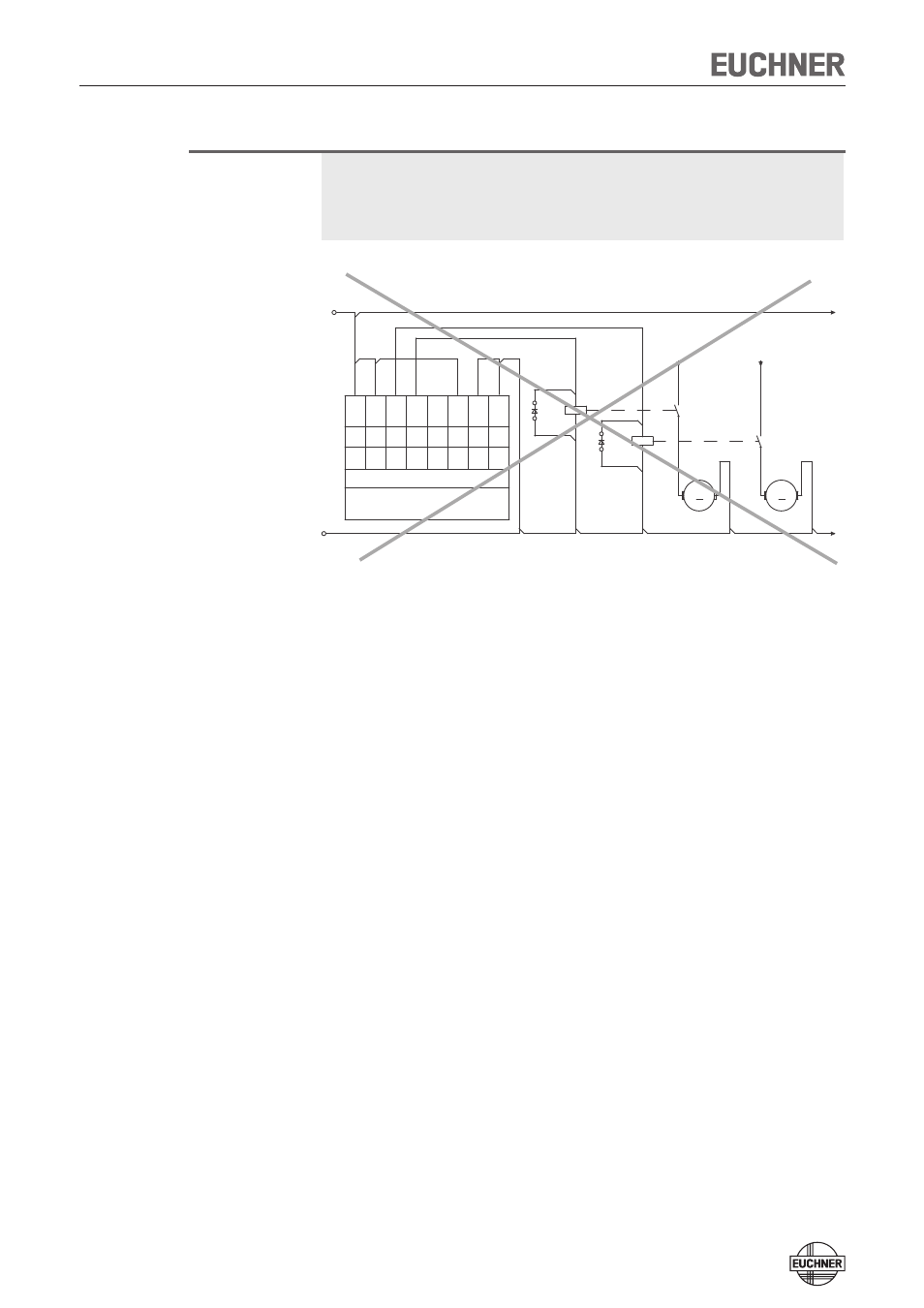

Fig. 4: Example of incorrect connection.
