Operating Instructions Safety System CES-AP-C.2-AH

19

Typical system times

Ready delay: After switching on, the unit carries out a self-test. The system is 

ready for operation only after this time.
Switch-on time of safety outputs: The max. reaction time from the moment 

when the actuator is at the operating distance (safety door closed) to the moment 

when the safety outputs switch on T

on

 is 400 ms.

Risk time according to EN 60947-5-3: If an actuator moves outside the op-

erating distance, the safety outputs OA and OB are deactivated after a maximum 

of 260 ms.
Difference time: The safety outputs OA and OB switch with a slight time offset. 
They have the same signal state at the latest after a difference time of 10 ms.
Clock pulses at the safety outputs: The device generates its own clock signal 

on the output lines OA/OB. A downstream control system must tolerate these test 

pulses, which may have a length of up to 400 µs. 
This can usually be set up in the control systems by parameter assignment. If 

parameter assignment is not possible for your control system or if shorter clock 

pulses are required, please contact our support organization.

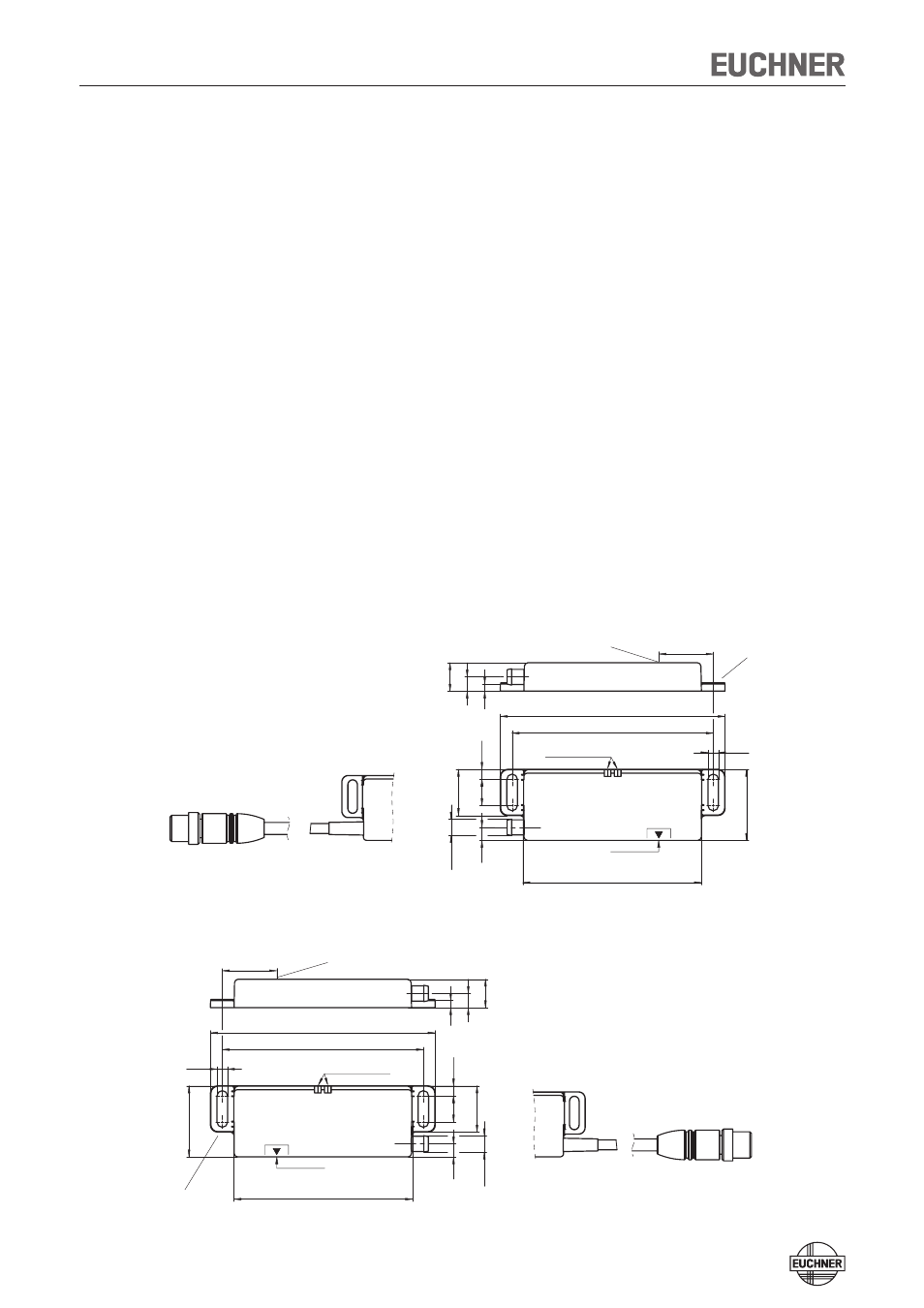

Dimension drawings

5,5

95

85

+0,5

75,5

19,

5

11

30

4,4

6,9

4,25

6

12

3

Ø

ST

AT

E

DIA

23

Safety switch CES-AP-CR2-AH...

Active face

Active face

LEDs

with  

connection cable

5,5

95

85

+0,5

75,5

19,

5

11

30

4,4

4,25

6

12

3

6,9

Ø

ST

AT

E

DIA

23

Safety switch CES-AP-CL2-AH...

Active face

Active face

LEDs

with  

connection cable

Connection cable  

with M12 plug connector

Length of cable piece:

200 mm

Connection cable with M12 

plug connector

Length of cable piece:

200 mm

Fastening lug  

with reinforcement plate

Fastening lug  

with reinforcement plate
