Operating Instructions Safety System CES-A-AEA-02B/CES-A-AEA-04B
18

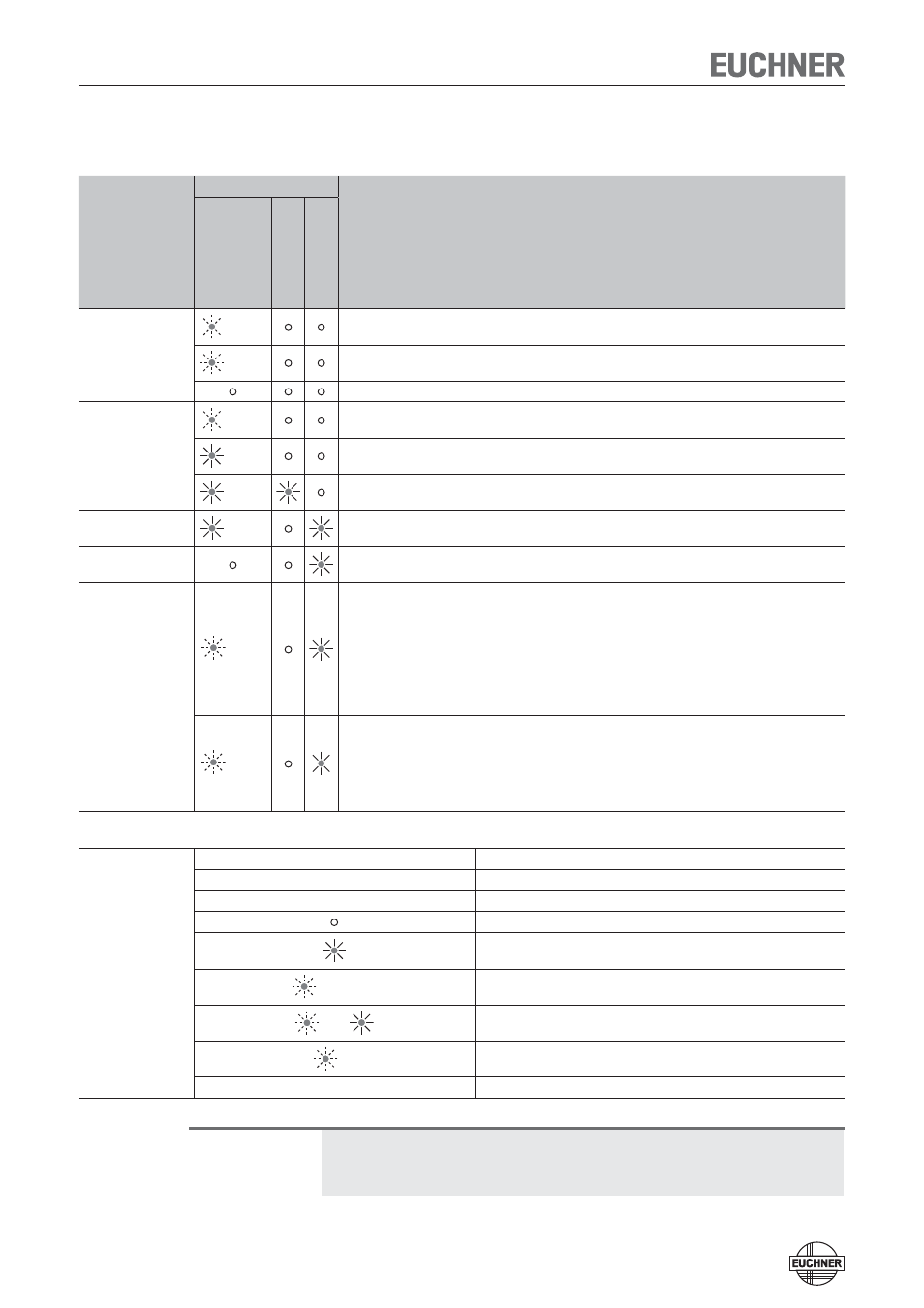

System Status Table
Operating mode
LED
State
ST
A
TE (gr
een)
OUT (yellow) DIA (r
ed)
Setup
4 Hz Initial setup after delivery without jumper connected to J1, J2.
1 Hz Teach-in operation
Acknowledgement of completion of teach-in operation.
Normal operation
15 Hz
(10 s)
Self-test, duration approx. 10 seconds, is performed after the application of the operating voltage U
B
Normal operation, not all monitored doors are closed.
Normal operation, all monitored doors are closed (after pressing the start button, for Manual start operating
mode)
Function test Function test active (TST input = 24 V)
Fault display
Internal component failure or actuator CES-A-BMB in the inadmissible range or excessively high external
interference (EMC)
Operating fault
3 x
Configuration fault:
Teach-in operation must be performed again
Possible causes:
- State change during the teach-in operation
- The DIP switch setting and the configuration did not match during the teach-in operation
- DIP switch setting has been changed without teach-in operation
- The teach-in jumper (J1, J2) was fitted with power supply switched on
- Closed feedback loop (Y1,Y2) present, although a feedback loop was not present during teach-in
- 24 V signal present at the start button input (S) although teach-in was performed with "Automatic start"
operating mode.
4 x
Fault in feedback loop
Possible causes:
- Malfunction of the monitored contactor
- Following removal from the operating distance, actuator is not outside the operating distance long enough.
As a result the feedback loop cannot be closed in this short time. Note the release time for the monitored
contactor.
- Feedback loop was not closed when the evaluation unit was started.
Key to symbols
N 0 Volt or not connected
1 24 Volt
0 0 Volt
LED is not lit
LED is lit
15 Hz (10 s) LED flashes for 10 seconds with 15 Hz
3 x + LED flashes three times and then lights up continuously
3 x LED flashes three times, and this is then repeated
X Any state
Important!
If you cannot find the displayed device status in the system status table, this
indicates that there is an internal device fault. In this case, you should contact
the manufacturer.
