Operating Instructions Safety Switch NM..VZ
Subject to technical modifications; no r
e
sponsibility is accepted for the accuracy of this information. © EUCHNER GmbH + Co. KG
084458-05-08/10 (translation of the original operating instructions)

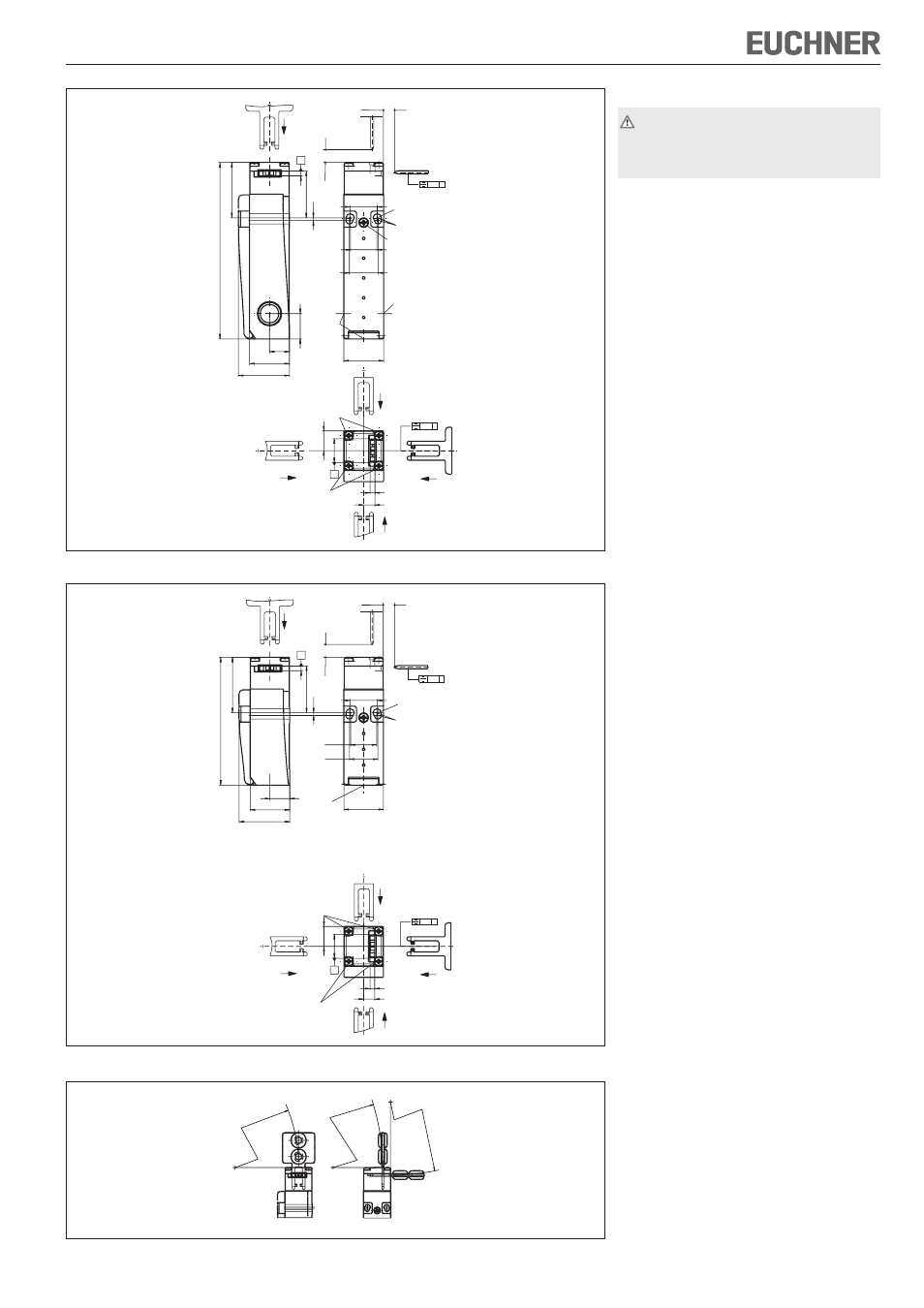

Figure 4: Dimension drawing NM11VZA / NM02VZA / NM12VZA / NM03VZA
Figure 5: Dimension drawing NM01VZA, NM...C2069
Fig. 6: Minimum approach radius: The pivot point of the door must lie in the plane of the entry opening for the actuator
Inspection and service
If damage or wear is found, the complete switch
and actuator assembly must be replaced.
Replacement of individual parts or assemblies
is not permitted!
No servicing is required, but regular inspection of
the following is necessary to ensure trouble-free long-
term operation:
f correct switching function
f secure mounting of components
f dirt and wear
f sealing of cable entry
f loose cable connections.
Note:The year of manufacture can be seen in the
bottom, right corner of the rating plate.
Exclusion of liability under the following
circumstances
f incorrect use
f non-compliance with safety regulations
f installation and electrical connection not performed
by authorized personnel.
f failure to perform functional checks.
EC declaration of conformity
The manufacturer named below herewith declares that
the product fulfills the provisions of the directive(s)
listed below and that the related standards have been
applied.
EUCHNER GmbH + Co. KG
Kohlhammerstraße 16
70771 Leinfelden-Echterdingen, Germany
Directives applied:
f Machinery directive 2006/42/EC
Standards applied:
f EN 60947-5-1:2004 + Cor.:2005 + A1:2009
f EN 1088:1995+A2:2008
Leinfelden, July 2010
Dipl.-Ing. Michael Euchner
Director
Duc Binh Nguyen
Authorized representative empowered to draw up
documentation
The signed EC declaration of conformity is included
with the product.
B
18
16,5
25
17
M16x1,5
∅ 4,2
M16x1,5
*
∅ 5
31
1,
5
36,
5
12,5
25
32
113
3
16
M=0,6Nm
A
12,
5
7
3
Standard
0,8 B
20 +4
20
+4
0,4
C
M=0,6Nm
D
M=0,6Nm
A
B
A
Insertion depth
Insertion depth
* fixed positioning
for safety-related
applications (M5)
B
18
16,5
25
17
∅ 4,2
M16x1,5
*
∅ 5
31
1,
5
36,
5
12,5
25
32
82
3
A
12,
5
7
3
Standard
0,8 B
20 +4
20
+4
0,4 A
C
M=0,6Nm
D
A
B
M=0,6Nm
* fixed positioning
for safety-related
applications (M5)
Insertion depth
Insertion depth
R > 150
R >
200
R
>
200
