Project properties, Theme, Security – ETC Unison Mosaic TouchEditor v1.0 User Manual
Page 34: Set up a lock screen
Unison Mosaic Touch Editor User Manual

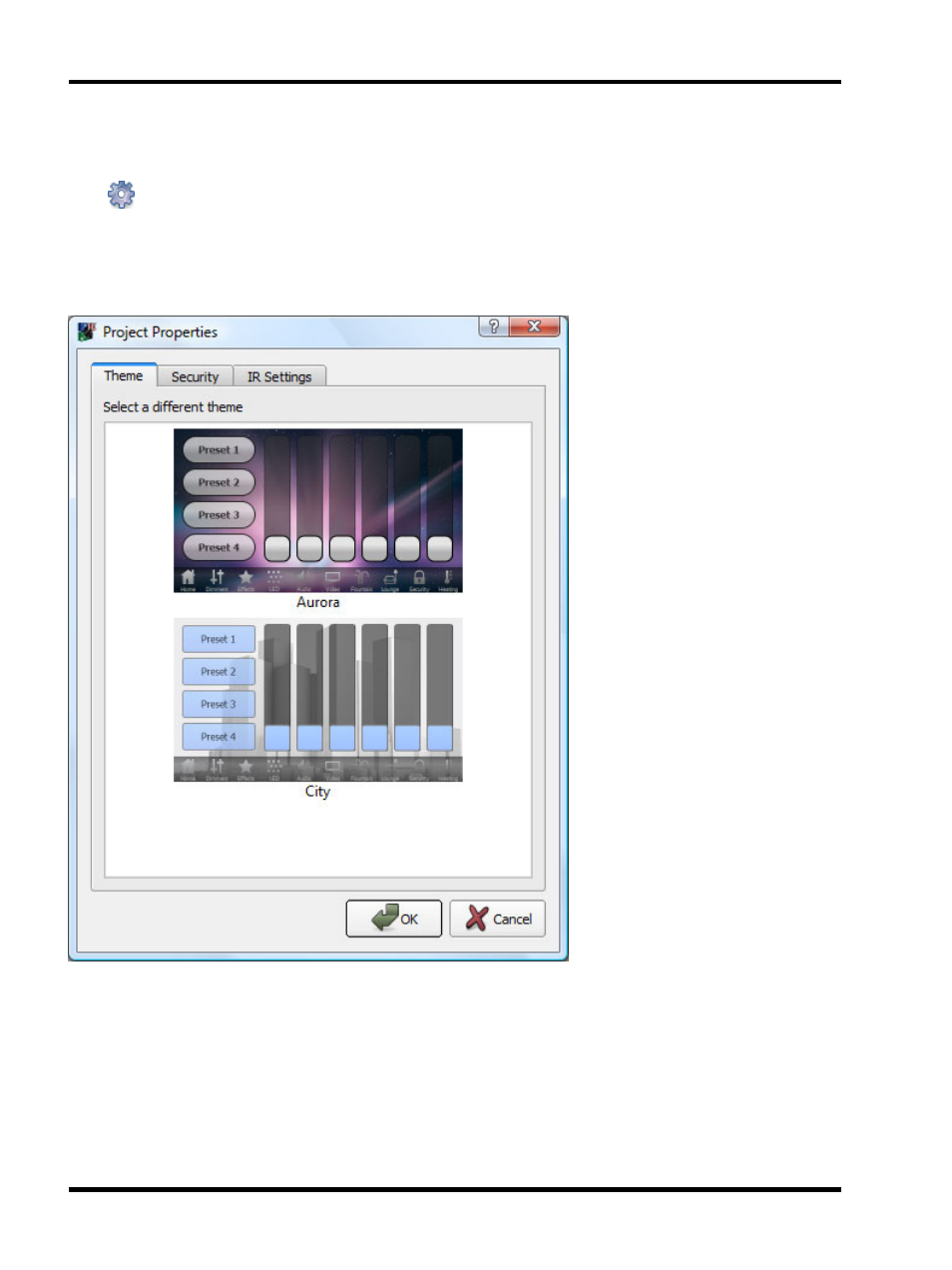

Project Properties
Click
on the toolbar to open the Project Properties dialog. Changes made in this dialog affect the current
project file.
Theme
Select a different theme to apply to all the pages in the current project.
Security
Enable a lock screen for the project. With this setting enabled, it is possible to lock a TPC by setting up a Lock
TPC trigger action in Unison Mosaic Designer. The TPC will show a keypad when locked. When the correct
unlock code is entered, the TPC will perform the Unlock Function, which is either to return to the page that was
visible when the TPC was locked, or to return to the default page (a property of pages). The TPC may also be con-
figured to lock after a period of inactivity - this timeout can be set here.
- 34 -
