Replacing the Lens

Replace the lens if it becomes cracked or badly scratched.

Removing the lens

Step 1:

Place the fixture on a flat, stable work surface. Do Not remove or install the lens with

fixture hanging.

Step 2:

Tilt the front of the fixture down at least 45°.

Step 3:

Use a flat-blade screwdriver to slide the two plastic lens retaining clips on each side of

the lens outward to release the lens.

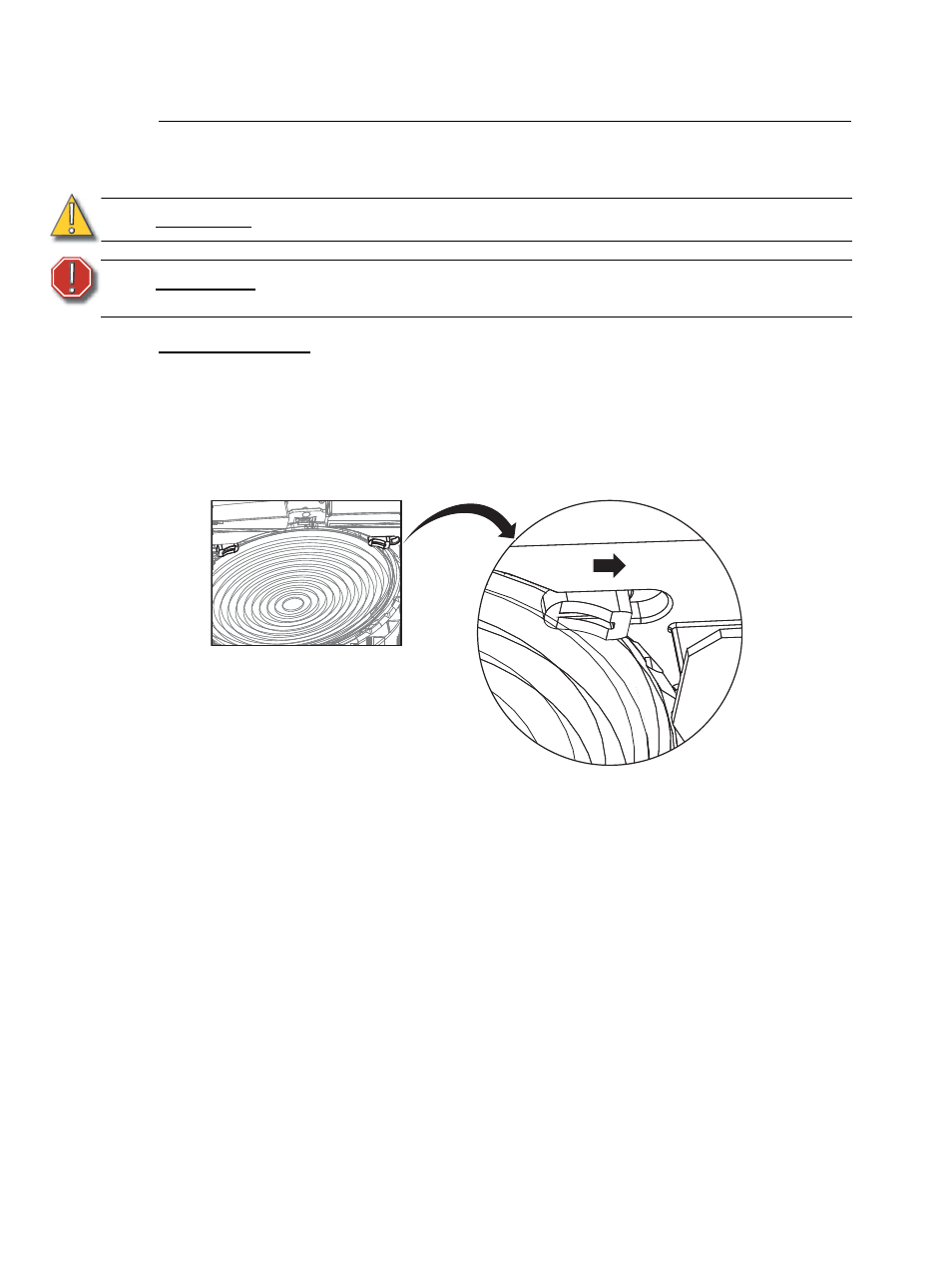

Figure-10 Lens retaining clip.

Step 4:

Allow the top of the lens to drop forward from under the clips while using your hand to

prevent the lens from falling.

C A U T I O N :

Never operate the fixture without a lens in place.

W A R N I N G :

Unplug the fixture and allow it to cool down before attempting to change a

lens.
