Accessory Holder 7
Accessory Holder
The accessory holder is equipped with two slots and a locking door that prevents color frames and
accessories from falling out.

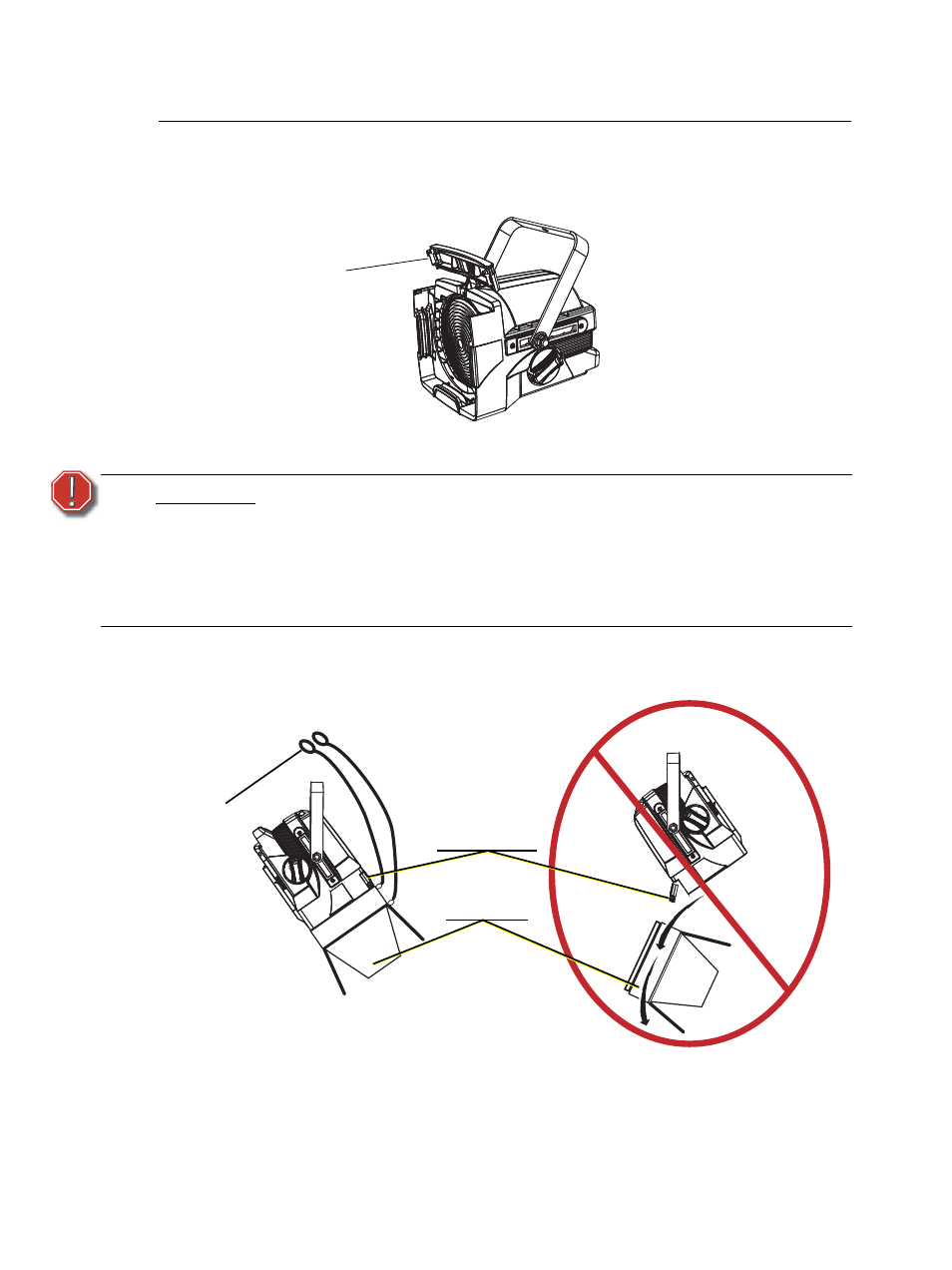

Figure-6 Accessory holder door in the open position.
.
Figure-7 Fixture with accessories.
W A R N I N G : Make sure all color frames and accessories are locked in position with the
accessory door before hanging the fixture.
Accessories such as barn doors and color scrollers must be secured by
safety cable to the mounting position, such as batten, truss, or other secure
structure.
Fixture should never be oriented so that the weight of the accessories, such
as color scrollers or barn doors, rests against the accessory holder door.
Accessory holder
locking door
Accessory
holder door
Accessory
Safety cables to
mounting position
Acceptable
Unacceptable
