E T C I n s t a l l a t i o n G u i d e
Desire Series D40/D60 XTI
D40/D60 XTI Page 2 of 4 Electronic Theatre Controls, Inc.
Electrical
The Desire XTI fixture is provided with a 6’ (1.8m) bare-end waterproof mains power input cable and
should be terminated in a voltage separated junction box (provided by others).
The universal power supply accepts 100-240 VAC 50/60Hz.
Mounting
Desire XTI fixtures can be installed on a pipe with a c-clamp or a suitable rigid permanent base with
secure mounting hardware. The installation base may include a poured concrete pad, factory-supplied
pole-top or wall-mount brackets, or other attachments that meet the following weight and wind-load
requirements:

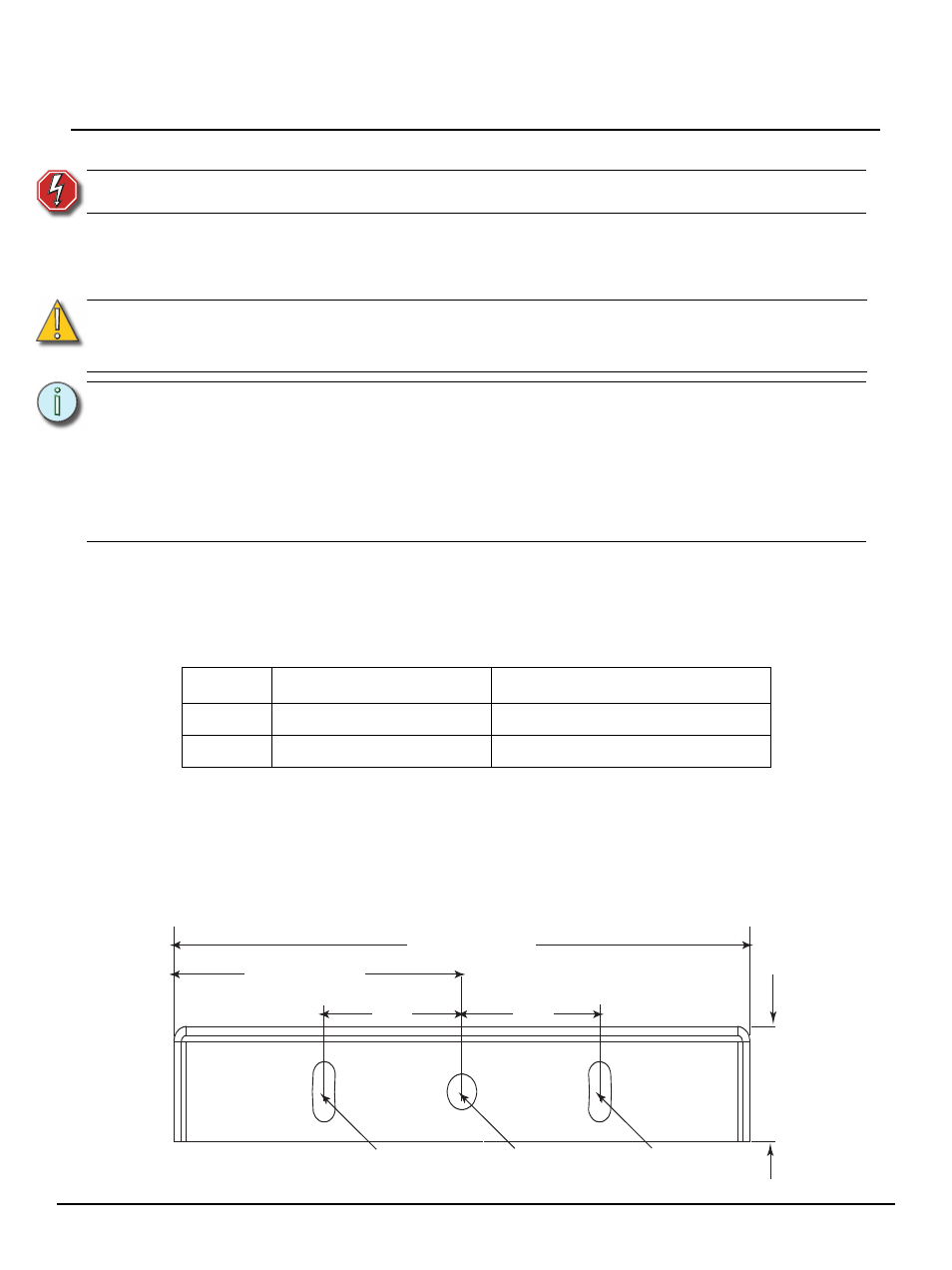

The mounting hole locations are the same for both the D40XTI and D60XTI yokes, however the overall
dimensions are slightly different. Use the measured template below for ground (surface) mounting. Use
application appropriate mounting hardware (bolts, nuts and washers) such as hot dipped zinc or
galvanized stainless steel for wet locations. Mounting hardware is not provided.
W A R N I N G : Ensure the main power supply is off before installing or wiring a fixture.
C A U T I O N : Do not use a fixture for any voltage for which it is not rated. Do not exceed the specified
voltage and current input for any fixture.Connecting the fixture to a voltage outside the
acceptable range may damage the unit and will void the factory warranty.
N o t e : The fixture must be grounded.
Application appropriate electrical junction box with cord grips are required. A voltage
separated junction box is suggested.The junction box must not interfere with fixture
focusing.
The fixture is factory pre-wired. Opening the housing is not required.
The fixture must be connected to a non-dimmable power source. Dimming the unit will
damage the fixture and void the factory warranty.
Weight Wind Load a
D40XTI 16 lbs (7.5 kg) 0.75 (EPA)
D60XTI 24.7 lbs (10.52 kg) 0.95 (EPA)
a) The EPA number is obtained by estimating Cd (wind drag coefficient) and multiplying it with the projected area
of the object. Wind drag coefficients were obtained from AASHTO Sixth Edition 2013.
2.5 inch
(64mm) 2.5 inch
(64mm)
D40XTI 1.7 inch (43mm) D60XTI 1.9 inch (47mm)
D40XTI 5.2 inch (132mm)
D60XTI 5.3 inch (134.9mm)
D40XTI 10.4 inch (264mm)
D60XTI 10.6 inch (269.8mm)
0.53 inch (13mm)
diameter hole 0.40 inch x 0.90 inch
(10mm x 23mm) curved slot 0.40 inch x 0.90 inch
(10mm x 23mm) curved slot
