VIO-Velocity - Operating Manual
Rev 09/09.
Elmo Motion Control
Page 29
Accessories
8.1
Interface & Evaluations Boards
Elmo offers an interface connection board, the SIB-SSA, to simplify the connection of the VIO-Velocity for
prototyping and evaluation. The SIB-SSA connects with a ribbon cable to signal connector J4 and provides
those signals to the user on a convenient terminal strip.

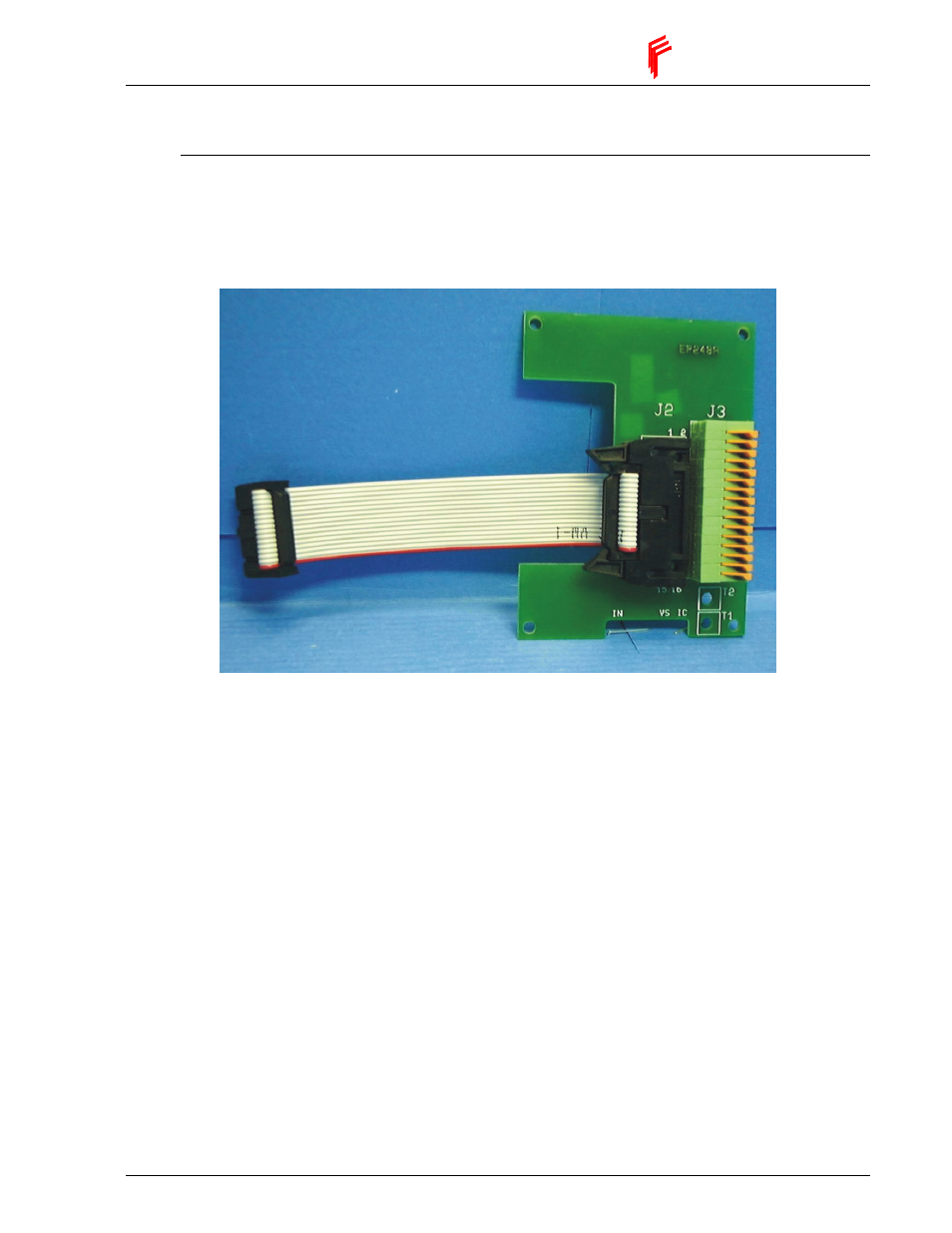

Figure 6: SIB-SSA
