5. General I/O J1 (CBL-CELIO1 -5 )
The digital input cable is a 24-AWG shielded cable. It is connected using an 15-pin Hi-
Density D-sub socket.
Pin Color Signal Pair Function Pin Position
1 Orange IN1 Programmable input 1
2 Cyan IN2
pair
Programmable input 2
3 Purple IN3 Programmable input 3
8 Black IN8
pair
Programmable input 8
4 Gray OUT2 Programmable output 2
5 Pink OUT3
pair
Programmable output 3
6 Blue IN4 Programmable input 4
7 Red IN7
pair
Programmable input 7
9
White/
Yellow
INRET General input return
10
White/
Red
OUTRET2-3
Programmable output
return 2 & 3
11 Yellow OUT4 Programmable output 4
13 Green OUT5
pair
Programmable output 5
12
White/
Black
OUTRET4-5
Programmable output
return 4 & 5
14 Brown OUT1 Programmable output 1
15 White OUTRET 1
pair
Programmable output
return 1

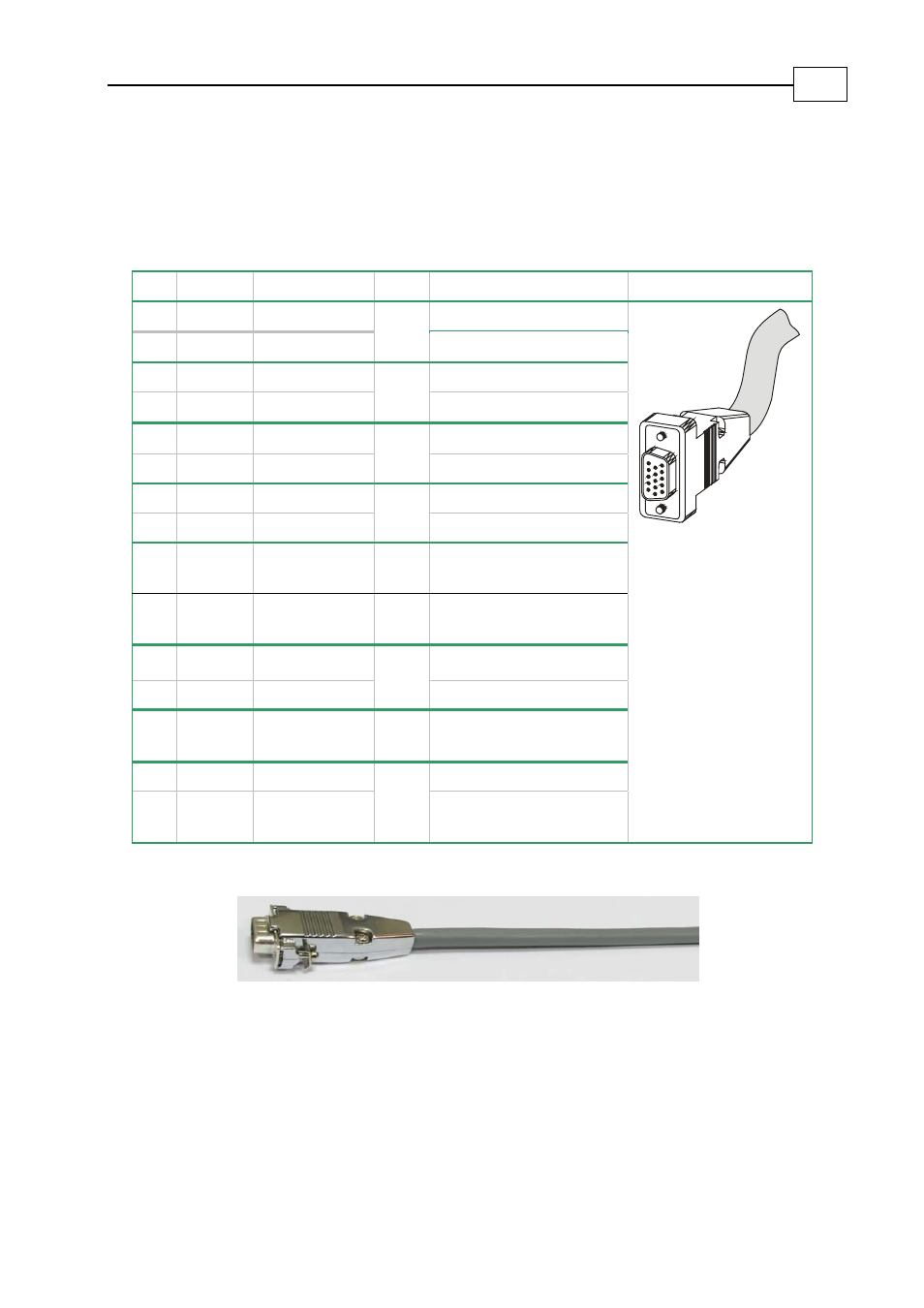

Figure 5: General Purpose I/O Cable (Part No. CBL-CELIO1 -5 )
15 Pin
D-sub
Socket
Cello Cable Kits
MAN-CBLKIT-CEL (Ver. 1.0)
8
