Harmonica and Bassoon Cable Kits Communication Cables
MAN-CBLKIT- (Ver. 3.4)
9-2
9.2 RS-232 Pitchfork Option (JCA-HAR11- 5 )
This cable is connected to the Harmonica through a vent opening on the top of the
Harmonica.
Color
D-type
Female
Pin No.
Signal Description
Brown 2 Tx RS-232 transmit
Green 3 Rx RS-232 receive
White 5 COMRET Communication return
Body Shield Cable Shield
Table 9-2: Communication Cable for the Extended Harmonica Drive

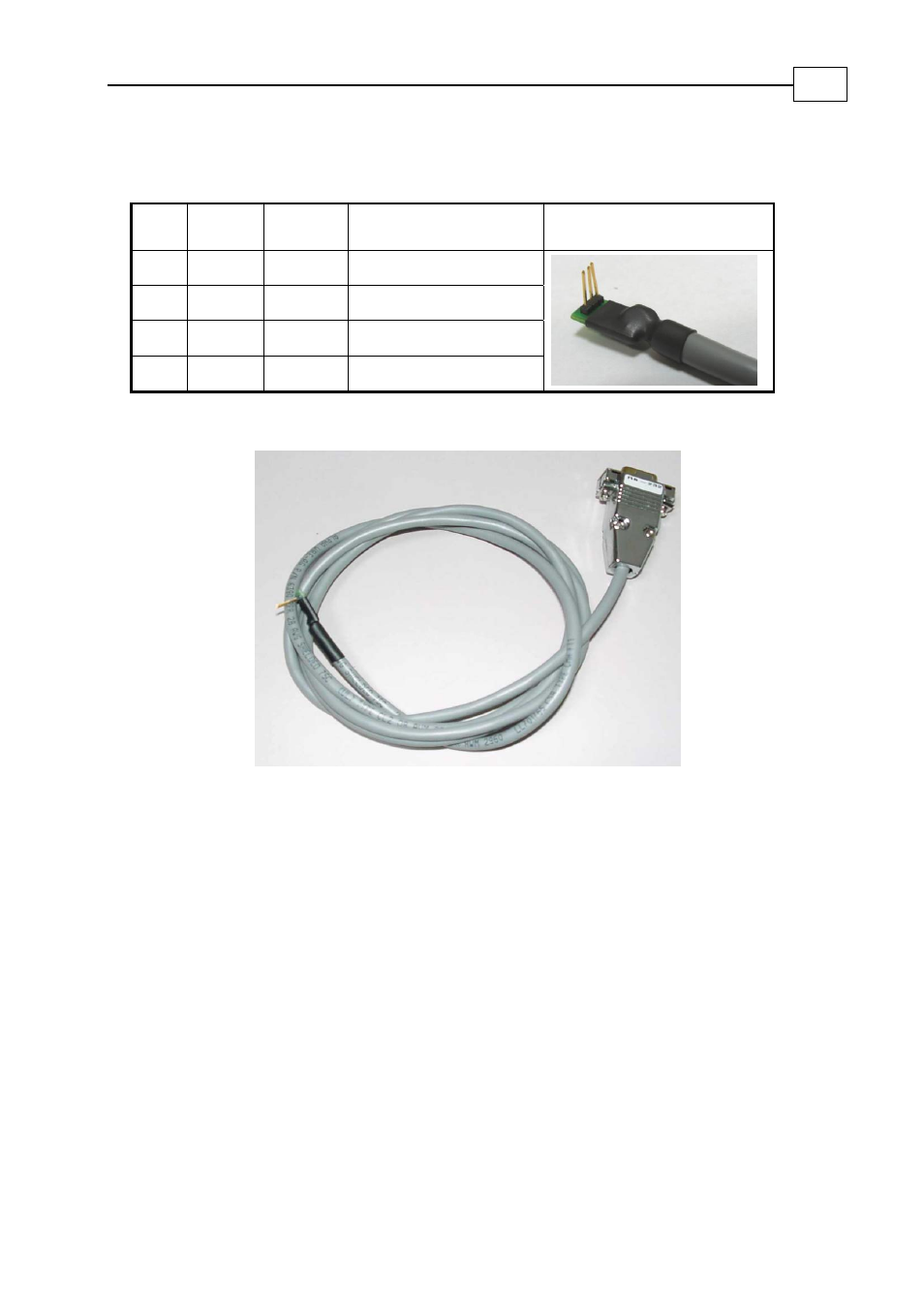

Figure 10: RS-232 Pitchfork Cable (Part No. JCA-HAR11- 5 )
