Harmonica and Bassoon Cable Kits

MAN-CBLKIT- (Ver. 3.4)

7. Analog Input Cable (CBL-MLXAI-

5

)

The analog input cable is a 26 AWG shielded twisted pair cable. It is connected using a
3-pin Molex plug.

Pin No. Color

Twisted &

Shielded

Wire

Signal Description

1 Green Pair

ANLIN1+

Analog

input

1+

2 Yellow ANLIN1-

Analog

input

1-

3 White ANLRET

Analog

ground

1

Table

7-1: Analog Input Cable for the Harmonica and Bassoon Drives

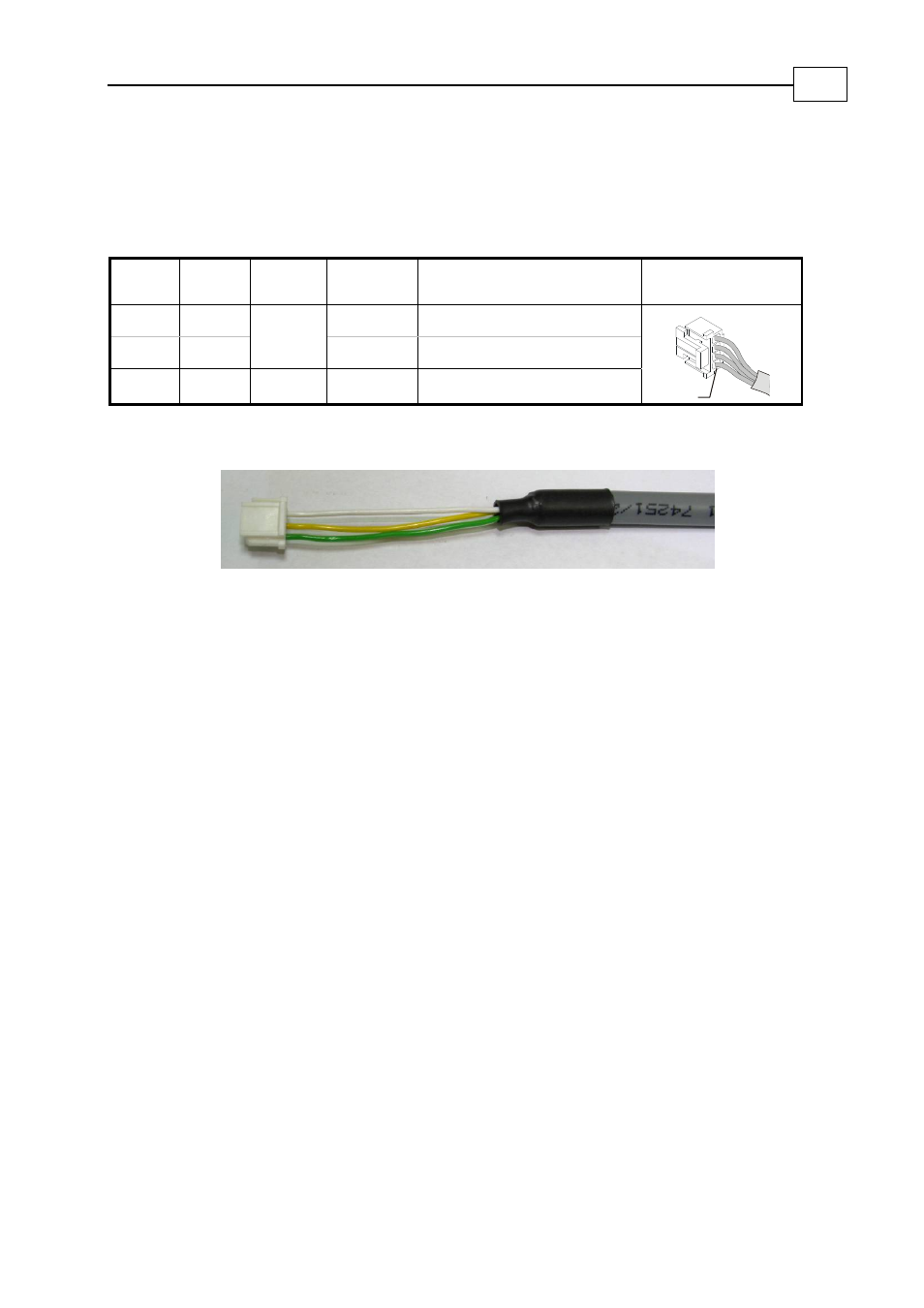

Figure 7: Analog Input Cable (Part No. CBL-MLXAI-

5

)

7-1
