ElmoMC AC Input Digital Servo Drives-Cornet - Manual (Page 18)

Harmonica and Bassoon Cable Kits Communication Cables
MAN-CBLKIT- (Ver. 3.4)
9-3
9.3 CAN Option (CBL-RJ45CAN1- 5 )
RJ45
Pin No.
Color
D-type
Female
Pin No.
Signal Description
1 Green 7 CAN-H CAN_H bus line
2 Yellow 2 CAN_L CAN_L bus line
3 White 3 CAN_GND CAN ground
4 — — — —
5 — — — —
6 — — — —
7 — — — —
8 — — — —
Body Drain Wire Body Shield Cable Shield
1

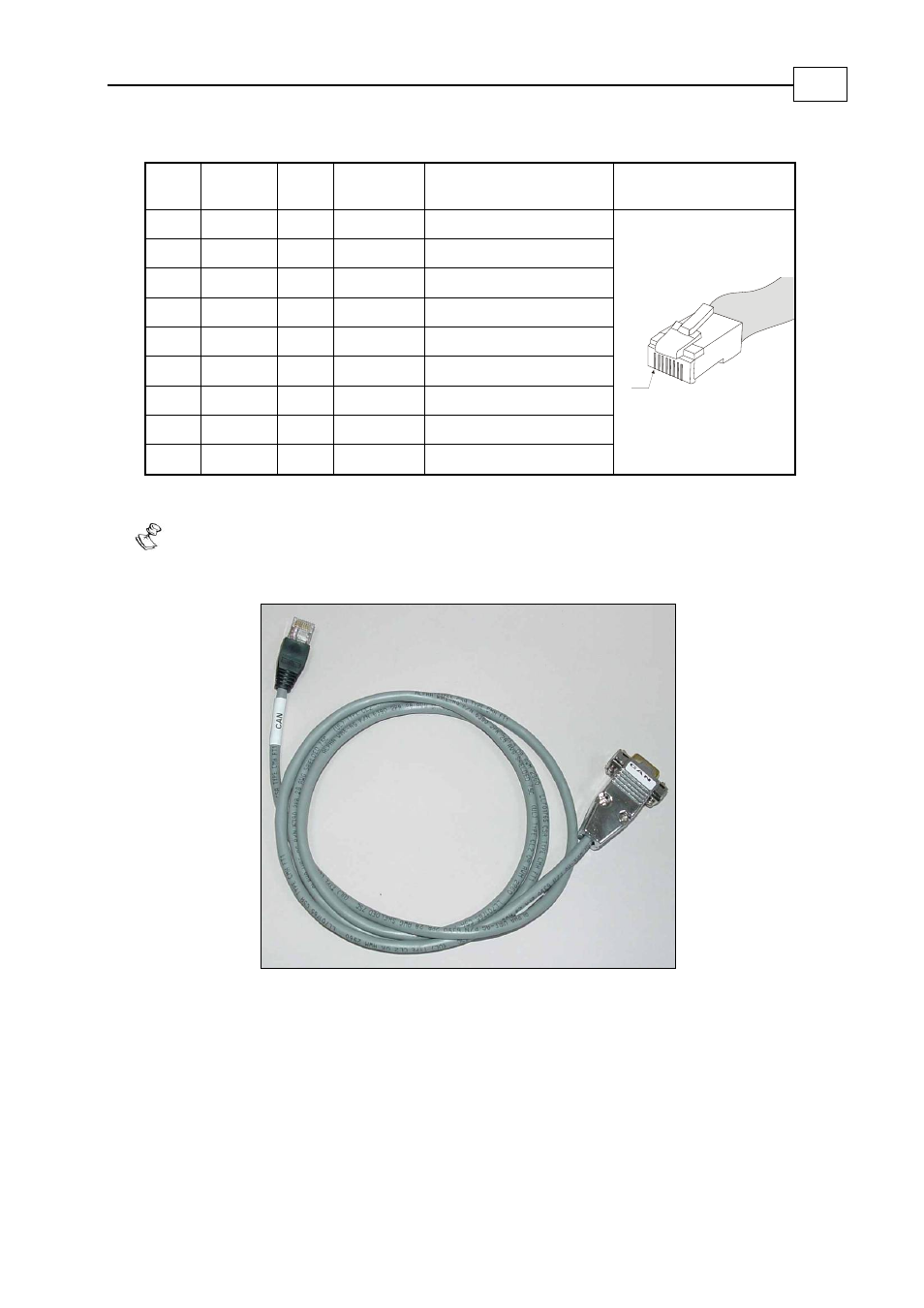

Table 9-3: CAN RJ-45 Option Cable for the Harmonica and Bassoon Drives
The shields of the RJ-45 and D-type plugs are connected to each other through the
cable braid.
Figure 11: CAN Cable (Part No. CBL-RJ45CAN1- 5 )
