Harmonica and Bassoon Cable Kits
MAN-CBLKIT- (Ver. 3.4)
10-1
10. Motor Power Cables
There are three types of power cables:
General Purpose Motor Power Cable (CBL-MTRPWR) has pin terminals on the
SimplIQ
drive side and is open on the motor side.
CBL-MTRPWR1 has pin terminals on the
SimplIQ
drive side and a 4-pole socket on the
motor side for Metronix APM-SAR, SA, SB and SC motors.
CBL-MTRPWR2 has pin terminals on the
SimplIQ
drive side and a 4-pole Amphenol
connector on the motor side for Metronix APM-SE motors.
10.1 Motor Power Cable (CBL-MTRPWR-
5
for General
Purpose Use)
CBL-MTRPWR is a general purpose motor power cable. It is made from four 14-AWG
shielded wires with pin terminals on the
SimplIQ
drive side. The other end is open so that
it can be attached to a customer-specific connector.
Color Signal
Description
White U
Motor
Phase
U
Black V
Motor
Phase
V
Red W
Motor
Phase
W
Green Earth
Ground
Table
10-1: General Purpose Motor Power Cable for the Harmonica and Bassoon Drives

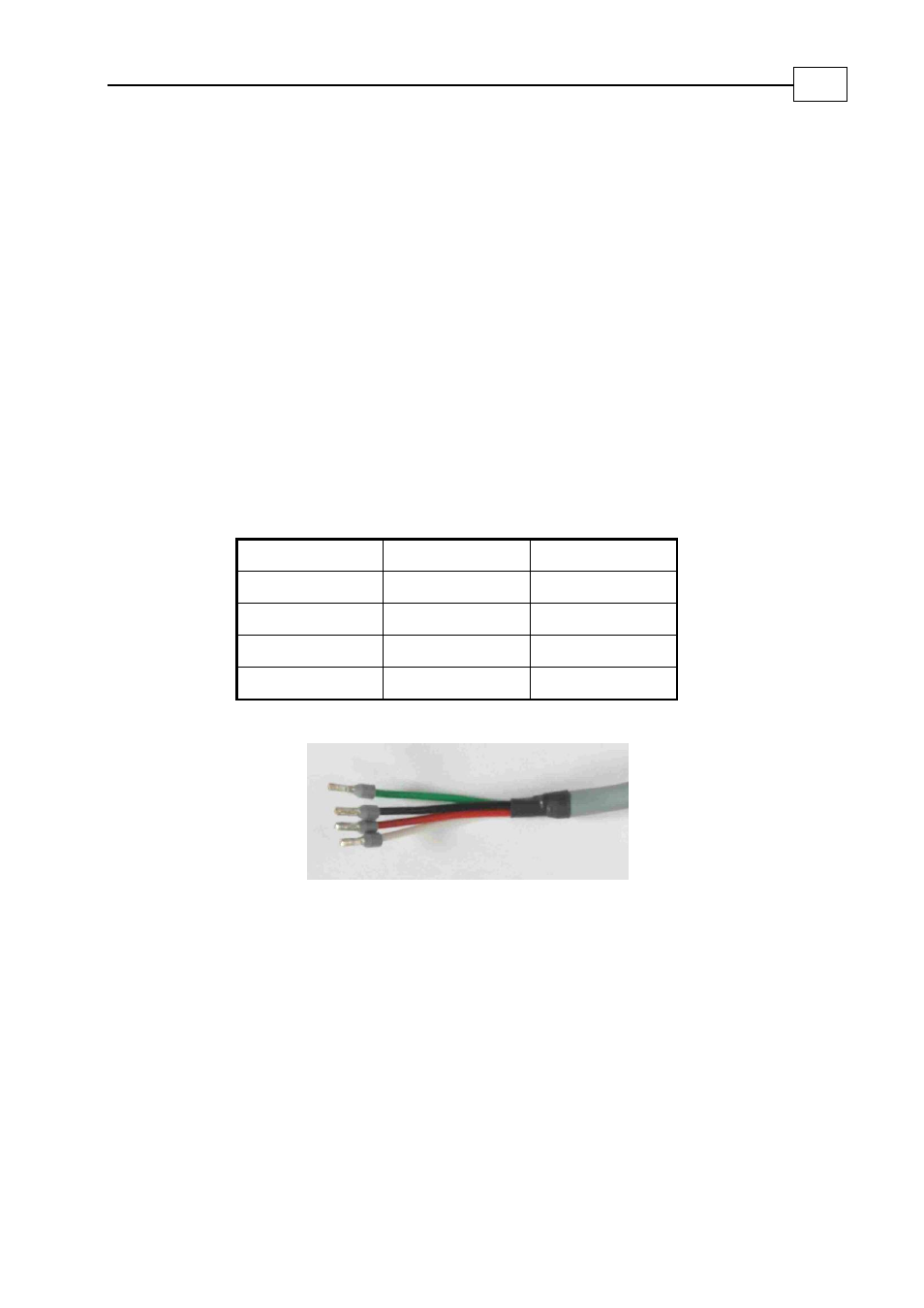

Figure 13: General Purpose Motor Power Cable (Part No. CBL-MTRPWR-
5
)
