Elkhart Brass SPIT-FIRE 8394053 Monitor User Manual
Page 22
22

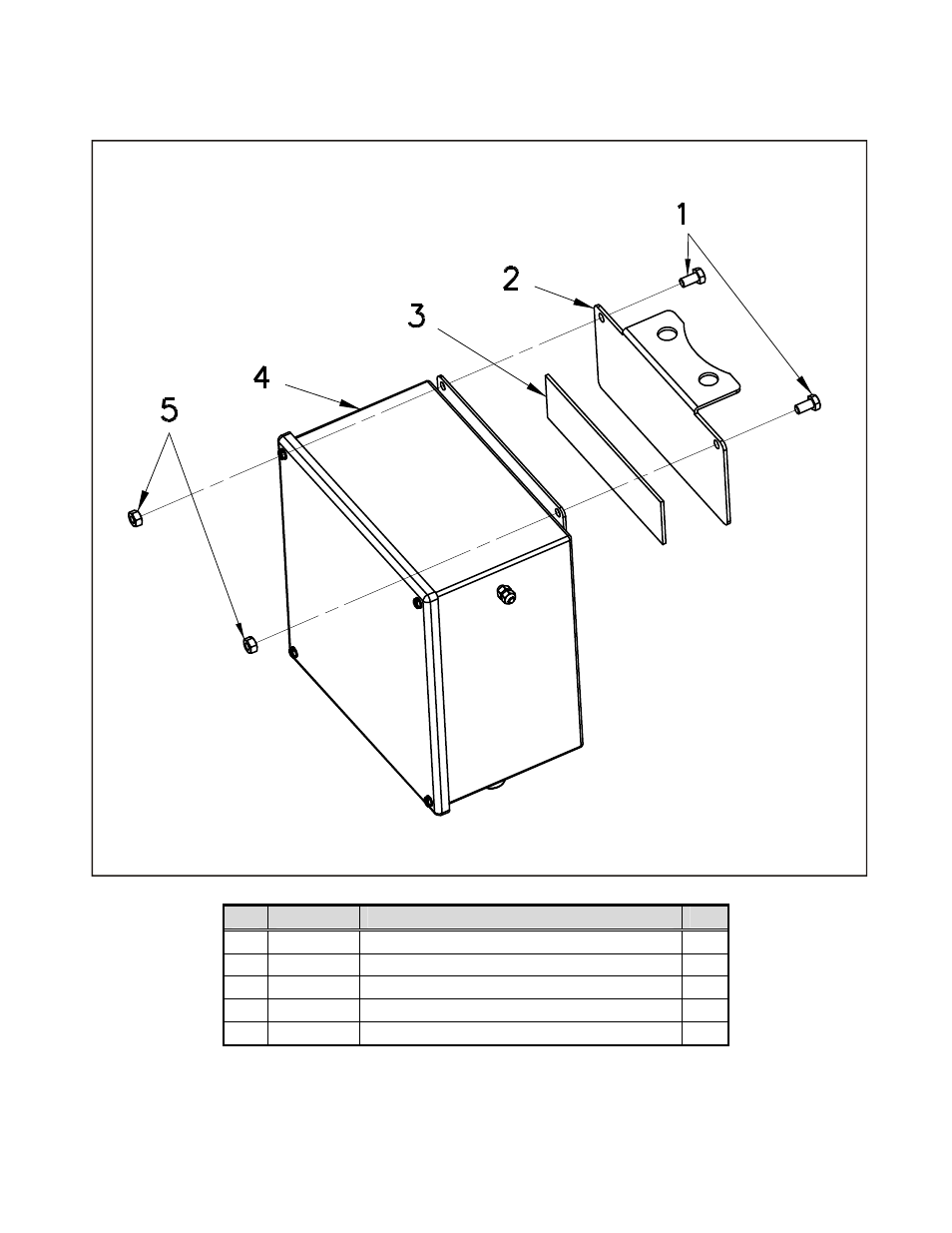

Illustration 11
10. Junction Box & Bracket Assembly
Det Part No.
Description
Qty
1
65137000 Screw – Mach. (5/16-18 x 5/8-Lg. Hex.)
2
2
18357000 Bracket – Junction Box
1
3
65570001 Spacer – Rubber (Adhesive Back)
1
4
81491001 Motor Cable Junction Box Assembly
1
5
47484000 Nut – Hex. (5/16-18 Thread) S/S
2
Motor Cable Junction Box & Bracket Assembly
Part Number 81493001
Illustration 12
