21

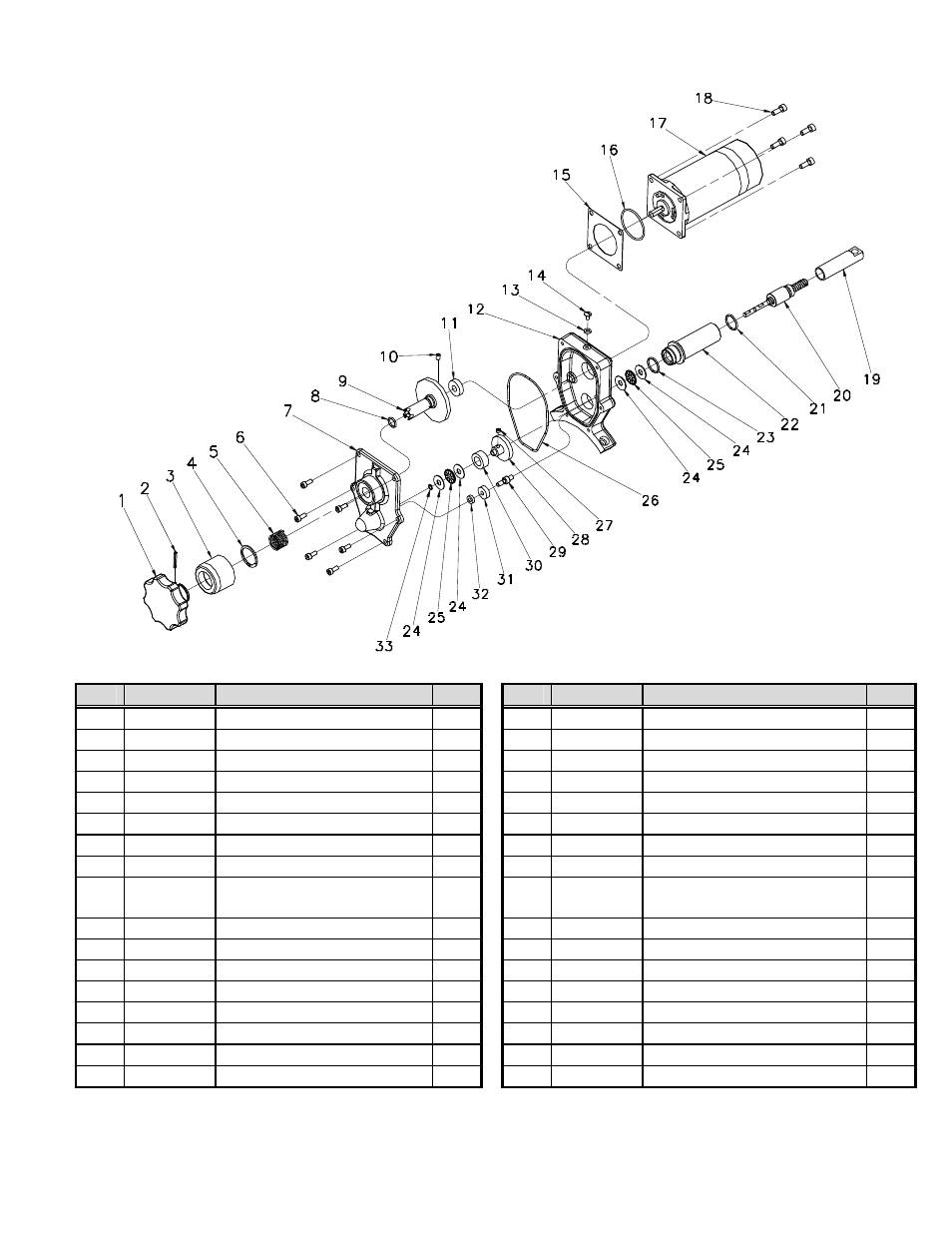

9. Electric Nozzle Actuator Assembly
Det Part No. Description Qty Det Part No. Description Qty
1 42033001 Knob – Override 1 18 61037000 Screw-Cap (#10-24 x ½-Lg.) 4
2 51256000 Pin – Roll 1 19 59086001 Push Rod (Brass) 1
3 10812001 Adapter – Override 1 20 65052000 Epicyclical Ball Screw 1
4 57621000 Ring – Retainer 1 21 57295000 O - Ring (AS568 - 016) 1
5 62148000 Spring – Coil 1 22 67179000 Tube - Push Rod 1
6 63781000 Screw-Cap (#8-32 x 3/8-Lg.) 6 23 57438000 O - Ring AS568 – 018) 1
7 23646001 Cover - Gear Case 1 24 71515000 Washer - Thrust (0.250) 4
8 57298000 O-Ring (AS568 - 012) 1 25 17701000 Bearing - Thrust (0.250) 2
9 33728001 Spur Gear & Shaft
Assembly
1 26 57522000 O - Ring (AS568 - 042) 1
10 63693000 Screw-Set (#8-32 x ¼-Lg.) 1 27 65201000 Screw-Set (#10-32 x 1/8-Lg.) 1
11 65568000 Spacer – Gear 1 28 33726000 Gear – Spur 1
12 23587001 Gear Case 1 29 61503000 Shaft - Gear (Idler) 1
13 33277000 Gasket - Rubber (Neoprene) 1 30 17704000 Bearing – Sleeve (Plastic) 1
14 65127000 Screw-Cap (#8-32 x ¼-Lg.) 1 31 33727000 Gear - Spur (Idler) .5-P.D. 1
15 33806000 Gasket - Insulator (Nylon) 1 32 65552000 Spacer - Idler Gear 1
16 57521000 O - Ring (AS568 - 028) 1 33 58937000 Ring – Retainer 1
17 46088000 Motor - Electric (120-VAC) 1
120-VAC Electric Nozzle Actuator Parts List
Part Number 81343001
