20
8. Model Number SM-2000BE-HL Nozzle
EL K H AR T B R A SS M FG . C O ., I N C .
FO R U SE IN C LA S S 1 , D IV IS IO N 2 H A ZA RD O U S A RE A
II 3 G C
E E x n A I IC T 3
EL
K H
AR
T BRA
S S
Det Part No. Description Qty Det Part No. Description Qty
1 63311001 Swivel - B/G, 3.5-NHT 1 12 61078001 Screw-Cap (Truss Head) 1
2 61221000 Screw-Set(3/8-24x5/16-Lg) 1 13 57503000 O - Ring (AS568 - 155) 1
3 33186000 Gasket - Rubber, 3.5-NHT 1 14 57524000 O - Ring (AS568 - 157) 1
4 15016000 Ball (0.187-Dia.) Brass 71 15 44535000 Label – Identification 1
5 11777001 Adapter - Fine Thd. x B/G 1 16 17160001 Body - Nozzle 1
6 61040000 Screw - Cap (¼-24 x ½-Lg.) 2 17 57512000 O - Ring (AS568 - 162) 1
7 81407001 Nozzle Actuator Assembly 1 18 62187001 Stem - Nozzle 1
8 63421001 Base - Stem S/S 1 19 62136000 Spring - Compression 1
9 61222000 Screw-Set(3/8-24x3/16-Lg.) 3 20 57318000 O - Ring (AS568 - 142) 1
10 66388001 Tip - Nozzle 1 21 81146001 Piston Sub - Assembly 1
11 17837001 Bracket - Push Rod 1 22 33661000 Bumper - Knobby 1

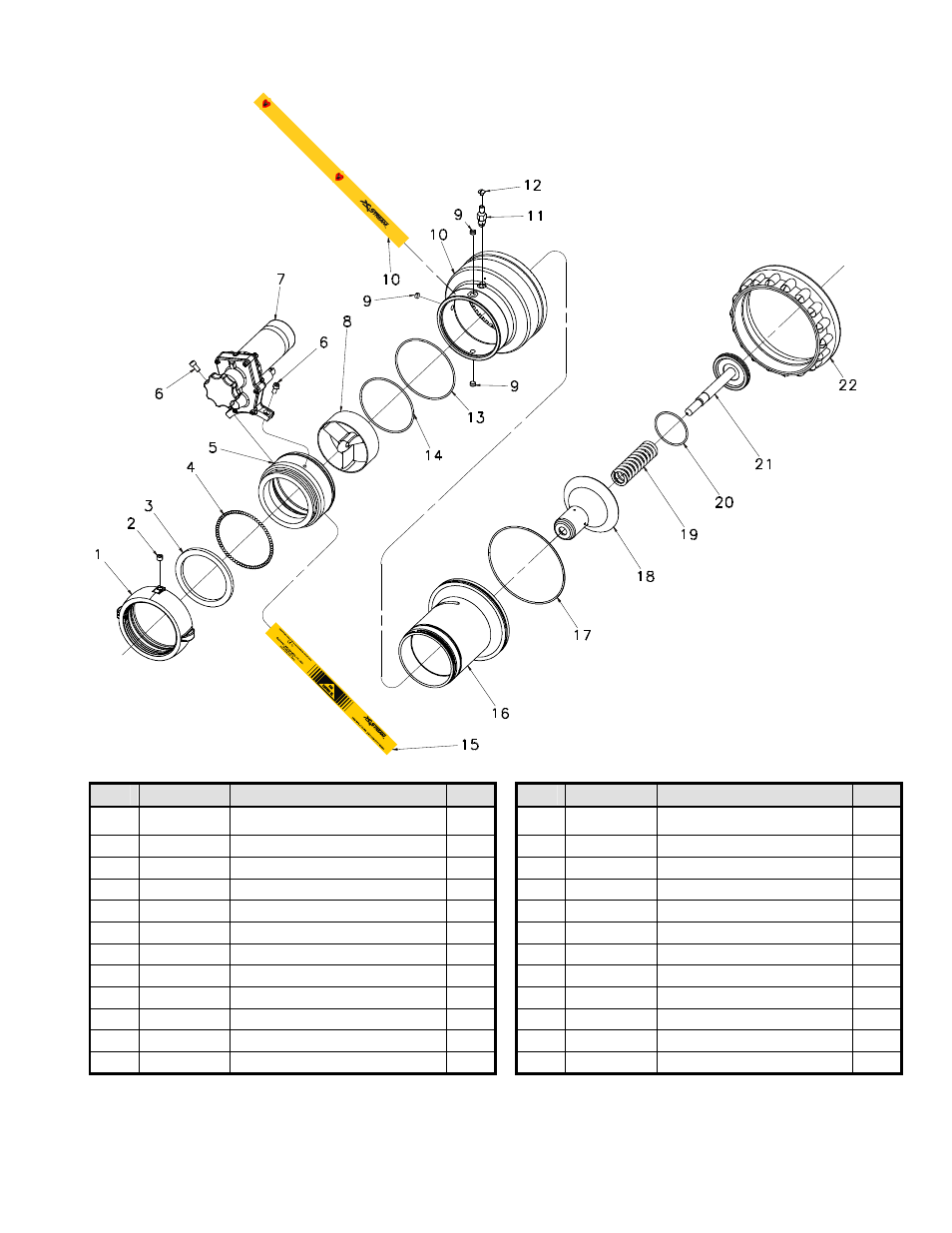

SM-2000BE-HL Nozzle Parts List
Illustration 10
