19

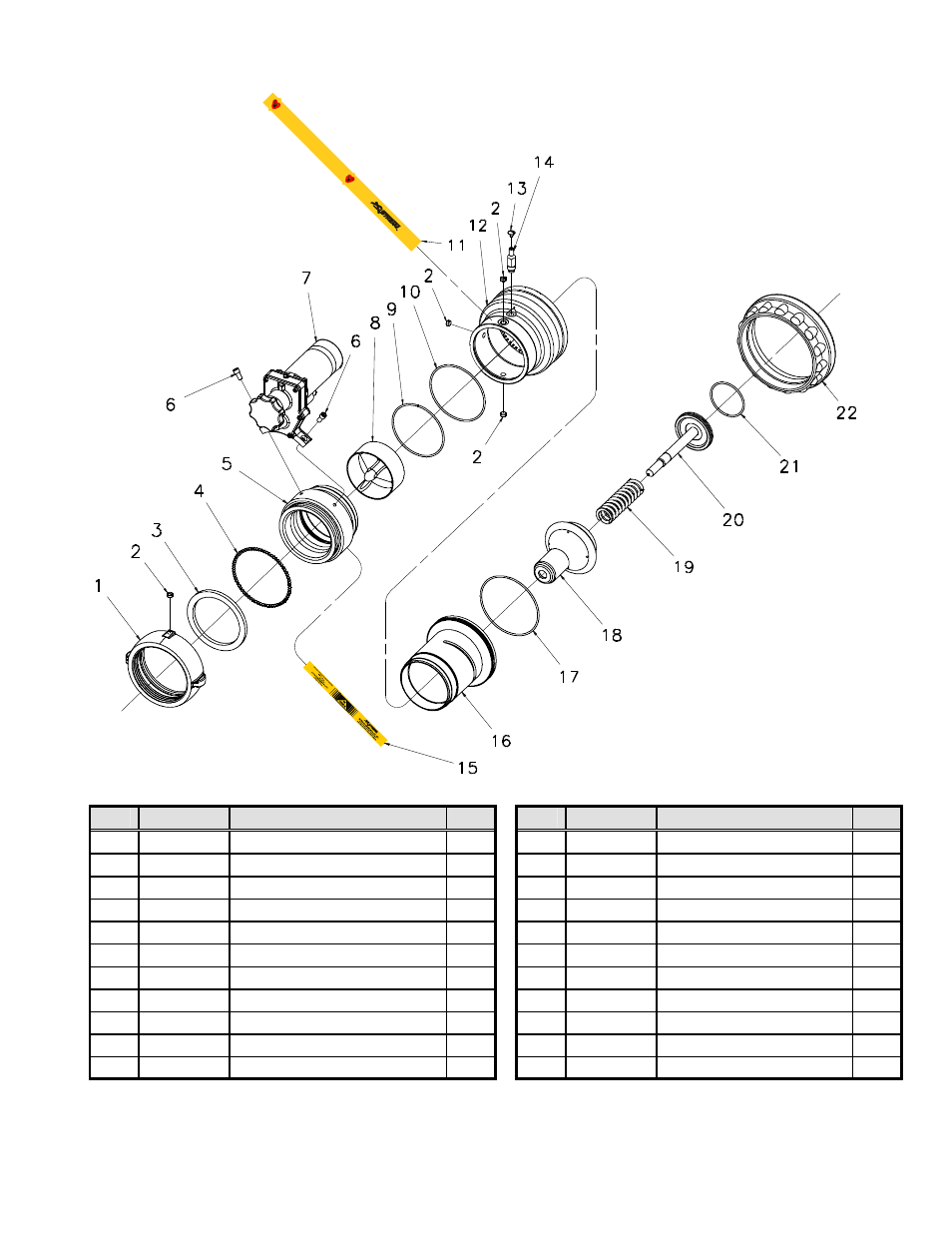

7. Model Number SM-1250BE-HL Nozzle
ELK
H ART
B
RAS
S
Det Part No. Description Qty Det Part No. Description Qty
1 63311001 Swivel - B/G, 3.5-NHT 1 12 66394001 Tip - Nozzle 1
2 61221000 Screw-Set (3/8-24x5/16-Lg) 1 13 61078001 Screw - Cap (Truss Head) 1
3 33186000 Gasket - Rubber, 3.5-NHT 1 14 17838001 Bracket - Push Rod 1
4 15016000 Ball (0.187-Dia.) Brass 71 15 44534000 Label – Identification 1
5 11778001 Adapter - Fine Thd. x B/G 1 16 17165001 Body - Nozzle 1
6 61040000 Screw - Cap (¼-24 x ½-Lg.) 2 17 57447000 O - Ring (AS568 - 156) 1
7 81407001 Nozzle Actuator Assembly 1 18 62187001 Stem - Nozzle 1
8 63421001 Base - Stem S/S 1 19 62136000 Spring - Compression 1
9 57436000 O - Ring (AS568 - 154) 1 20 81146001 Piston Sub - Assembly 1
10 57503000 O - Ring (AS568 - 155) 1 21 57318000 O - Ring (AS568 - 142) 1
11 44365000 Label – Tip 1 22 33661000 Bumper - Knobby 1
SM-1250BE-HL Nozzle Parts List
Illustration 9
