22
Understanding System LEDs
 LED Notations
o DS1 – Lights when either nozzle direction is engaged.
o DS2 – Lights when either of the AUX buttons are pushed.
o DS3 – Comes on when the UP or DOWN button is pressed.
o DS4 – Comes on with any horizontal movement.
o DS5 – See DS5 Status Indicator Table below.
o DS6 – Lights when power is applied.
Table 6: DS5 Status Indicator LED Table
Reference Indication Meaning
1 Blinks 6 times rapidly during startup
Visual indication that the controller is
initializing – normal operation.
2
Blinks 6 times rapidly during startup, then
blinks at ¼ second rate continuously
SW4 in wrong position – must be in position 1
or 2 for proper 8294-06 or 8394-07, or
position 3 for 8294-06 EXT operation.
3 Blinks at ½ second rate
Truck battery voltage <8 volts – light will blink
until power is lost or restored.
DS5
DS2
B
A
DS1
SW4
SW1
DS4
P2
DS3
P3
DS6
P1
P4
SW2
SW3

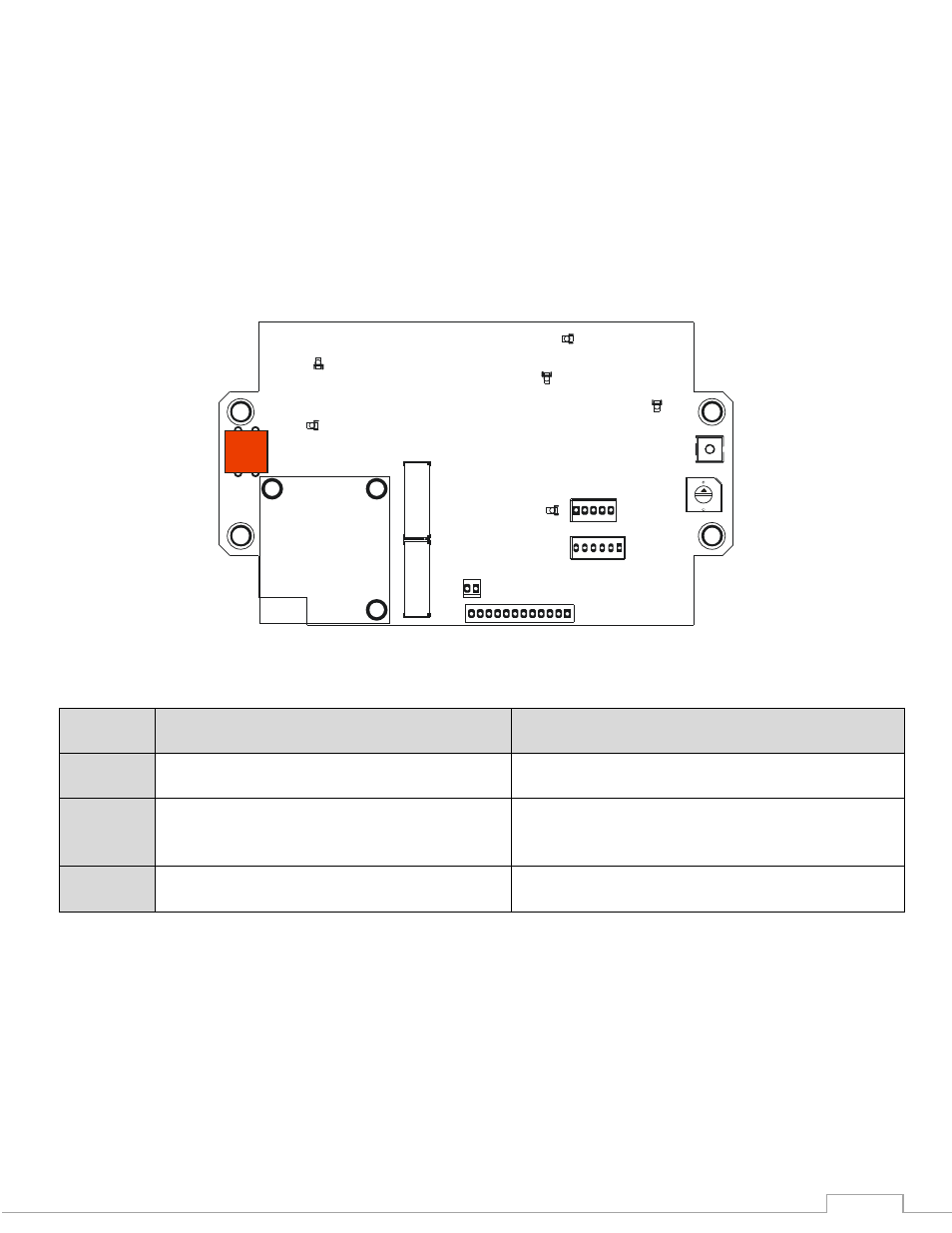

Figure 5: System LED Notations
