Elkhart Brass Copperhead 8593-04 Monitor User Manual

Page 16

Table 3: DS5 Status Indicator LED Table

Reference

Indication

Meaning

Light comes on for 1 second when

monitor stops

Motor has reached stall current and

performing normal shutdown.

Blinks 3 times after pressing and holding

Red Programming Button for more than 5

seconds.

Limit/stow programming sequence initiated.

NOTE: This must be completed before normal

monitor operation is allowed.

Blinks 3 times per second during startup

Visual indication that the controller is

initializing – normal operation.

Blinks 2 times per second during startup

then blinks at ¼ second rate continuously

SW4 in wrong position – must be in position E

or 8 for proper 8593-04 monitor operation.

Blinks at ½ second rate

Truck battery voltage is <8 volts – light will

blink until power is lost or is restored – early

power fail (EPF) indication.

Handheld Controller
Battery Type
The handheld controller uses two AA Lithium batteries. The low battery light will illuminate with

approximately two hours of transmission time remaining before the batteries are completely

discharged. Due to the time-voltage characteristics of rechargeable batteries, this time could be

drastically reduced if rechargeable batteries are used.

Battery Replacement
The batteries can be replaced with any standard fresh AA Lithium batteries.



Turn the controller power off.



Remove the battery cover.



Remove both of the old AA batteries.



Wait 5 minutes, and then install new AA Lithium batteries.



Replace the battery cover.

DS5

DS2

DS1

SW4

SW1

DS4

DS3

DS6

SW2

SW3

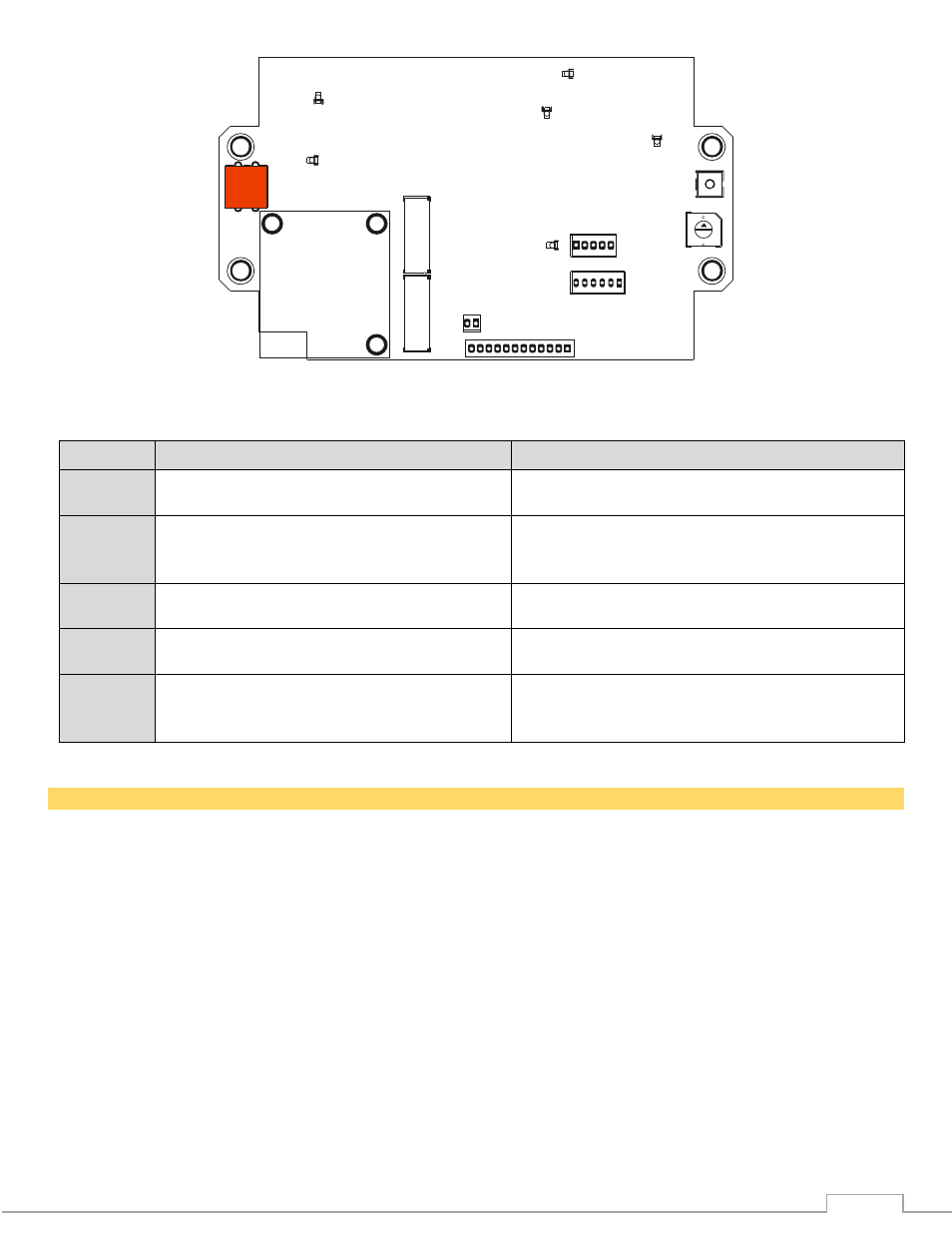

Figure 5: System LED Notations
