Installation Step 3: Program Settings
RF Receiver/Control Module Settings –
The SW1 switch is used for choosing the monitor programming. The SW4 switch has been factory

preset for position “E”. This setting allows for slow horizontal travel for the first 2-3 seconds before

switching to full speed. Changing to setting “8” allows full speed at all times (see Table 3, reference 4

on page 16).

This monitor has been equipped with mechanical hard-stops to prevent horizontal over-travel (see

Installation Step 4: System Programming). The hard-stops are permanently fixed by a stop screw and

milled slot in the base. Follow the programming steps to set all travel limits as prescribed in Installation

Step 4.

NOTE: The horizontal limits must be set to stop the motors at the location of the hard-stops.

E 8593-04 Copperhead RF – Blinking – Stow Indicator & Slow Start-up

8 8593-04 Copperhead RF – Fast Start-up

NOTE: When setting is changed power to the monitor must be cycled OFF/ON.

If it is set to a value that is not yet programmed, the status indicator LED, DS5 (see Figure 1), will blink

rapidly until a valid setting is selected AND power is cycled. If SW4 is set to a valid setting but not one

of the above positions, unpredictable results will occur.

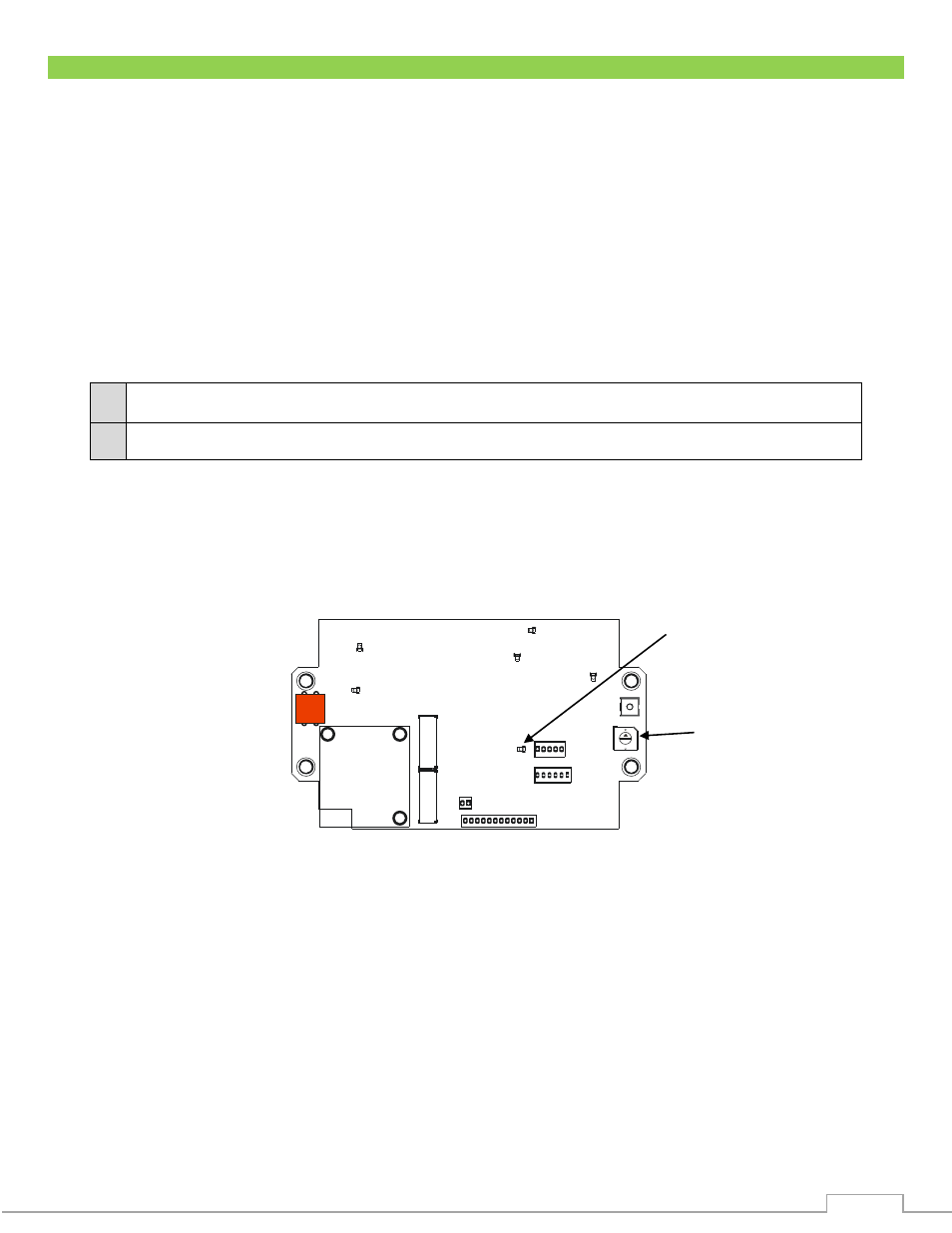

Figure 1: RF Receiver/Control Module Circuit Board

DS5

DS2

DS1

SW4

SW1

DS4

DS3

DS6

SW2

SW3

Status LED

SW4
