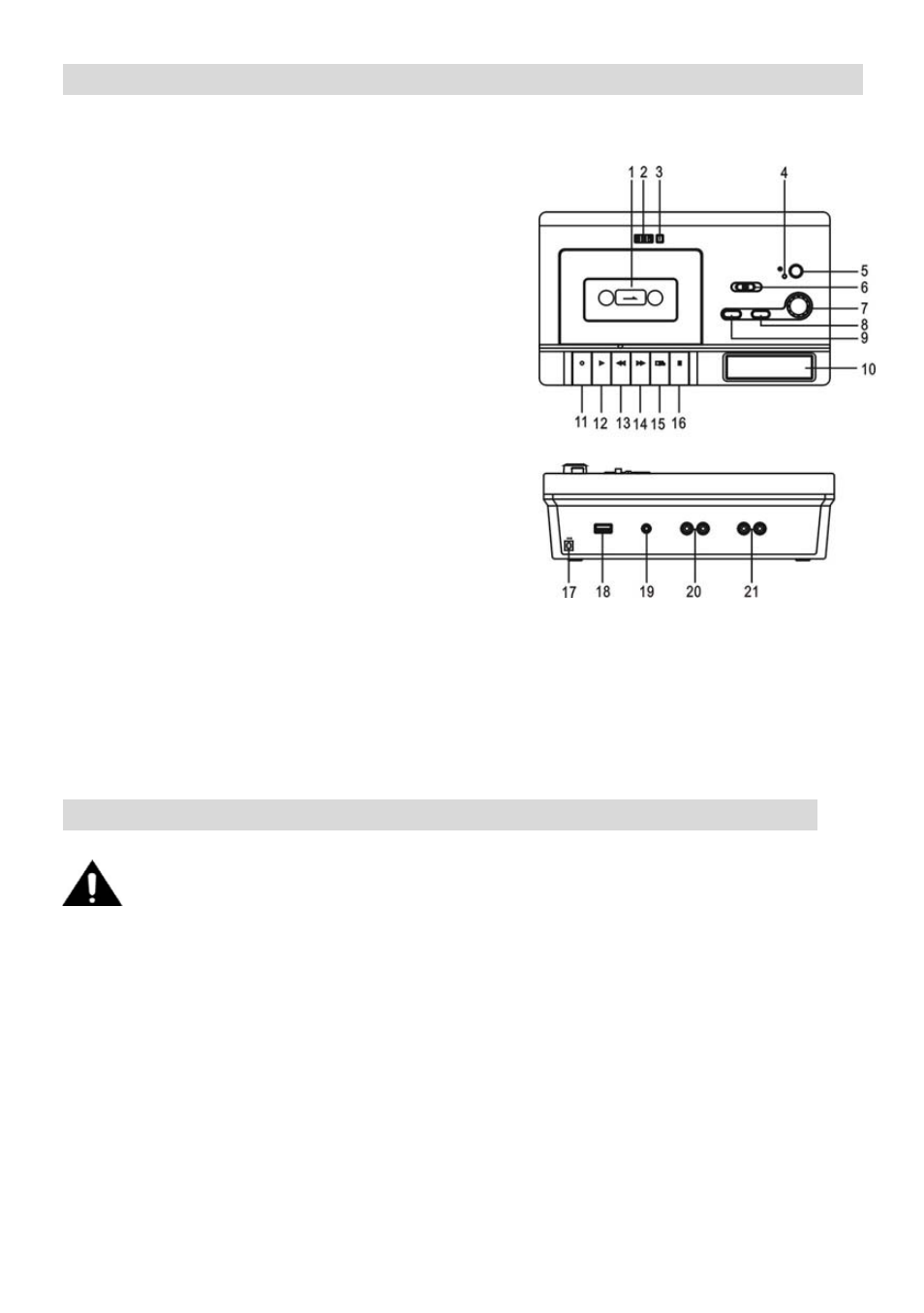

Unit Diagram & Component Names / Functions
1. Cassette Tape Door
2. Counter (Tape Revolution) Display
3. Counter Reset Button
4. Power LED Indicator
5. Power Button
6. Line In/Cassette Selection Switch
7. Recording [REC LEVEL] Level +/- Knob
8. Recording [REC] Cr02 Button
9. Play Cr02 Button
10. Recording Level Indicator Display
11. Record [REC] Button
12. Play [PLAY] Button
13. Rewind [REW] Button
14. Fast Forward [F.FWD] Button
15. Stop & Eject [STOP/EJ] Button
16. Pause [PAUSE] Button
17. 9 Volt DC Power Adapter [DC IN =9V] Connection
18. USB [USB] Connection 19. Speaker Monitor Volume [VOLUME] +/- Knob
20. Record to [REC INPUT] Connection 21. Play to [PLAY OUTPUT] Connection
Basic Operation
NOTE: Before plugging into the DC jack on the back of the unit; please make sure the
“POWER” button is shut off.
1. Connect the DC adapter to the power outlet and plug the other end to the DC jack
connection on the back of the unit.
NOTE: Before plugging DC power adaptor into the unit; please make sure the “POWER” button is off.
2. Press the POWER button to turn the unit on.
