Setup

Connection to a Computer

This product has two interfaces that can be used to receive printing data: a

serial port (RS232C) and a USB port (USB1.1). An optional internal Ethernet,

an IEEE1284 Parallel or Wireless LAN port can be added by your dealer.

With the exception of a wireless LAN connection, an interface cable is

necessary to connect the printer to a computer.

To connect the cable, proceed as follows:

1. Turn OFF both power switches of the printer and the computer.

2. Connect one end of the interface cable to the interface connector

on the back of the printer and secure it with locks or locking

screws, where available.

3. Connect the other end of the interface cable to the interface

connector on the computer and secure it with locks or locking

screws, where available.

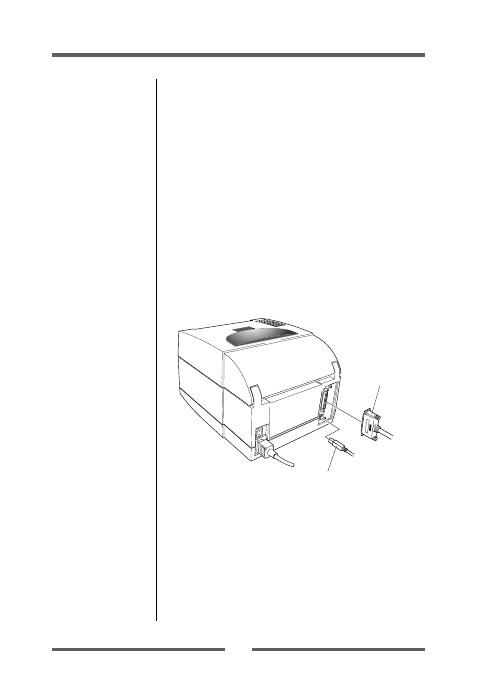

Serial Interface Cable

USB Interface Cable

Note:

If the optional Ethernet, an IEEE1284 Parallel or Wireless LAN port is
used, contact your Tally Dascom Systems dealer.
