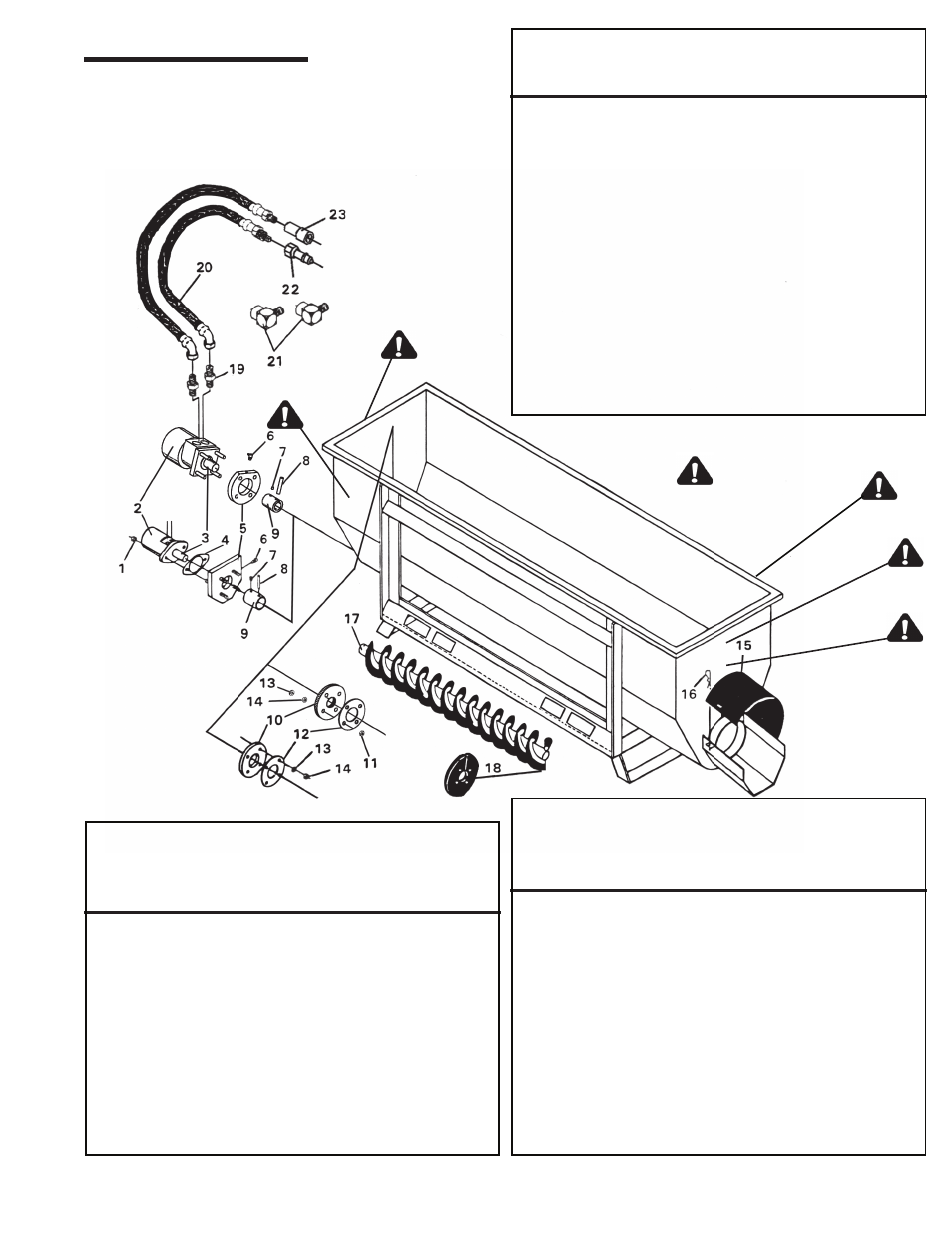

STANDARD HYDRAULIC MOTOR
MODELS 3110, 3112, AND 3120
REF. PART
NO. NO. DESCRIPTION QTY.
2 11059 Standard Hydraulic Motor 1
5 11058 Motor Mounting Plate 1
11061 Hub and Seal Kit
(Includes REF. NOS. 7-11) 1
7 Set Screw (5/16” x 19/64”) 1
8 Roll Pin (3/8” x 2”) 1
9 Collar 1
10 Motor Seal 1
11 Nut-Stover (3/8"-16) 4
12 11060 Seal Retainer 1
20 11053 Standard Motor Hose Assembly
(1/2” x 84”) 2
HEAVY SERVICE HYDRAULIC MOTOR
MODELS 2210, 2220, AND 2312
REF. PART
NO. NO. DESCRIPTION QTY.
1 11030 Nut (1/2”–13) 2
2 11032 Heavy Service Hydraulic Motor 1
4 11034 Motor Spacer 2
5 11035 Motor Mounting Plate 1
11022 Hub and Seal Kit
(Includes REF. NOS. 7-10) 1
7 Set Screw (5/16” x 19/64”) 1
8 Roll Pin (3/8” x 2”) 1
9 Collar 1
10 Motor Seal 2
12 11041 Seal Retainer 1
20 11054 Heavy Service Motor Hose Assembly
(1/2” x 84”) 2
SHARED PARTS BY ALL MODELS
REF. PART
NO. NO. DESCRIPTION QTY.
3 11033 Key 1
6 11036 90° Grease Zerk (1/4”–28) 1
13 11042 Lock Washer (3/8") 4
14 11043 Nut (3/8”–16) 4
15 11044 Splash Shield 1
16 11045 Hair Pin 1
17 11046 Discharge Auger Assembly 1
11047 Mixing Auger Assembly 1
18 11049 Discharge Replacement Auger Flighting 1
11050 Mixing Replacement Auger Flighting 1
19 11052 Straight Adapter 8MP-8MJ 2
21 11055 Elbow 8MP-8FP (for connecting to
skid-steer auxiliary hydraulics, if
necessary) 2
22 11083 Male Quick Coupler 1
23 11184 Female Quick Coupler 1
