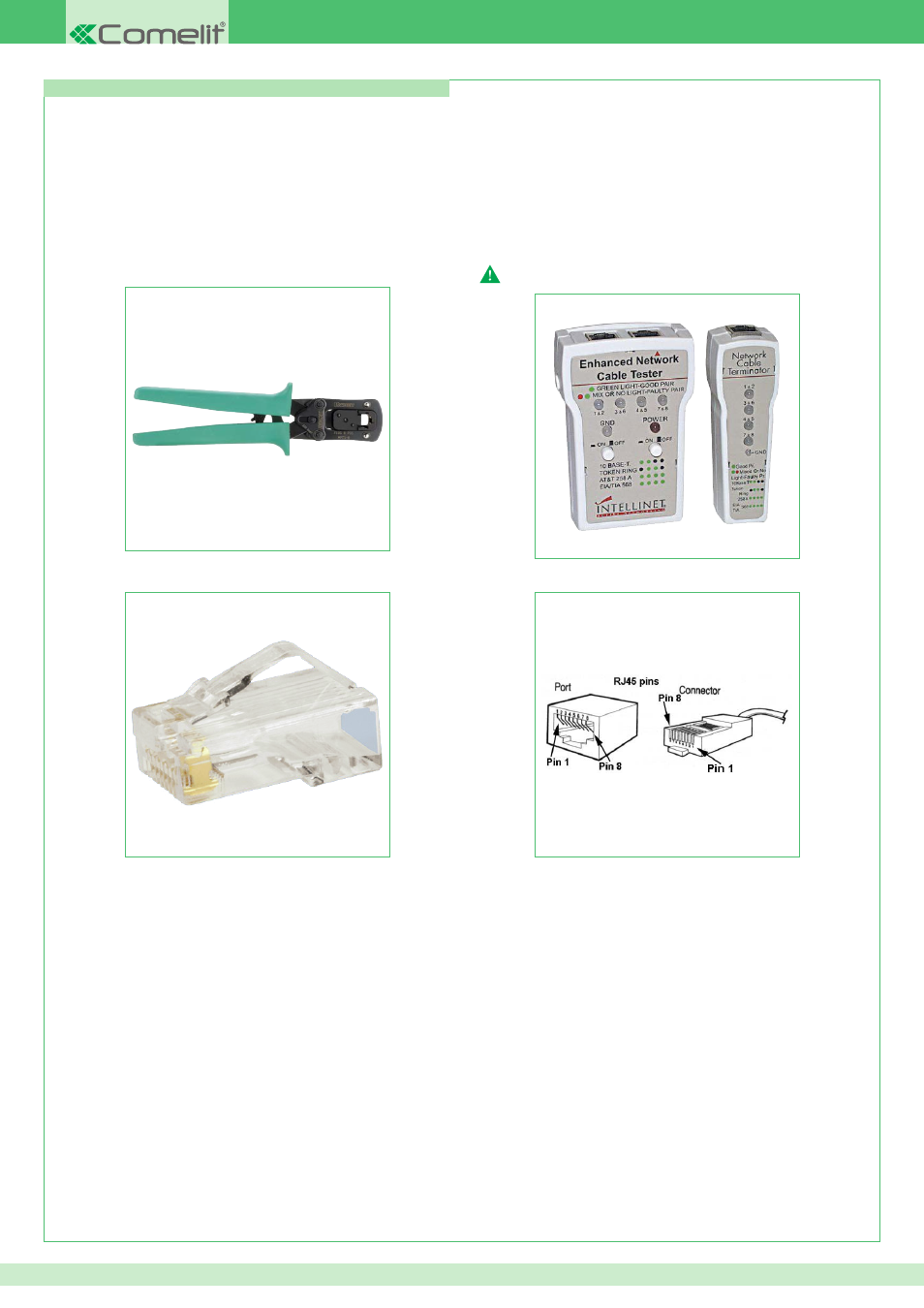

Guide to fitting a UTP / STP RJ45 Direct network cable
The recommended cables are:
• UTP (Unshielded Twisted Pair):
not protected from electromagnetic interference, maximum length 100 metres.
We recommend the use of a Panduit cable code NUL5C04BU-CE.
• STP (Shielded Twisted Pair):
similar to the UTP but with a metal sheath.
The UTP and STP can fall into various categories.
Category 5 (CAT 5) cables or greater must be used for the ViP system.
• Crimping pliers 6-P 8-P.
We recommend using 8-pole Panduit pliers code MPT5-8A.
• Tester for RJ45 cables.
The tester must only be used while the system is off
The tools required for fitting are as follows:
• 2 RJ45 connectors for each section of cable.
We recommend using Panduit connectors code MP588-L.
