Upgrading The Computer
Upgrading the Hard Disk Drive 6 - 5
6
4. Grip the tab and slide the hard disk in the direction of arrow .
5. Lift the hard disk out of the bay .
6. Remove the screw(s) and the adhesive cover .
7. Reverse the process to install a new hard disk drive (do not forget to replace all the
screws and covers).
4

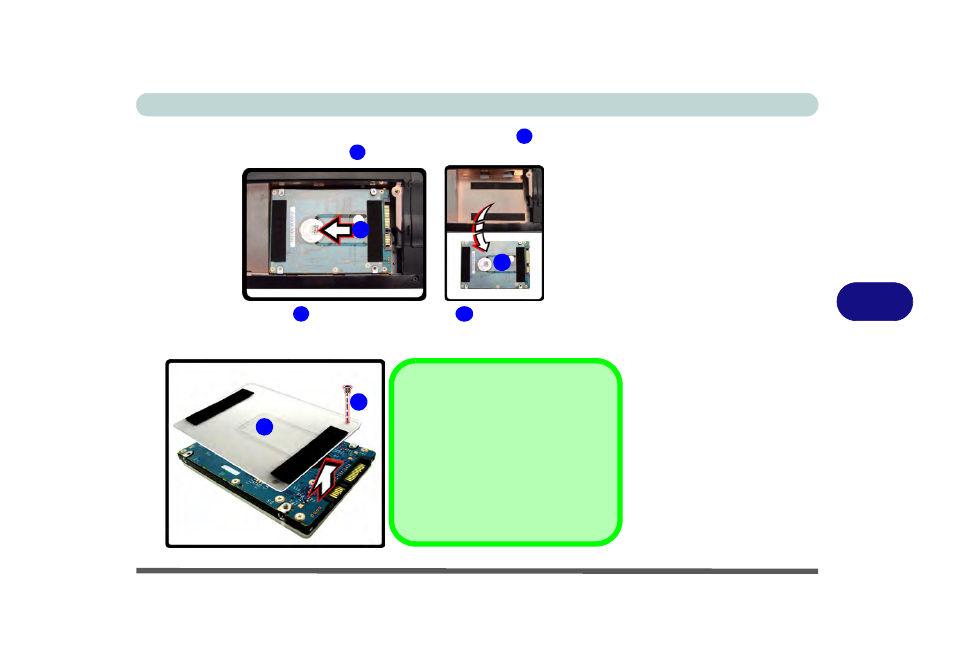

Figure 6 - 3
HDD Assembly
Removal
Figure 6 - 4
HDD Cover
Removal
5
4
5
6 7
7

Hard Disk Screws & Cover
The hard disks and covers pictured
here may appear slightly different from
your model design (these designs are
subject to change and upgrade without
notice). Pay careful attention to the
screws (if included) and cover orienta-
tion.
